6
Introduction

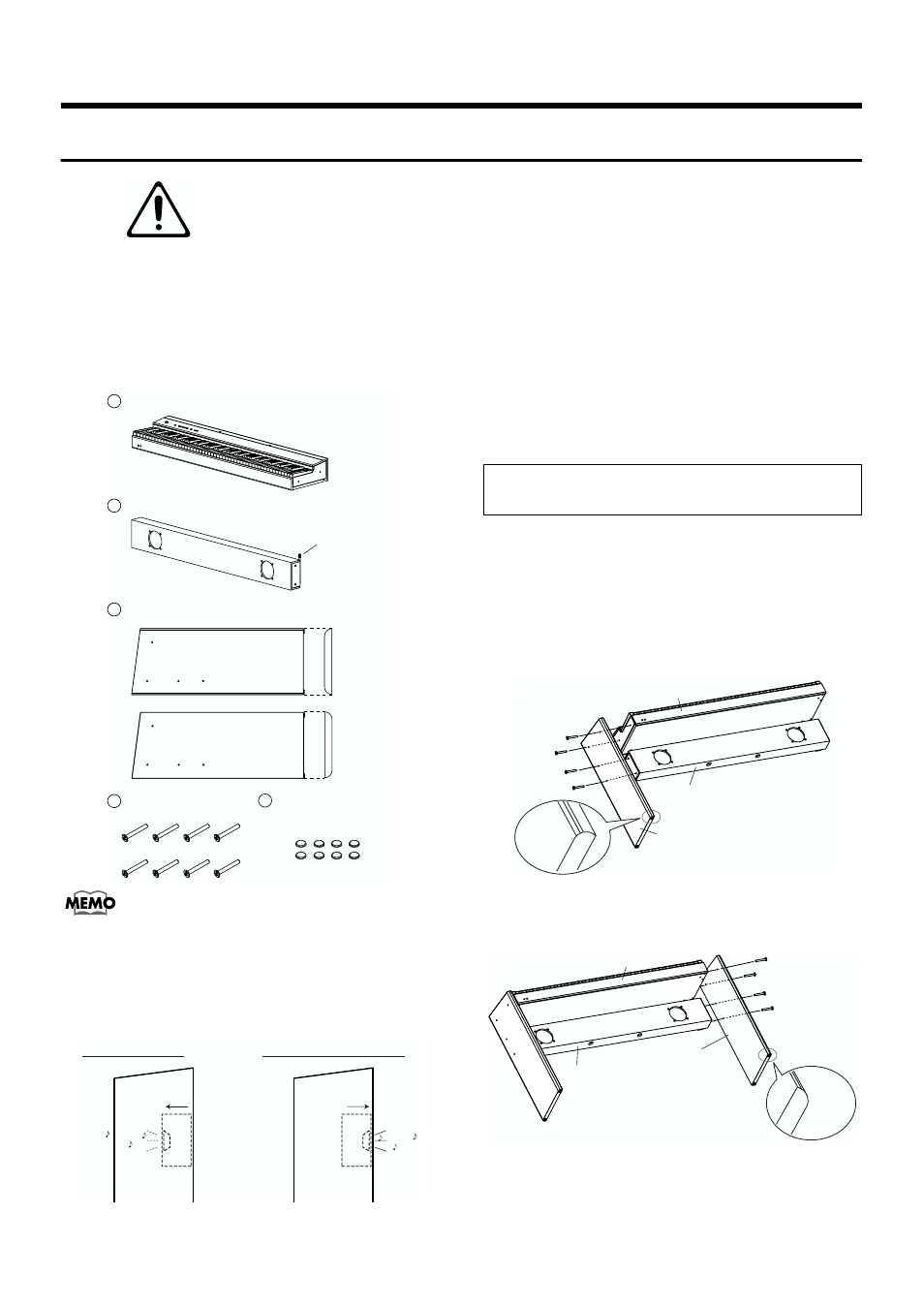

Assembling the F-90
Make sure that another person is on hand to help with the assembly and setup.
To move the piano, lift it carefully—all the while keeping it level. Be very careful, when you
assemble and move the piano, to make sure that you do not drop it on your hands or feet.
Always carry out this procedure with the F-90 lying horizontally, with the rear panel facing down.
■ Check the Parts
Before you begin assembling the stand, check that all the
parts were supplied.
You will also need to have a Phillips screwdriver.
fig.st1
The speaker box can also be installed so that it faces toward
the rear instead of toward the front. Having the speaker box
face out the rear of the instrument allows the speakers to be
directed toward listeners when the back of the instrument
faces the audience.
fig.stsp
■ Assembly Procedure
• At first, assemble the entire stand in a temporary
fashion, without really tightening the screws.
Then, after checking the overall alignment of the boards
(and gently shifting certain parts where necessary), go
around and tightly fasten each of the screws.
• Be careful when assembling the F-90, so as to avoid
scratching the side panels.
When securing the screws, lay the entire unit sideways
with the rear side of the F-90 at the bottom.
1. Tighten the screws on one of the side panels to
secure that side panel the F-90 and speaker box
(four screws).
Install so that the speaker cable at the rear of the speaker
box extends to the right side (the side where the F-90’s
[Power] Switch is located).
fig.st02-2
2. Tighten the screws on the other side panel to
secure it the F-90 and speaker box (four screws).
fig.st02-2
1 F-90
2 Speaker box
3 Side panel right and left
4 Screws x 8
Speaker cable
(Left)
5 Cap x 8
(and some spare caps)
(Right)
Front
Rear
Rear
Front
Cross section
Front Rear Front Rear
Speaker
box
Speaker
box
Normal direction When facing to the rear
Speaker box
Side panel
(Left)
F-90
Side with
rounded
corners
facing out
Screws
Side panel
(Right)
F-90
Side with
rounded
corners
facing out
Speaker box
Screws
