EP-200 S ERIES P UMP I NSTALLATION , O PERATION AND S ERVICE M ANUAL
14

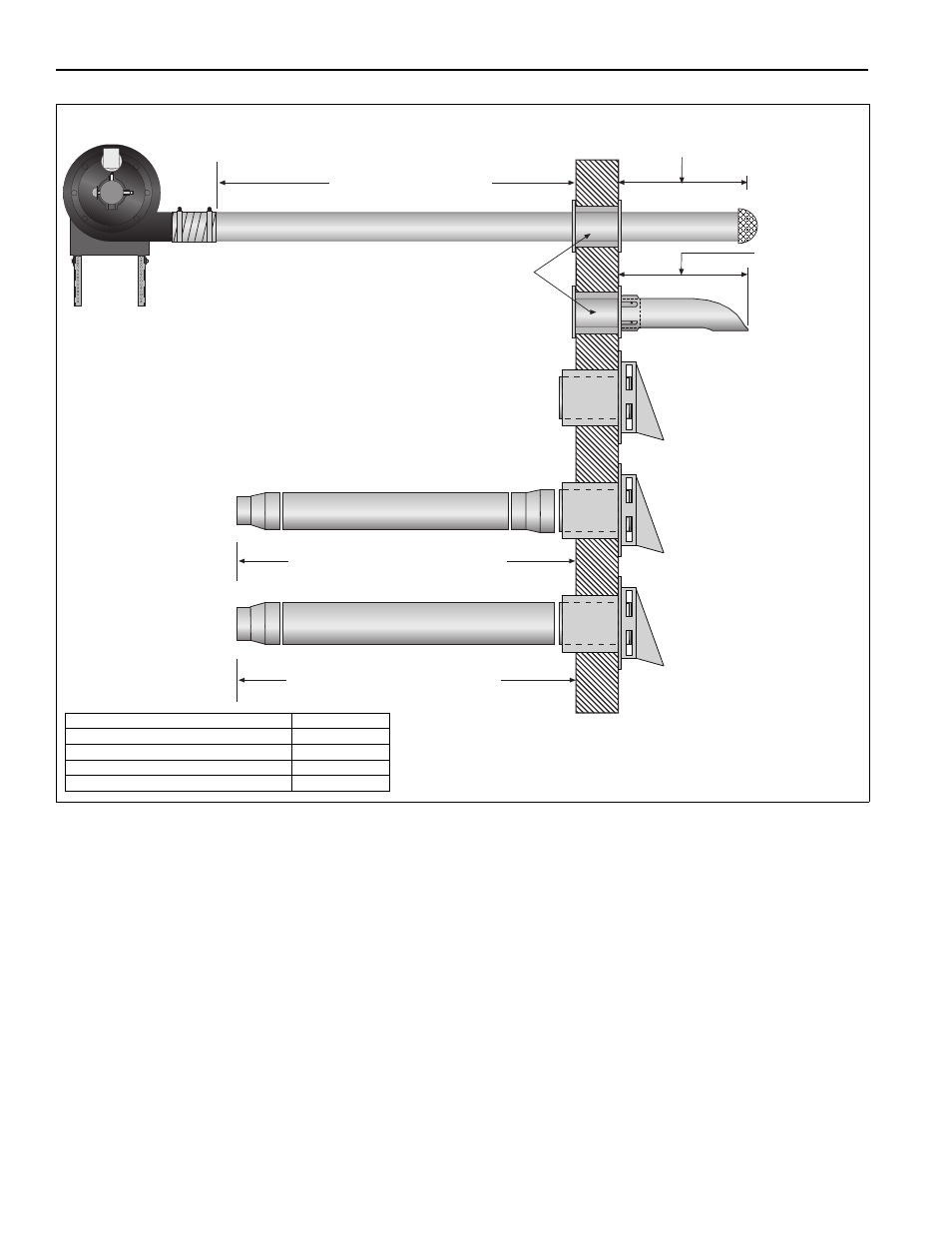

FIGURE 13: Side Wall Venting
10' (3 m)
Maximum and No Elbows
25' (7.5 m) and 3 Elbows Maximum
50' (15 m) and 3 Elbows Maximum
18" min.-40" max
46 cm min.-
101 cm max
Approved Thimble
(If Applicable)
4" (10 cm)
Vent Terminal
Tjernlund VH1-6"
(15 cm)
Vent Terminal
Bird Screen
(included w/
Pump
Package)
5" (12.7 cm) Single Wall Pipe
6" (152mm) Single Wall Pipe
5" to 4" (12.7 to 10 cm) Reducer
6" to 4" (15 to 10 cm) Reducer
Tjernlund VH1-6"
(15 cm)
Vent Terminal
18" min.-40" max
46 cm min.-
101 cm max
4" (10 cm) Single Wall Pipe/Tube
Tjernlund VH1-6"
(15 cm)
Vent Terminal
Description Part Number
4" (10 cm) Vent Terminal 02537801
Tjernlund VH1-6" (15 cm) Vent Terminal 90502100
Band Clamp 6" (15 cm) 91913703
Thimble 90505600
