EP-200 S ERIES P UMP I NSTALLATION , O PERATION AND S ERVICE M ANUAL
8

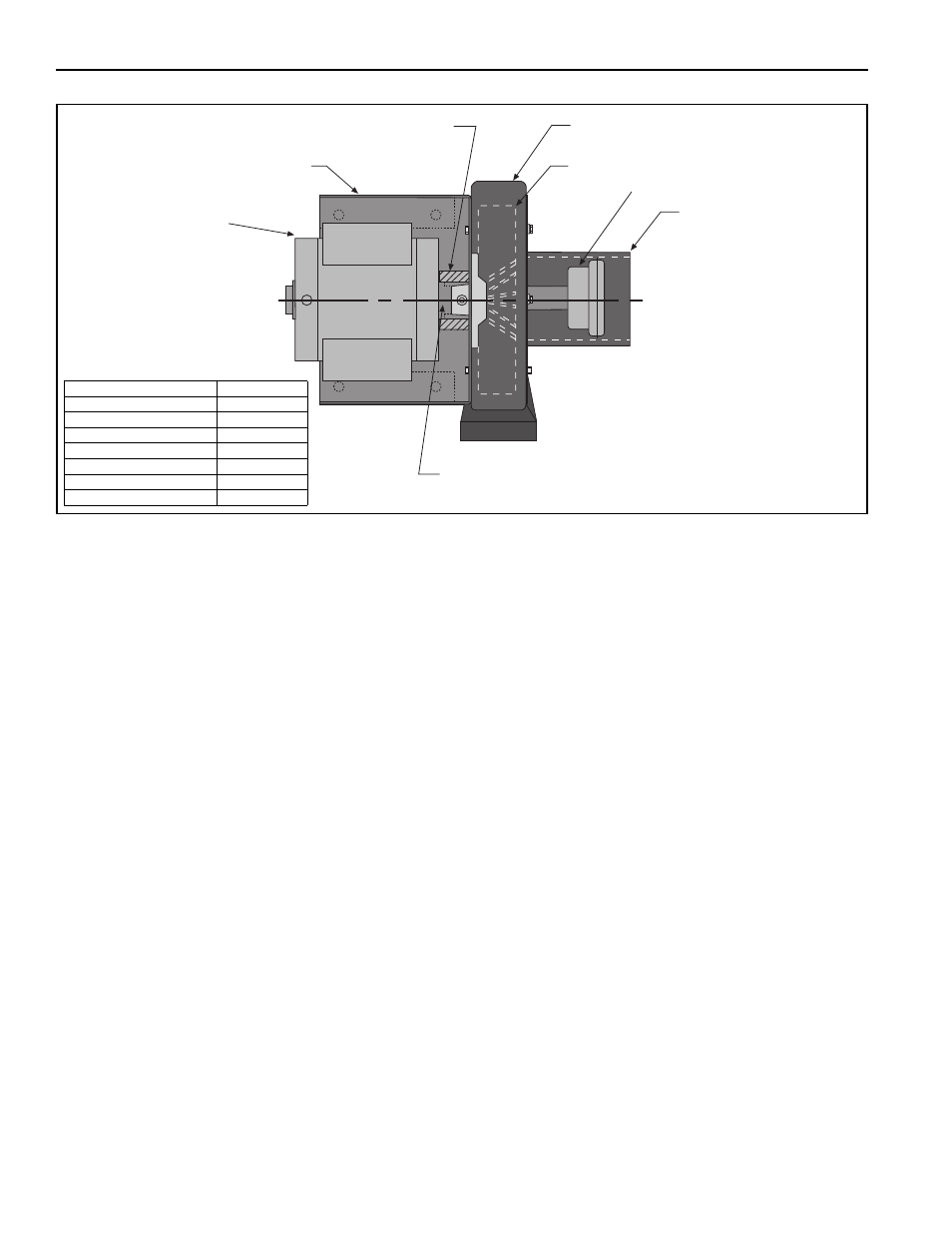

FIGURE 4: Motor Shaft Seal Assembly
5.1.4 Install Motor Shaft Seal
• Separate the motor shaft seal at the pre-cut score
line.
• Wrap the shaft seal around the motor shaft hub
as shown on Page 8, Figure 4.
• Secure the shaft seal in position with the adhe-
sive strip provided.
Motor Shaft Seal
EP-201 Motor
or
EP-203 Motor
Pump Frame
Motor Shaft Hub
Impeller
Inlet Plate Assembly
Pump Scroll
Pressure Switch
Description Part Number
EP-201 Motor 90604500
EP-203 Motor 90604501
Motor Shaft Seal 02757500
Pump Scroll 01394400
Impeller 01394602
Inlet Plate Assembly 01327400
Pressure Switch 90430600
