7

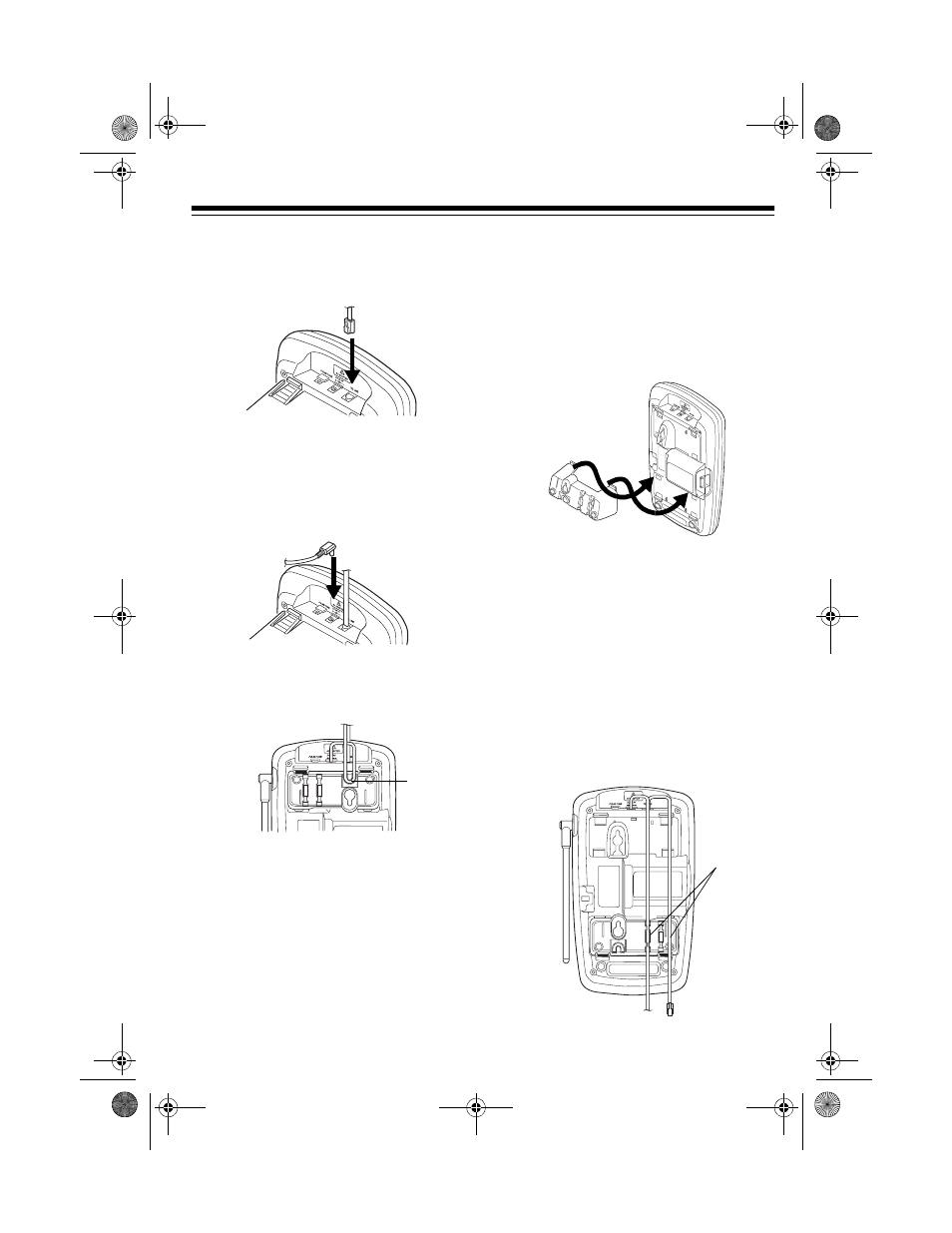

2. Plug one end of the supplied long
modular cord into the TEL LINE jack
on the back of the base.
3. Plug the modular cord’s other end
into a modular phone line jack.
4. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack on
the back of the base.
5. Route the adapter’s cord through
the strain relief slot on the bottom of
the base.
6. Plug the adapter into a standard AC
outlet.
7. Lift the base’s antenna to a vertical
position.
On a Wall Plate or Wall
1. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the clip
slots.
2. Plug one end of the supplied short
modular cord into the TEL LINE jack
on the back of the base as in “On a
Desk,” Step 2.
3. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
(see “On a Desk” on Page 6, Step
4).
4. Route the adapter and modular
cords through the grooves on the
bottom of the base.
Strain
Relief
Slot
Grooves
