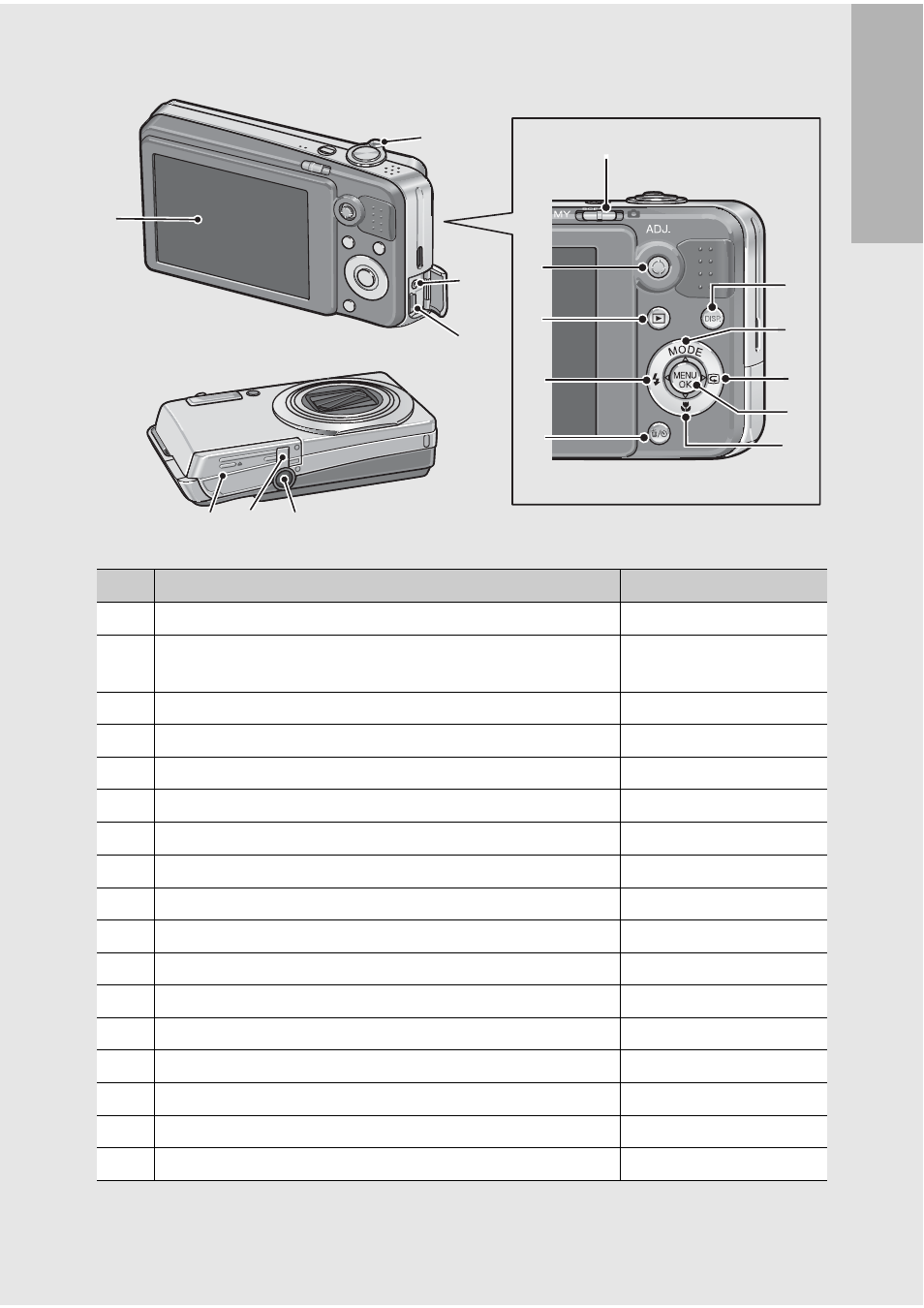

Rear View
* The MODE button is only available during scene mode or My Settings
mode.
Item Name Refer to
1 LCD Monitor P.17
2 Zoom lever z (Telephoto)/Z (Wide-angle)
8 (Enlarged View)/9 (Thumbnail Display)
P.34, 49, 51
3 Mode Selector P.16, 38, 39
4 ADJ. Button P.62
5 6 (Playback) Button P.47
6 DISP. Button P.56
7 !/MODE Button
*
P.38, 39
8 $/Q (Quick Review) Button P.46
9 MENU/OK Button P.68, 105, 133
10 "/N (Macro) Button P.35
11 #/F (Flash) Button P.36
12 D (Delete)/t (Self-timer) Button P.52, 45
13 AV Output Terminal P.124
14 USB Terminal P.127, 169
15 Tripod Screw Hole P.183
16 Battery/Card Cover P.24,
17 Power (DC input) Cable Cover -
1
13
14
7
6
8
9
11
12
10
4
5
3
15 16
2
17
