Renesas H8SX/1653 User Manual
Page 23
12
2.6

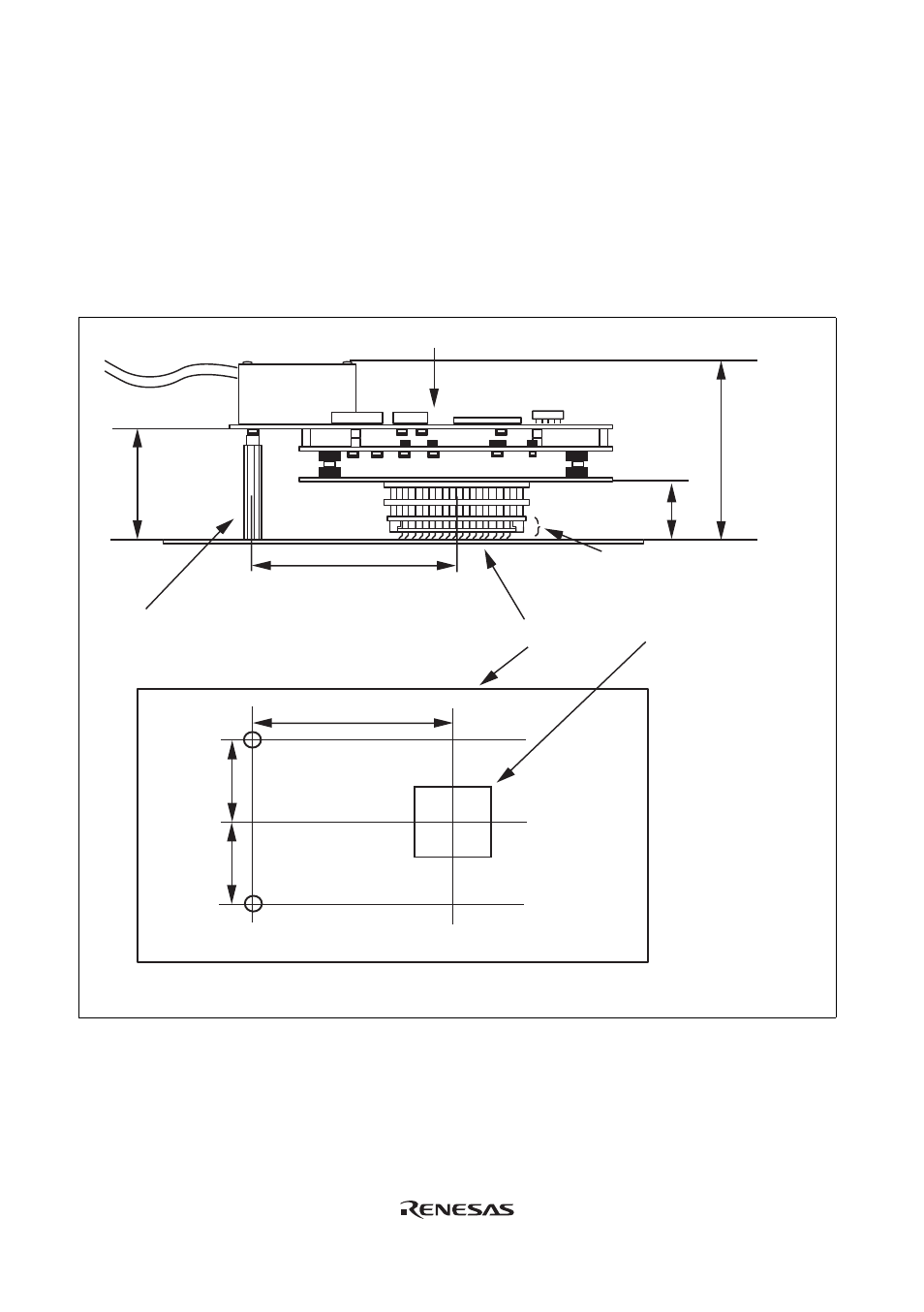

Resulting Dimensions after Connecting User System Interface Board
The resulting dimensions, after connecting the user system interface board to the user system, are
shown in figure 7.
Unit: mm
Tolerance: ±1.0 mm
35.6
16.0
57.6
User system
Evaluation chip board
IC socket
(IC149-120-043-B51
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)
56.5
56.5
45.0
45.0
Spacer (
φ
5.8)
Figure 7 Resulting Dimensions after Connecting User System Interface Board
