Chapter 6. Troubleshooting
6.1 Flowchart to Remedy the Troubles
Figure 6.1 shows the flowchart to remedy the troubles from when power to the emulator is activated
until the emulator debugger starts up. Check this while the target system is disconnected. For the latest
FAQs, visit the following URL.
http://www.renesas.com/eng/products/mpumcu/toolhp/faq/m16c/m16c_e.htm

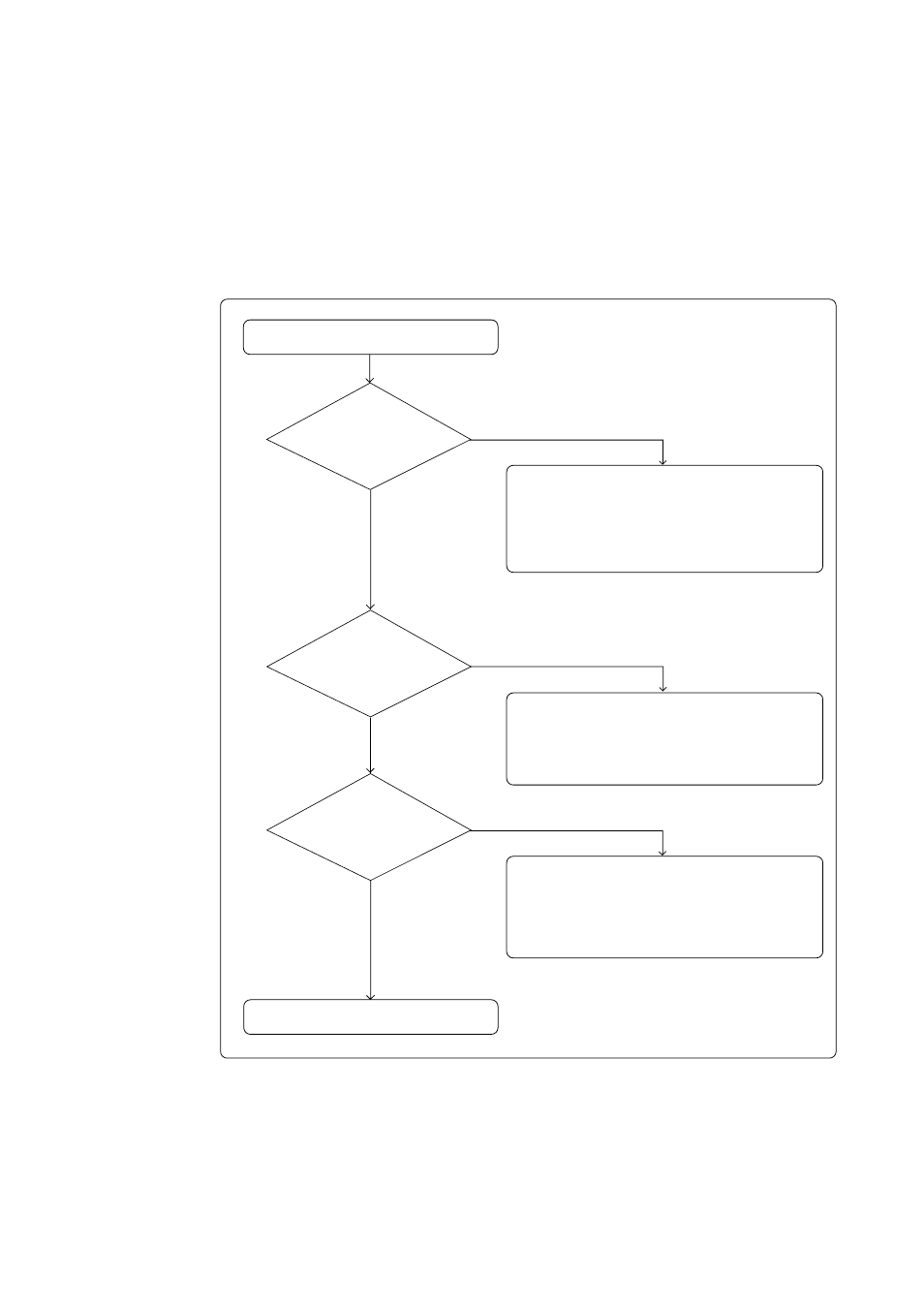

Figure 6.1 Flowchart to remedy the troubles
Not normal
Normal
Not normal/Error displayed
Normal
Not normal/Error displayed
No
Turning on the power of PC4701
Program window of emulator debugger displayed
Init dialog box of emulator
debugger displayed
1. Check emulator system connections.
See, "3.4 Connecting the PC4701 and Emulation Pod"
(page 27).
2. Redownload the firmware.
See "4.2 Downloading Firmware" (page 34).
3. Restart the PC4701 system.
Front panel LED of PC4701
1. Check the operating environment etc. of the emulator
debugger.
See the user's manual (online manual) of the emulator
debugger.
2. Reinstall the emulator debugger.
See "6.2 (2) Errors Occur When Starting Up the Emulator
Debugger (When the target system is connected)" (page 44).
See "6.2 (3) Errors Occur When Starting Up the Emulator
Debugger (When the target system is not connected)" (page
45).
Error displayed
