2.3 Name of Each Part
(1) System Configuration

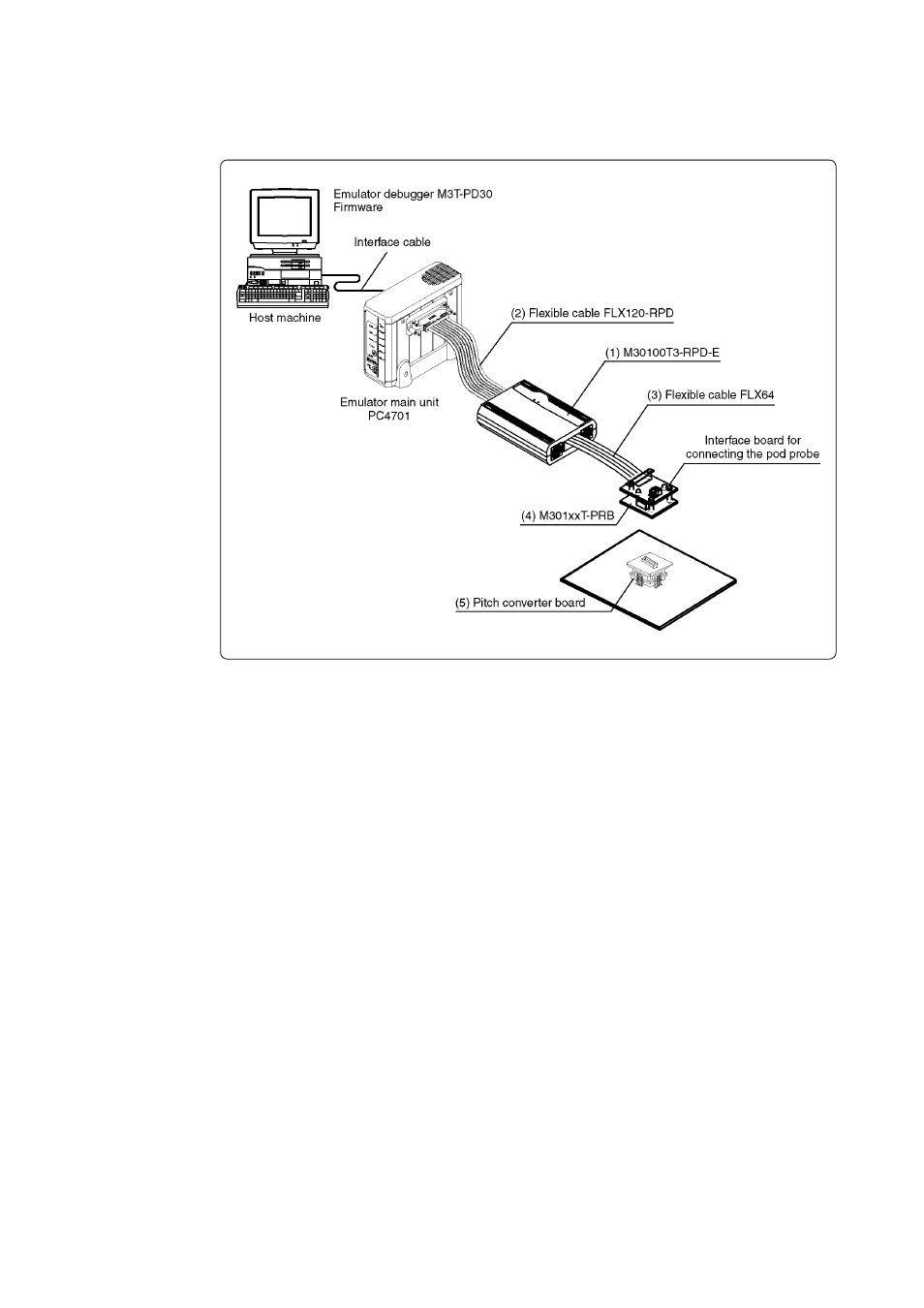

Figure 2.1 System configuration
(1) to (3) in Figure 2.1 are included in this product package.
(1) Emulation pod main unit M30100T3-RPD-E
This emulation pod contains emulation memory and circuit to feature the debugging functions.
(2) Flexible cable FLX120-RPD
This 120-pin flexible cable connects the PC4701 emulator and the emulation pod.
(3) Flexible cable FLX64
This 64-pin flexible cable connects the emulation pod and the pod probe.
(4) Pod probe
An evaluation MCU is mounted on it.
(5) Pitch converter board
This is a pitch converter board for connecting to the target system.
For details, refer to the user's manual of the pod probe.
