Chapter 3. Setting Up
To use this emulation pod with your application system, it is necessary to make a setting as follows.
Change the setting after removing the upper cover.
• Change the oscillation frequency in the emulation pod.
3.1 Removing and Closing the Upper Cover
(1) To open the upper cover, remove the four screws of both sides of this product and lift off the upper
cover (see Figure 3.1).
(2) To close the upper cover, attach the upper cover and secure the four screws of both sides of this
product.

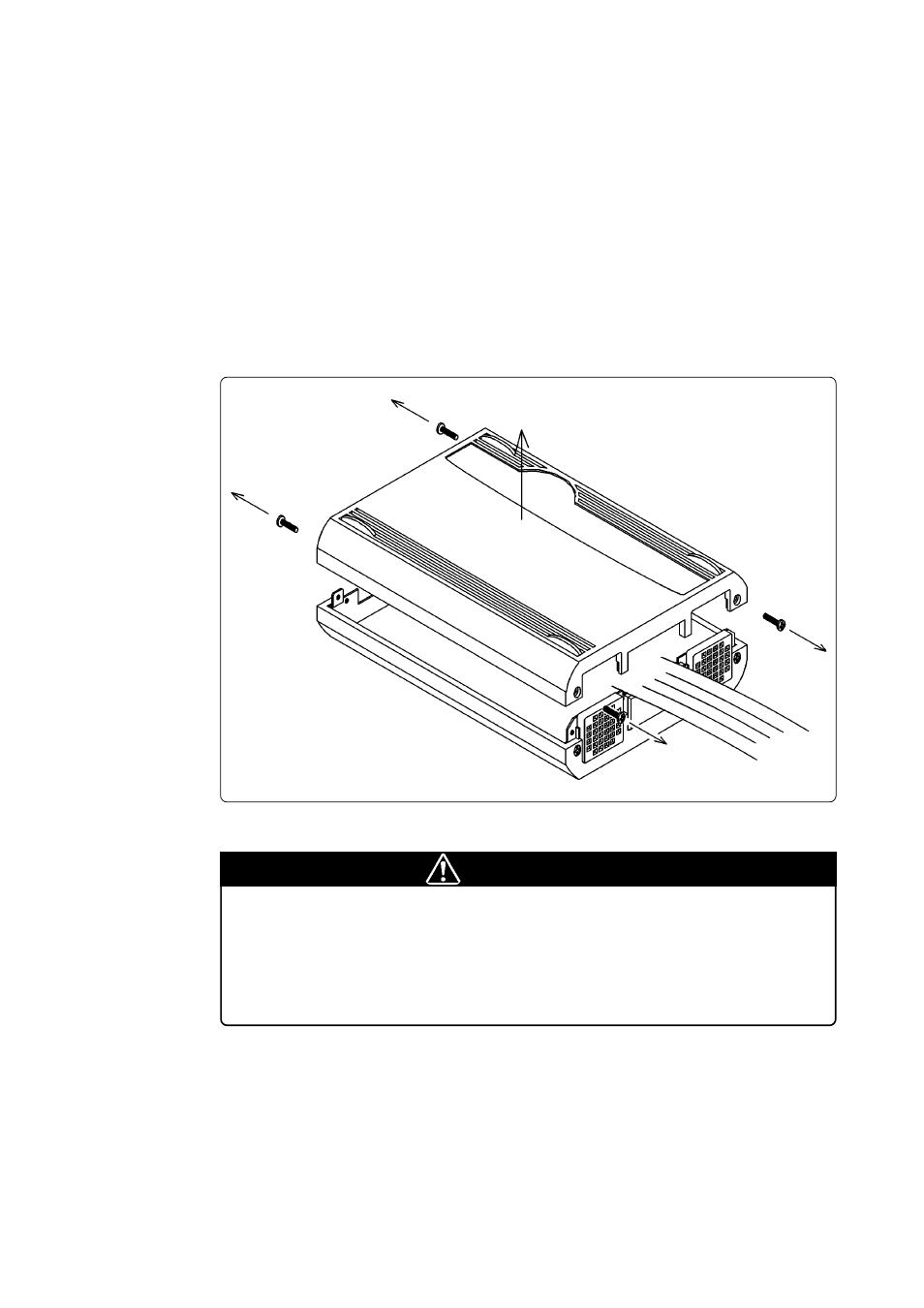

Figure 3.1 Removing the upper cover
CAUTION
When Removing and Closing the Upper Cover:
• Always shut OFF power when removing the upper cover or setting the switches.
• Do not touch the connector pins of the emulator main unit and pod probe. Static
electricity may damage the internal circuits.
