(3) LED Display When the PC4701 Starts Up Normally
After the emulator starts up, check the status of the LEDs on the front panel to see whether emulation
pod operation is enabled or not. Figure 4.1 shows front panel LED lighting status when the emulator
is turned ON.

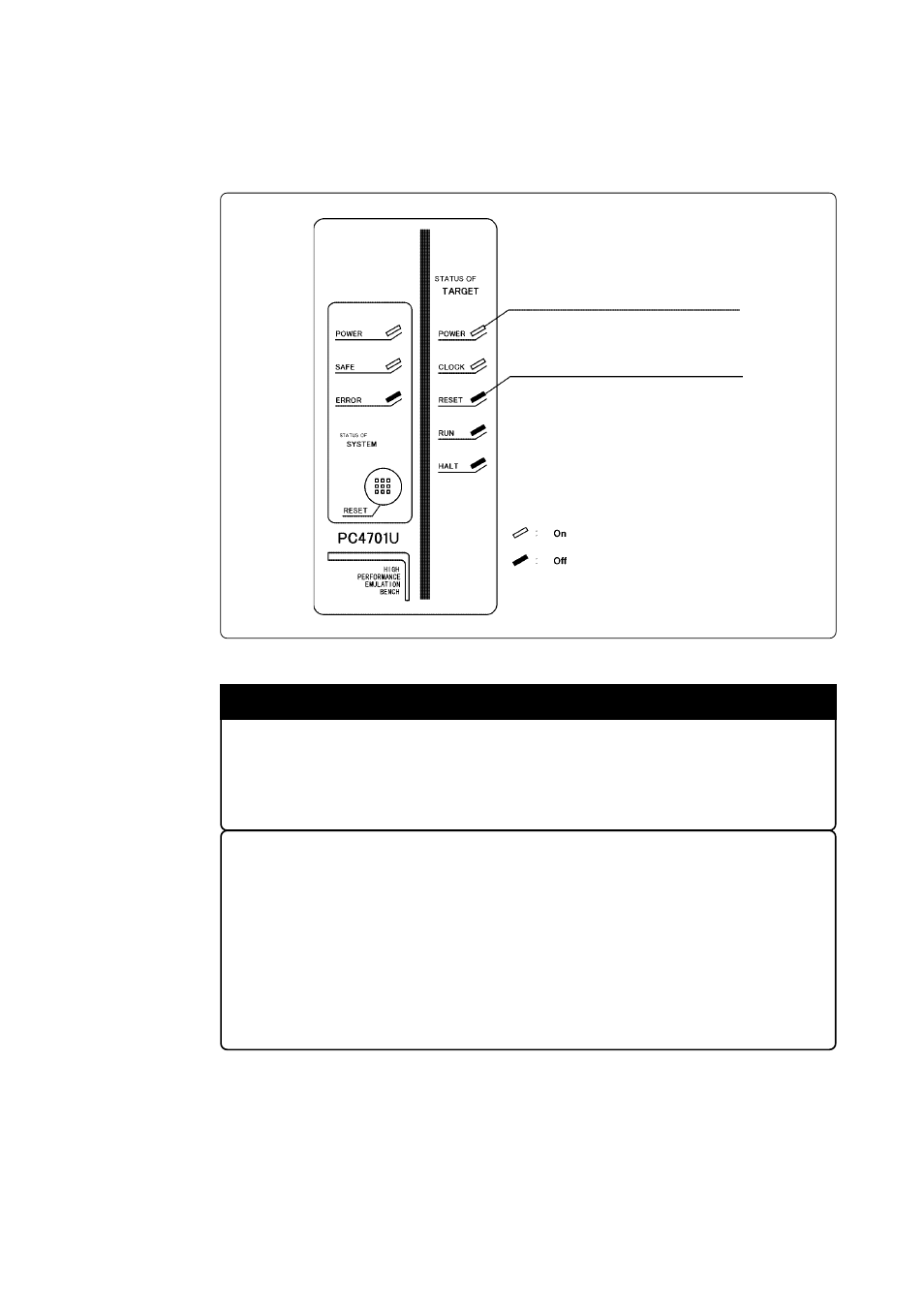

Figure 4.1 LED display when the power turned on
IMPORTANT
Note on the Target Status POWER LED:
• If the MCU has two or more Vcc terminals, the LED does not light unless power is
supplied to all the terminals.
• When this does not light, check the power supply
of the target system.
• Check that power is supplied to all the terminals.
• This does not light when the target system is not
connected.
• When this lights, check the reset pin of the target
system.
Note on CLOCK LED:
• If CLOCK LED does not turn on, check the following points:
(1) Immediately after starting PC4701 (before starting the emulator debugger)
--> Check if the oscillation circuit in the emulation pod oscillates normally.
(2) After starting the emulator debugger (after setting the Init dialog box)
--> Check the oscillation circuit selected in the Init dialog box oscillates
normally.
