5/32

FV-L030B1
User’s Guide Rev. 1.01

2 Camera Output Timing Charts

2.1

Normal Mode

(Setting 10H: 1XX0XXXX)


※Clock Speed: 36.8181 MHz(Normal)、24.5454 MHz(x2/3)、12.2727 MHz(x1/3)



2.1.1

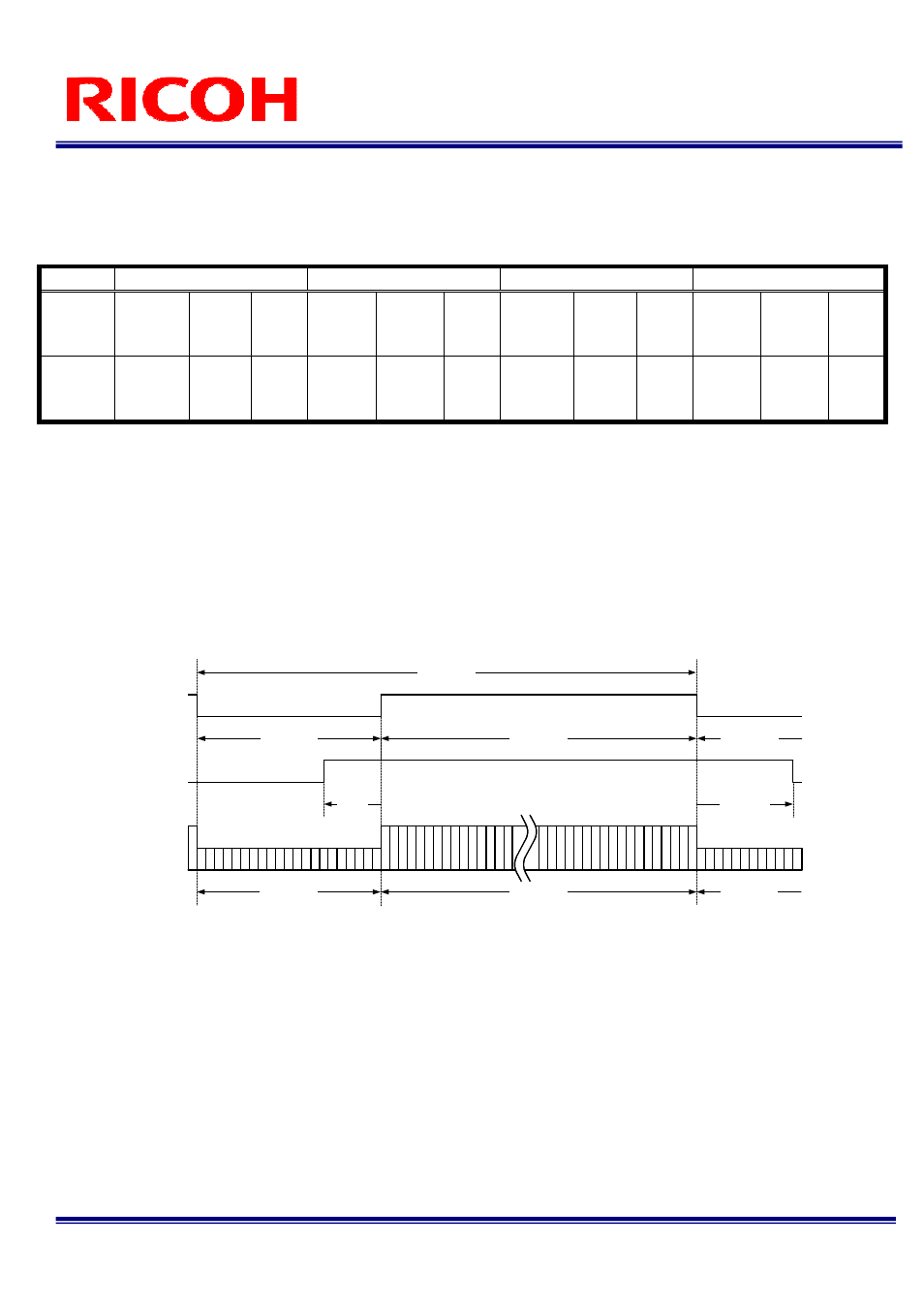

Horizontal Timing

1 CLK = 81.4816 ns at 30fps
1 CLK = 40.7408 ns at 60fps
1 CLK = 27.1605 ns at 90fps














Normal Full Scanning

Partial Full Scanning

1/2 Partial Scanning

1/4 Partial Scanning

Clock

Speed

(MHz)

Normal

x2/3

x1/3

Normal

x2/3

x1/3

Normal

x2/3

x1/3

Normal

x2/3

x1/3

Frame

Rate

(Hz)

89.9

(90)

59.4

(60)

29.9

(30)

94.4

62.9

31.5

180.1

120.1

60.1

360.3

240.2

120.1

132 CLK

648 CLK

Video out

LVAL

DVAL

Horizontal blanking

780 CLK

One horizontal (1H)

648 CLK

132 CLK

132 CLK

Video output

132 CLK

93 CLK

39

CLK

FVAL
