9

Fasten the user system interface cable head to the IC socket for an FP-80A package on the user
system with the four screws (M2

x

12 mm; with four flat washers) provided. Each screw should

be tightened a little at a time, alternating between screws on opposing corners. Take special care,
such as manually securing the IC socket soldered area, to prevent the soldered IC socket from
being damaged by overtightening the screws or twisting the components.

IC socket
(IC149-080-017-B5
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)

Screws (M2 x 12 mm)
with flat washers

Cable head

User system

Pin 1

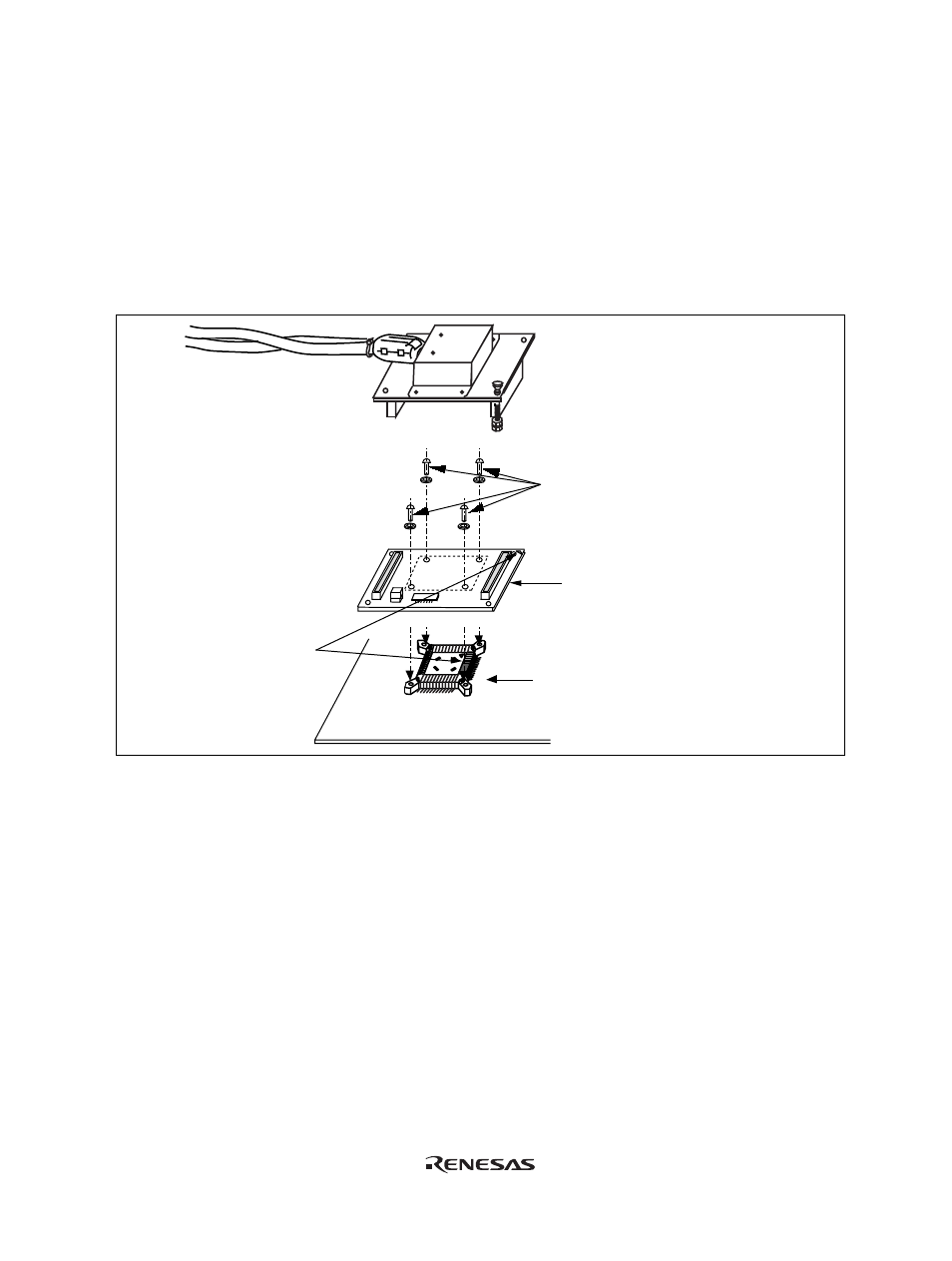

Figure 4 Connecting User System Interface Cable to User System
