6
PD-6
(Pad)

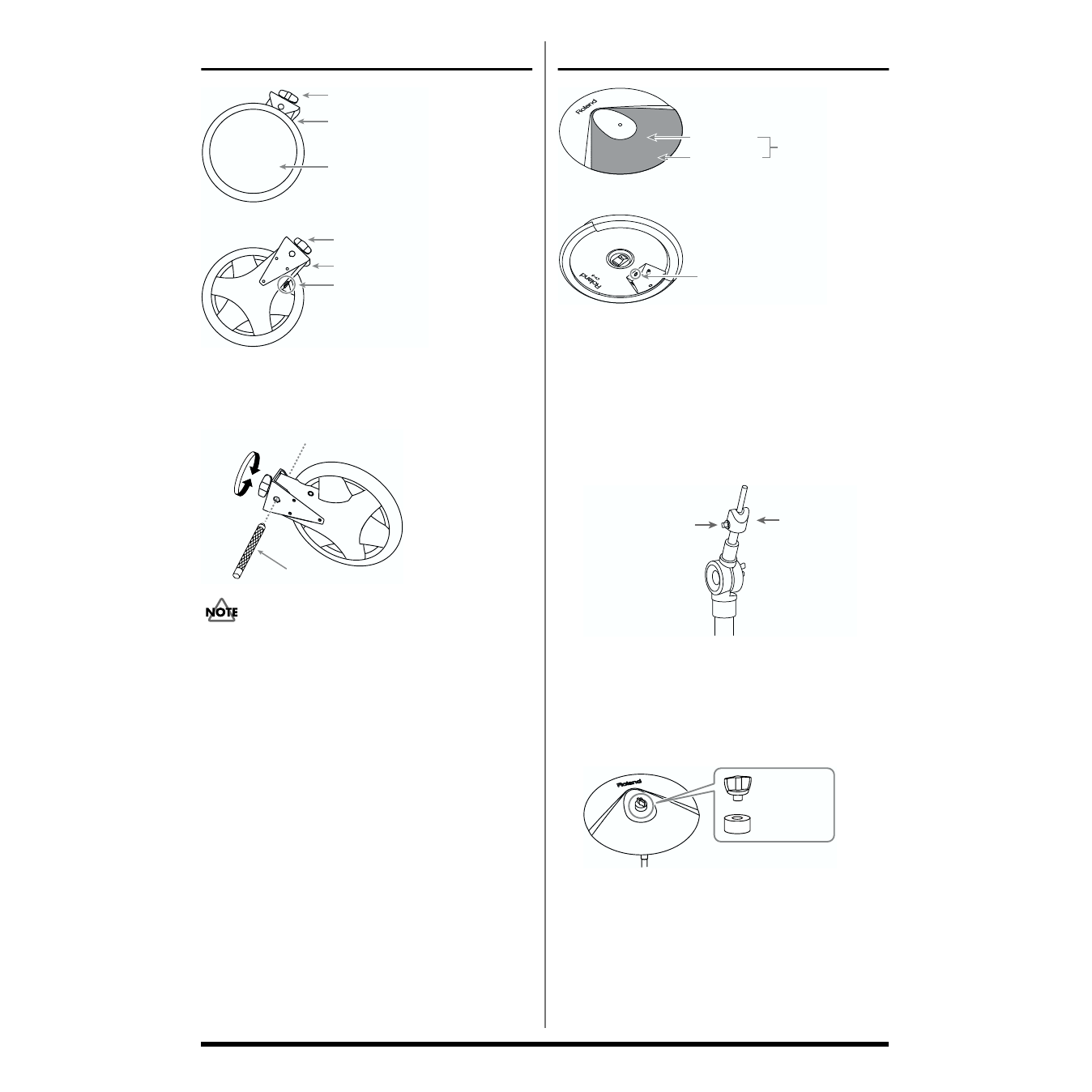

Attaching the PD-6 to a Stand
Pass the rod through the pipe that is inside the holder.
When attaching the PD-6s to the mounts, be sure to tighten the
stand fixing screws securely. If any of them remain loose, the
pad could fall off.
Specifications
PD-6: Pad
Pad Size: 8.5 inches
Trigger: 1 (Head)
Dimensions: 221 (W) x 274 (D) x 64 (H) mm
8-3/4 (W) x 10-13/16 (D) x 2-9/16 (H) inches
Weight: 1.2 kg / 2 lbs 11 oz
CY-6
(Cymbal Pad)
Attaching the CY-6 to a Cymbal
Mount
1. Use the included tuning key to tighten the stopper
bolt.
The stopper keeps the cymbal pad from turning, and
prevents the cables from catching or getting tangled on the
stand.
2. Attach the CY-6 so the unit is oriented as shown in
the diagram.
3. Tighten the wing nut to obtain the desired
movement.
Use the included felt washer and the wing nut.
Specifications
CY-6: Cymbal Pad
Pad Size: 12 inches
Triggers: 2 (Bow, Edge)
Dimensions: 290 (W) x 295 (D) x 45 (H) mm
11-7/16 (W) x 11-5/8 (D) x 1-13/16 (H) inches
Weight: 0.6 kg / 1 lb 6 oz
Stand Fixing Screw
Stand Fixing Screw
Head
Output Jack
Holder
Holder
Tighten
Loosen
Rod
Edge Portion
Pad Face
Output Jack
Bow Portion
Stopper
(Be sure to
orient it correctly)
Tighten the bolt with
the included tuning key.
Wing nut
Felt washer
