Names of Things and What They Do

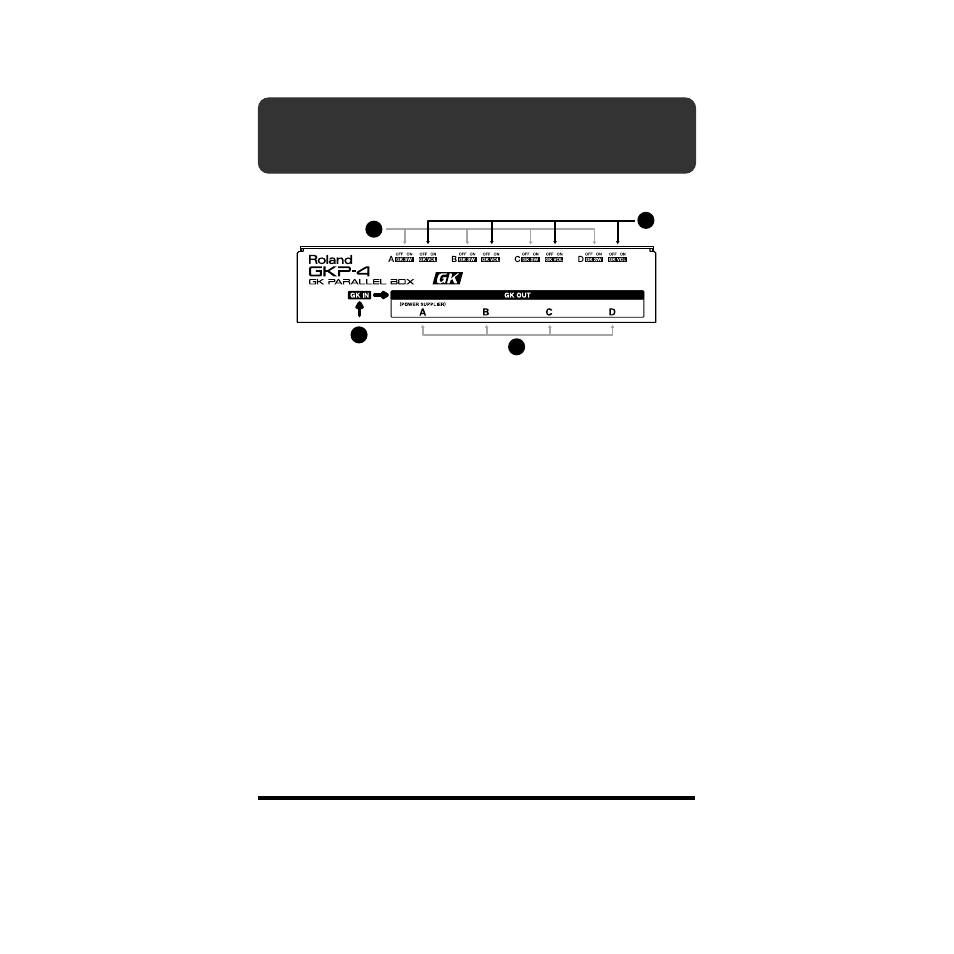

fig.01
1. GK IN Connector
Use a GK cable to connect a GK-2A here.
2. GK OUT Connectors (A, B, C, D)
Use GK cables to connect GK-compatible devices (such as the VGA-7, VG-88, GR-33, WP-
20G, and OC-20G) here.
When using only one GK device, connect it to GK OUT A (POWER SUPPLIER).
3. GK SW Switches
These switches determine whether or not control signals from a GK-2A’s switches (DOWN/
S1, UP/S2) will be transmitted to the corresponding GK device (ON), or not (OFF).
Switch the GK SW to ON only for GK devices that you want to be affected by switch
movements on a GK-2A.
4. GK VOL Switches
These switches determine whether GK-2A volume (SYNTH VOL) control signals are
transmitted to the corresponding GK device (ON), or not (OFF).
Switch the GK VOL to ON only on the GK devices that you want to be affected by
adjustments made using the GK-2A's volume control.
When the signals are not sent to a GK device, the device's volume level is set to maximum.
