11 Installation
On a Desk Top

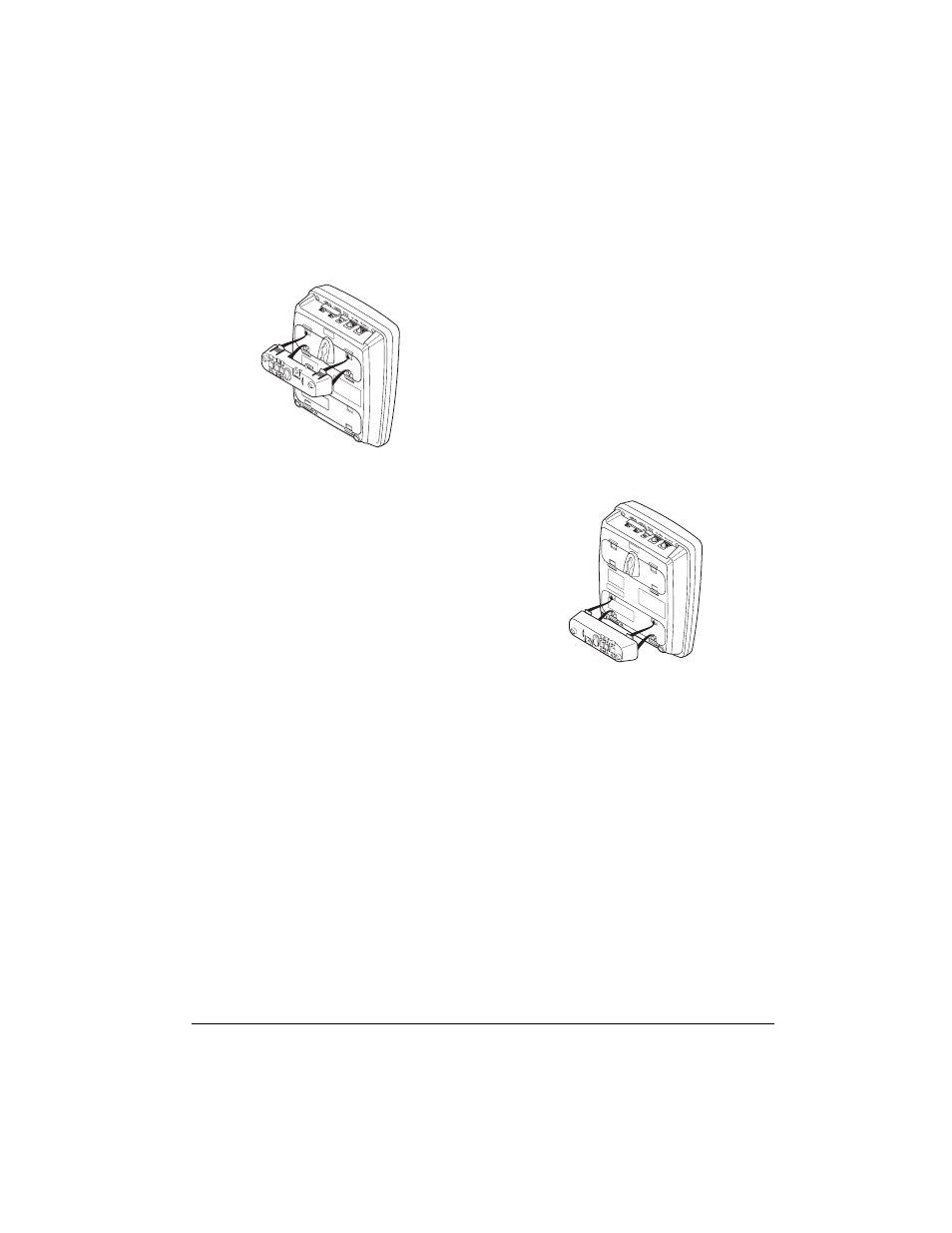

1. Insert the bracket’s tabs into the base’s
upper tab slots, then press down on the
bracket’s clips and insert them into the
clip slots.
2. To connect the phone to a two-line
phone jack, plug one end of the supplied
long two-line modular cord into the
TEL
LINE 1/2 jack on the back of the phone.
Route the cord through the strain-relief
slot on the bracket.
Note: If you connect the phone to a two-
line phone jack with a two-line cord, do
not connect a third line to the
TEL LINE 2
jack or the phone will not operate prop-
erly. Instead, you can connect another
phone device, such as a fax machine or
modem.
To connect the phone to two one-line
phone jacks, plug one end of the sup-
plied long two-line modular cord into
TEL
LINE 1/2 and plug another cord (not sup-
plied) into the TEL LINE 2 jack. Route
both cords through the strain-relief slot
on the bracket.
To connect the phone to a single one-
line phone jack, plug one end of the sup-
plied long modular cord into the
TEL
LINE 1/2 or TEL LINE 2 jack. Route the
cord through the strain-relief slot on the
bracket.
3. Plug the supplied AC adapter’s barrel
plug into the DC IN 9V jack on the back of
the base and route the adapter’s cord
through the strain relief slot on the bot-
tom of the bracket.
4. Plug the adapter into a standard AC out-
let.
5. Connect the phone cord(s) to the modu-
lar phone line jack(s).
6. Raise the base’s antenna to a vertical
position.
On a Wall Plate or Wall
1. Insert the bracket’s tabs into the base’s
lower tab slots, then press down on the
bracket’s clips and insert them into the
clip slots.
2. Connect the phone line(s) as described
in “On a Desk Top”. Use the shorter
modular cord to mount the phone on the
wall plate.
3. Insert the supplied AC adapter’s barrel
plug into the DC IN 9V jack on the back of
the base.
4. Route the adapter’s cord through the
narrow groove on the bracket. If you are
using two phone cords, route the second
cord through one of the wide grooves on
the bracket.
5. Plug the other end of the short modular
cord into the wall plate jack, then align
the keyhole slots with the wall plate
studs and slide the base downward to
