14

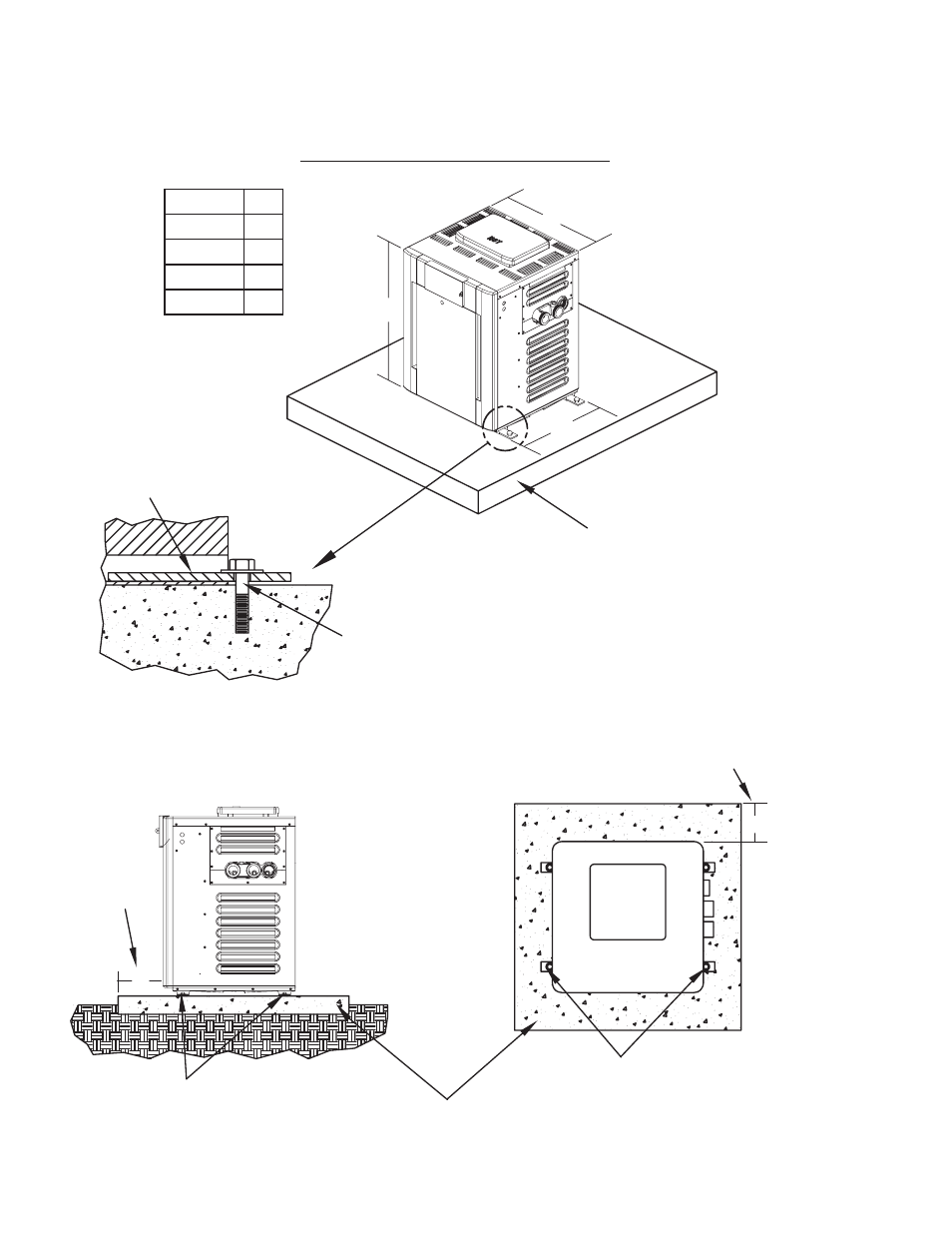

FLORIDA BUILDING CODE 2001
WIND SPEED = 150 MPH, 3 SECOND GUST
EXPOSURE = C
T O H
B
28”
40”
3” Min. Conc.
Pad by others
3” Min. Conc.
Pad by others
Min. Edge
Distance
Min. Edge
Distance
(1)–1/4” x 1-3/4” S.S. Tapcon Bolt & Washer (Field Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
(1)–1/4” x 1-3/4” S.S. Tapcon Bolt & Washer (Field Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
2” x 6” x 1/8” Pallet
Anchor Bracket (4 Total) (Kit# 011636)
1/4” x 1-3/4” S.S. Tapcon Bolt & Washer (Field Supplied)
NOTE: Use hole closest to unit with
washer overlapping edge of unit.
6”
6”
206/266/336/406 Atmospheric
MODEL # B
206 20”
266 23”
336 26”
406 29”
