RIDGID WL1200LS1 User Manual

Page 15

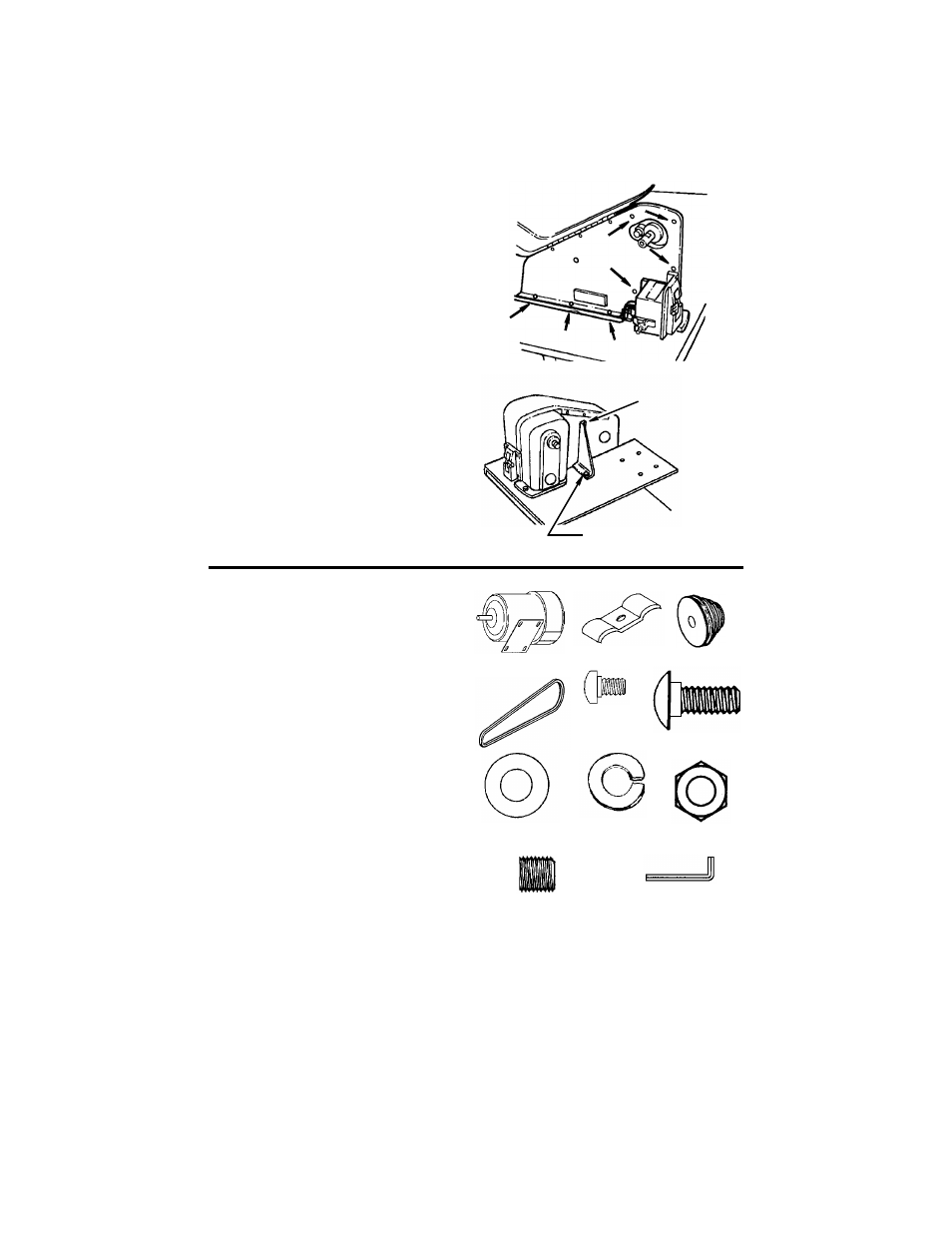

7. Locate Hole F on the left table board.

Attach the bracket plate to the table
top through Hole F. Use an M6 x 1.0-
45 carriage bolt, washer, lockwasher
and nut. Finger tighten.

8. Locate the three holes Labeled G on

the lower edge of the belt guard plate.
Place a M4 x 0.7-6 screw through
each of these holes and into the
tapped holes in the plate support.

9. Replace pulley on headstock tighten-

ing with 4mm hex “L” wrench.

10. Securely tighten all nuts and bolts.

Mounting the Motor

1. Find the following:

1 Motor
1 Motor Pulley
2 Cord Clamps
1 V-Belt

2. From the loose parts package find the

following:

2 M4 x 0.7-6 Pan Head Screws
4 M6 x 1.0-16 Carriage Bolts
4 6.5 x 19 x 1.6 Flat Washers
4 6mm Lockwashers
4 M6 x 1.0 Hex Nuts
1 M8 x 1.25-8 Socket Set Screw
1 4mm Hex “L” Wrench

M6 x 1.0-12

Hex Head Screw

M6 x 1.0-45

Carriage Bolt

M6 x 1.0-16

Motor

Hex Nut

M6 x 1.0

Pan Screw

M4 x 0.7-6

4mm Hex “L”

Lockwasher

6mm

Washer

6.5 x 19 x 1.6

Socket Set Screw

M8 x 1.25-8

V-Belt

Motor Pulley

Cord Clamp

Wrench
