RIDGID K-38B - Manual

Portable Electric Drain Cleaner
Ridge Tool Company/Elyria, Ohio, U.S.A.
3

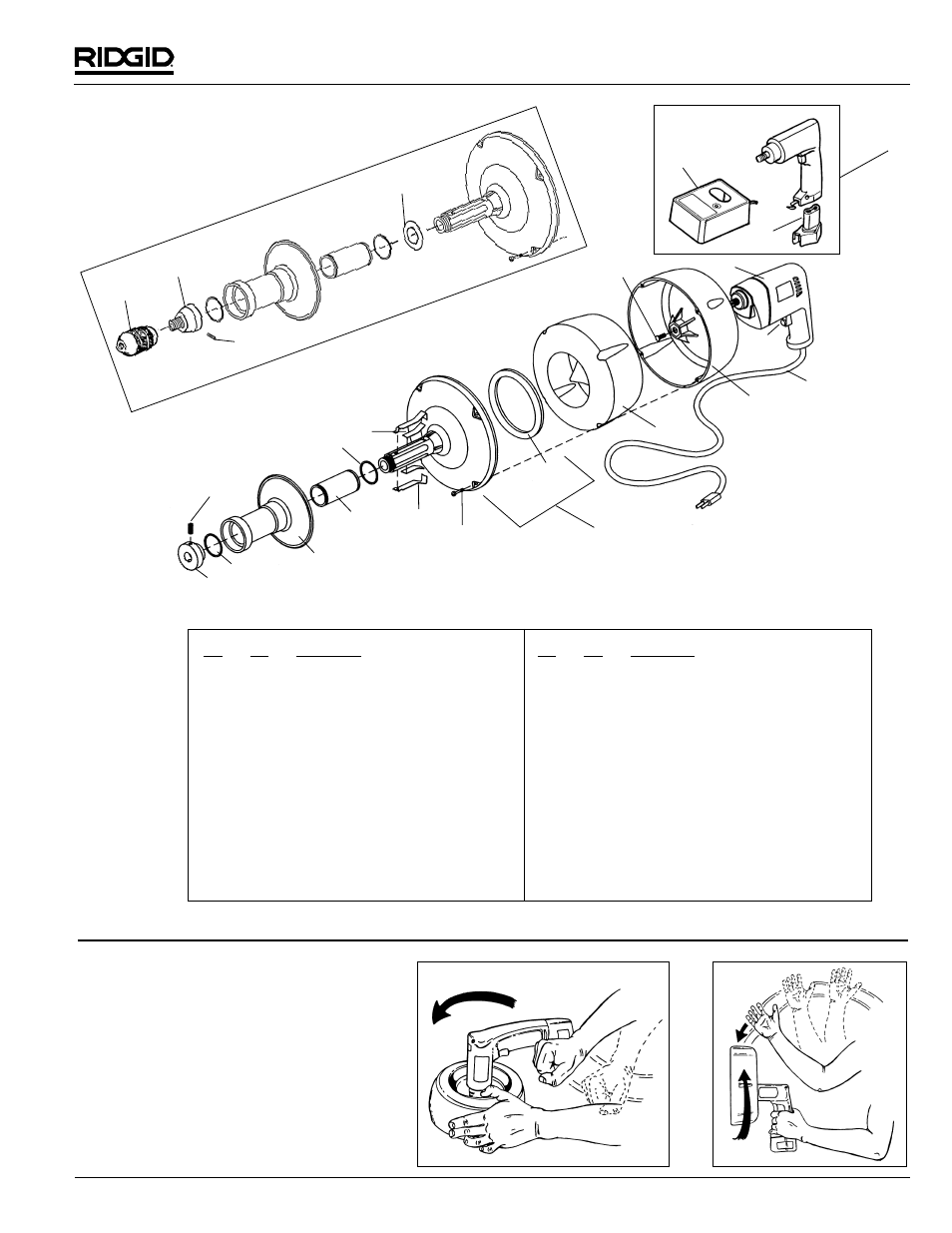

K-38/K-38B
†Service Notes
Ref. No. 11 & 13: To remove drum back from power unit, first
remove left hand screw Ref. 12. Strike unit as
shown in figures below to unscrew drum.
Ref. No. 16: See Model 3350 for component parts
†Chuck conversion: When converting to cable chuck Ref. 19,
remove springs Ref. 6 & 7.
Ref. Catalog
No. No. Description
16 24747 Cord (115V)
†17 39707 Power Unit, Charger, Battery (115V)
44902 Power Unit, Charger, Battery (240V-Export)
41197 Power Unit, Charger, Battery (220V-Europe)
18 39717 Battery Pack - K-38-B
41207 Battery 220/240V
19 39712 Charger - K-38-B
41202 Charger 220V
44952 Auto Charger 12 VDC
20 55247 Cable Chuck
21 55257 Chuck Adapter
22 55252 Spacer
23 60025 Set Screw
— 41562 Decal Package K-38
— 41567 Decal Package K-38-B
— 55242 Chuck Assy. Kit Includes Ref. No. 20, 21, 22
Ref. Catalog
No. No. Description
1 41502 Set Screw 5 /
16
″ - 18 x 3 /
4
″
2 41507 Nose Piece
3 41512 Spiral Ring (2)
4 41517 Hand Grip
5 41522 Sleeve
6 41532 Clamp Spring (2)
7 41537 Booster Spring (2)
8 41542 Captive Screw (4)
9 41547 Drum Front w/Gasket
10 47252 Gasket
11 41552 Drum Liner
†12 41557 Drum Back
*13 76775 Screw (Left Hand Thread)
†14 61980 Power Unit (115V)
84430 Power Unit (230V-Export)
44462 Power Unit (220V-Europe)
15 61100 Switch (115V)
84685 Switch (230V-Export)
44467 Switch (220V-Europe)
†See Service Notes
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
19
18
†17
1
2
3
3
4
5
6
7
8 9
A B
OR
10
†12
†14 *13
11
16
15
20
21
22
†Chuc
k Style
23
K-38B Power Assembly
