Raystar 120 waas satellite differential receiver – Raymarine Pathfinder Radar User Manual
Page 222
B-6
hsb
2
PLUS Series LCD Display
Raystar
120 WAAS
Sa
te
llit
e Di
ff
er
en
tial
Rec
eiv
er
Raystar 120 WAAS Satellite Differential Receiver

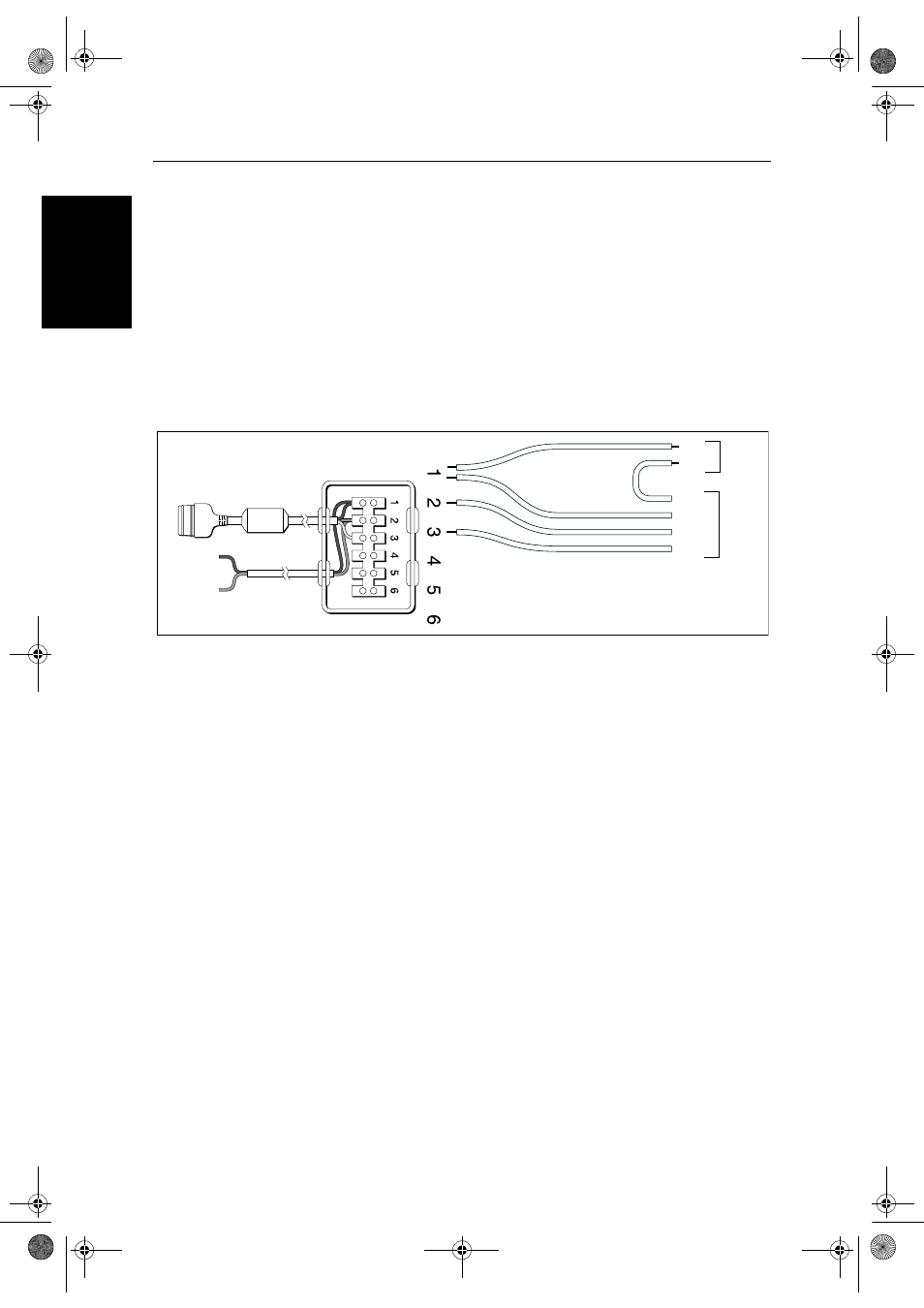

To connect your Raystar 120 WAAS Satellite Differential Receiver to your
hsb
2
display, connect to the Auxiliary Junction Box as shown in the illustration
below. Optional connections to RTCM are also shown. Note that the green
wire is not used.
CAUTION:
Ensure the correct polarity of the 12 V supply before applying display or
SeaTalk power. It is recommended that a multimeter is used to check the
connections.
From
GPS
sensor
Yellow
Red
Screen
D5478-1
Brown
Brown
To RTCM
(if used)
Black
12V
Power
Supply
(fused)
To Display Unit
SeaTalk Socket
Red
Black
