Appendix B: Using the Auxiliary Junction Box B-3
Raysta
r 112, 105,
Ape
lc
o 182
and
18
2XT
Autohelm GPS, Z260 and Z273

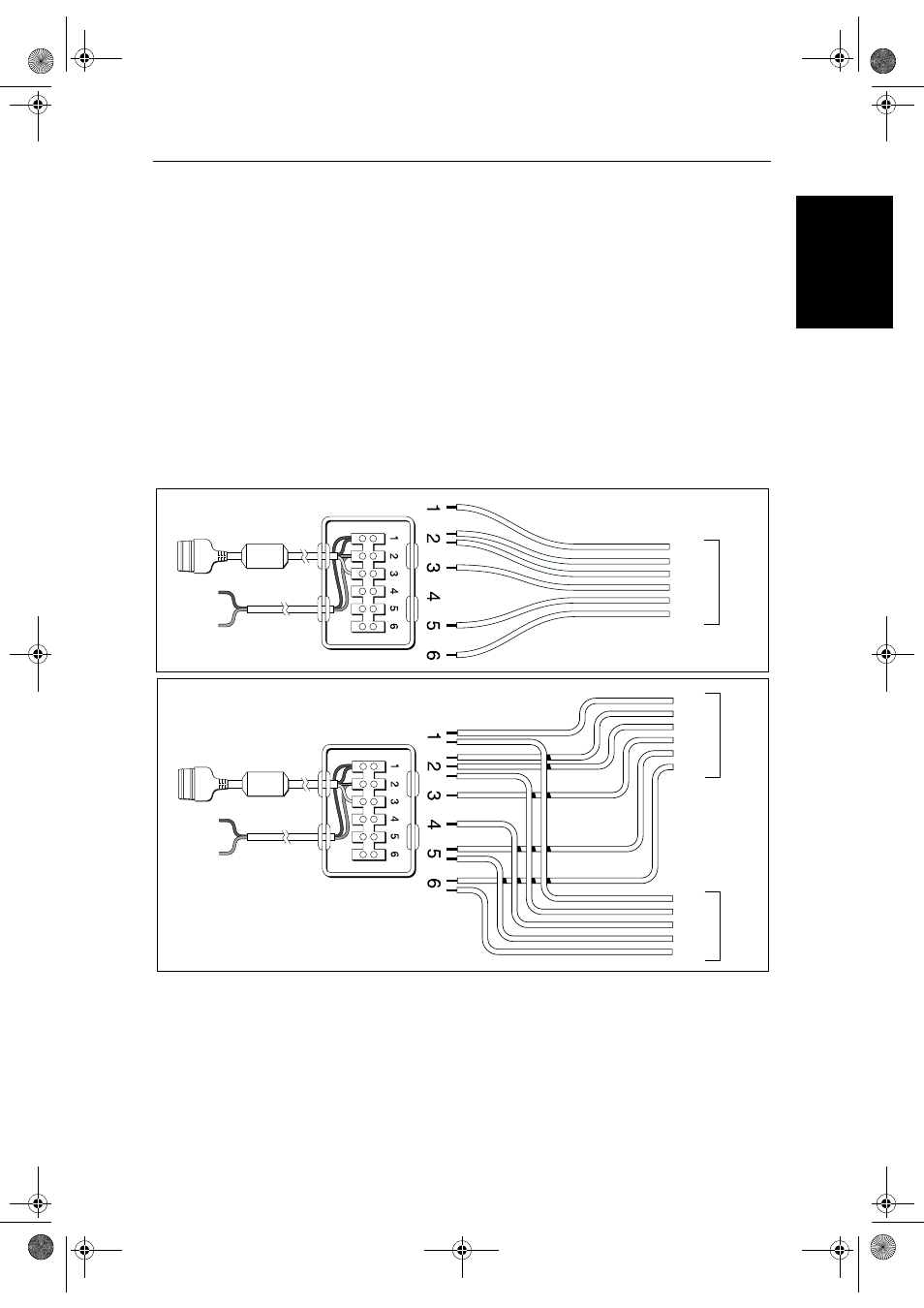

To connect your GPS to your hsb 2 display connect the wires as shown in the
first illustration below.
To connect your Differential Beacon Receiver, you must cut off the 5-pin
connector (Raytheon and Apelco versions) strip back the insulation on all the
wires and connect to the Auxiliary Junction Box as shown in the second
illustration below.
CAUTION:
Ensure the correct polarity of the 12 V supply before applying display or
SeaTalk power. It is recommended that a multimeter is used to check the
connections.
12V
Power
Supply
(fused)
From
GPS
sensor
Yellow
Green
White
Brown
Red
Black
To Display Unit
SeaTalk Socket
D4297-3
Red
Black
12V
Power
Supply
(fused)
From
GPS
sensor
Yellow
White
Green
Red
Black
Green
Yellow
White
Brown
Red
Black
To Display Unit
SeaTalk Socket
D4298-3
From
the
DBR
Red
Black
