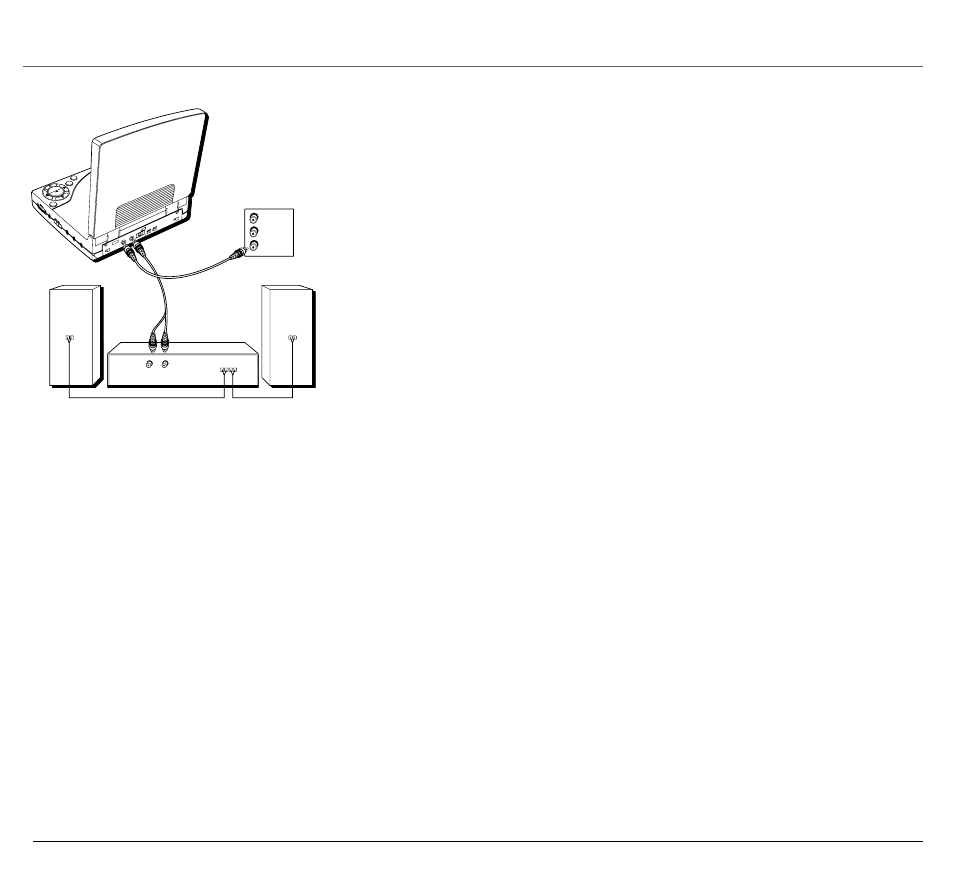

Connect to a TV and Amplifier
1.
Connect the left (white) and right (red) plugs on the audio cable to your
audio/video receiver and the other end of the cable to the AUDIO OUT jack
on the back of your DVD Player.
2.
Connect the video cable.
• Basic video connection – Connect the video cable (yellow) to the VIDEO
OUT jack on the back of your DVD Player, and to the Video Input jack on
your TV.
OR
• S-Video (optional) – If your TV has an S-Video Input jack, connect the
S-Video adapter (included) to the S-VIDEO OUT jack on the back of your
DVD Player. Connect one end of an S-Video cable to the adapter and the
other end to the S-Video jack on your TV. If your TV doesn’t have S-Video,
use the basic video connection listed above.
GO TO PAGE 13
