5. Precautions to Be Taken When Debugging
5.1 Reset
The M34282T5-OPT can be reset by the reset command of emulator debugger RTT72, but cannot
emulate device operation at power-on reset. Use an evaluation MCU (OTP version) to verify the
operation associated with power-on reset.
5.2 Capacity of Internal Memory (ROM, RAM)
The M34282T5-OPT is equipped with the M34282E2GP as an evaluation MCU. The RAM and
ROM areas that can be referenced by emulator debugger RTT72 are specified by switches SW2 and
SW3 as listed in Table 5.1.

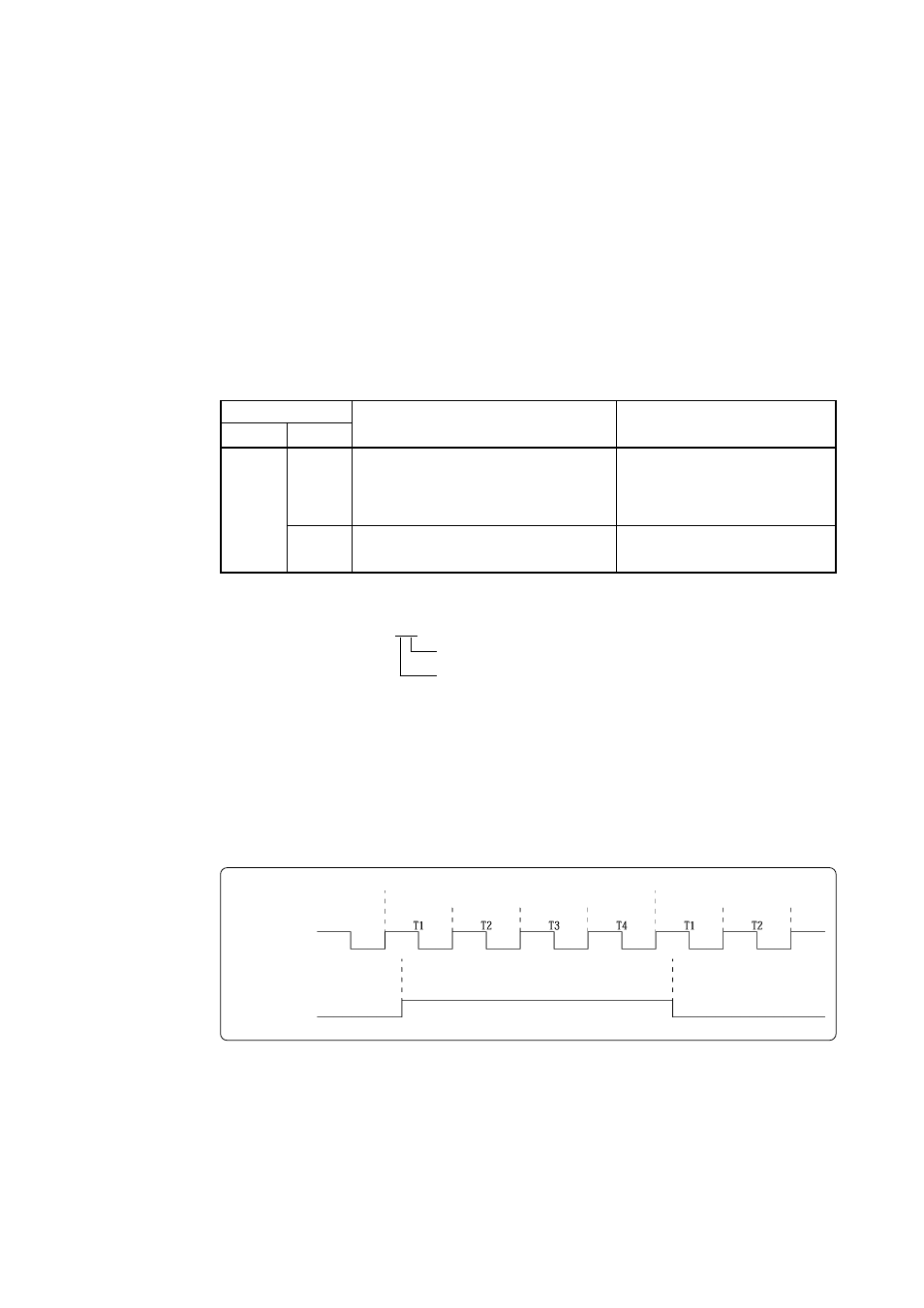

Table 5.1 Memory areas that can be referenced by emulator debugger RTT72
Figure 5.1 Output waveform of check pin TP4
WRST
System clock X IN
* Addresses in the RAM area are shown as described below according to the data pointer registers
X and Y.
Example: RAM address XXh
Y (Y = 0 to B, or Y = 0 to F)
X (X = 0 to 3)
5.3 Watchdog Timer
With the M34282T5-OPT, the watchdog timer cannot be operated. Therefore use an evaluation MCU
(OTP version) to verify the operation associated with the watchdog timer function.
And with the M34282T5-OPT, when executing WRST instruction, the check pin TP4 outputs "H"
level (see Figure 5.1), so you can check the initializing cycle of the watchdog timer by monitoring
the pulse width frequency of TP4.
Switch setting
SW3 SW2
RAM area ROM area
00h - 0Bh
10h - 1Bh
20h - 2Bh
30h - 3Bh
(4 bits x 48 words)
000h - 3FFh
(9 bits x 1024 words)
000h - 7FFh
(9 bits x 2048 words)
00h - 3Fh (4 bits x 64 words)
"H"
"H"
"L"
