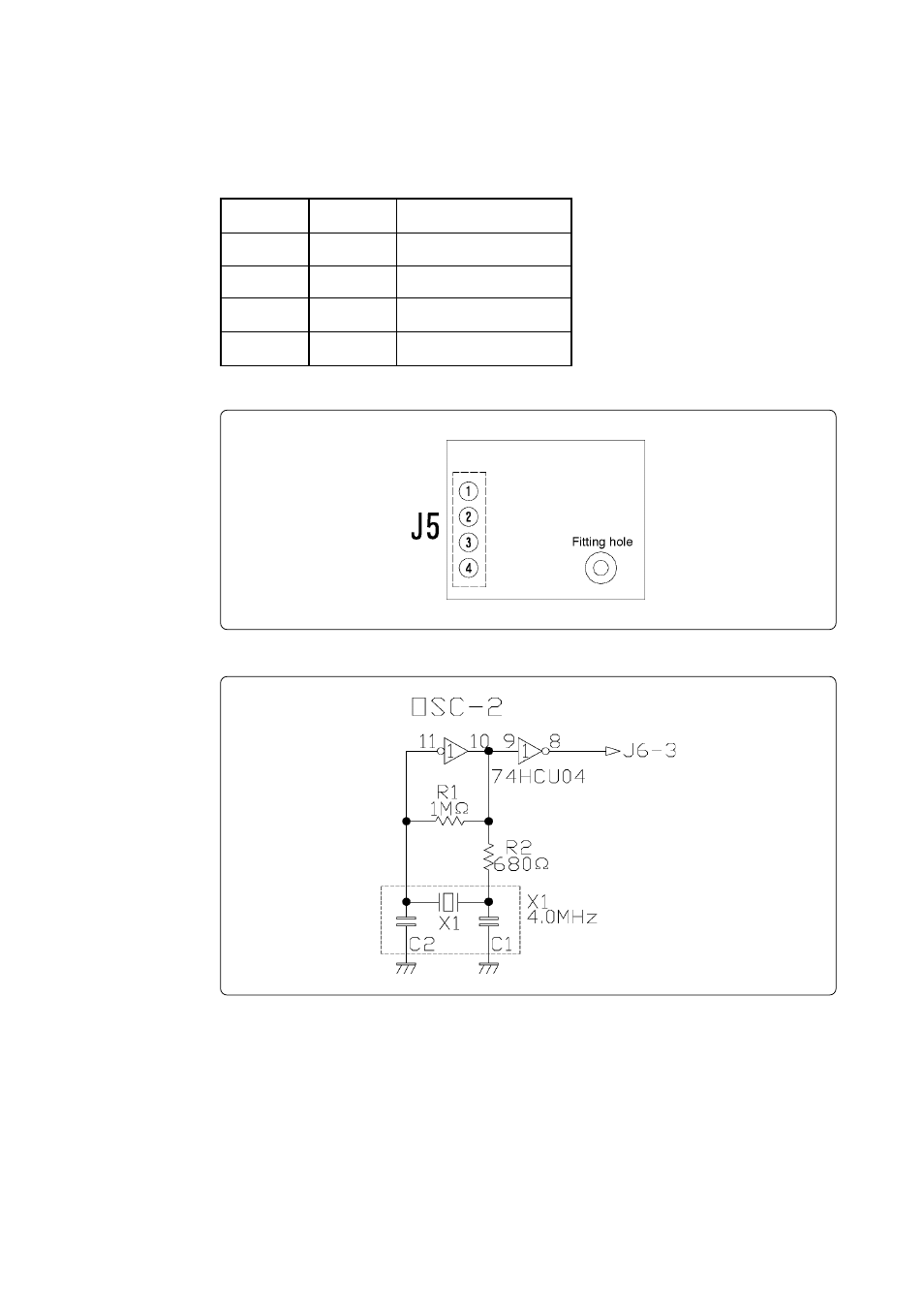

Figure 4.5 Pin layout of J5 connector
(3) J5 connector
The J5 connector is a connector used to connect an oscillator board (OSC-2). Table 4.8 lists the
pin assignments of the J5 connector. Figure 4.5 shows the pin layout of the J5 connector. For the
4.0MHz operation with the OSC-2 oscillator board, see Figure 4.6.
Table 4.8 Pin assignments of J5 connector
Figure 4.6 Circuit diagram of OSC-2 (4.0 MHz)
Pin No.
1
2
3
4
Signal
V
CC
GND
CLK
GND
Description
Power supply
GND
Clock input
GND
