M34282t5-opt, 1 outline – Renesas MCU Board for PC4400 Emulator System M34282T5-OPT User Manual
Page 15
( 13 / 38 )
4. M34282T5-OPT
4.1 Outline
By using with the PC4400 emulator for the 720 Series, the M34282T5-OPT can make up an emulator
system which can be operated by a personal computer.
Figure 4.1 shows the emulator system configuration.

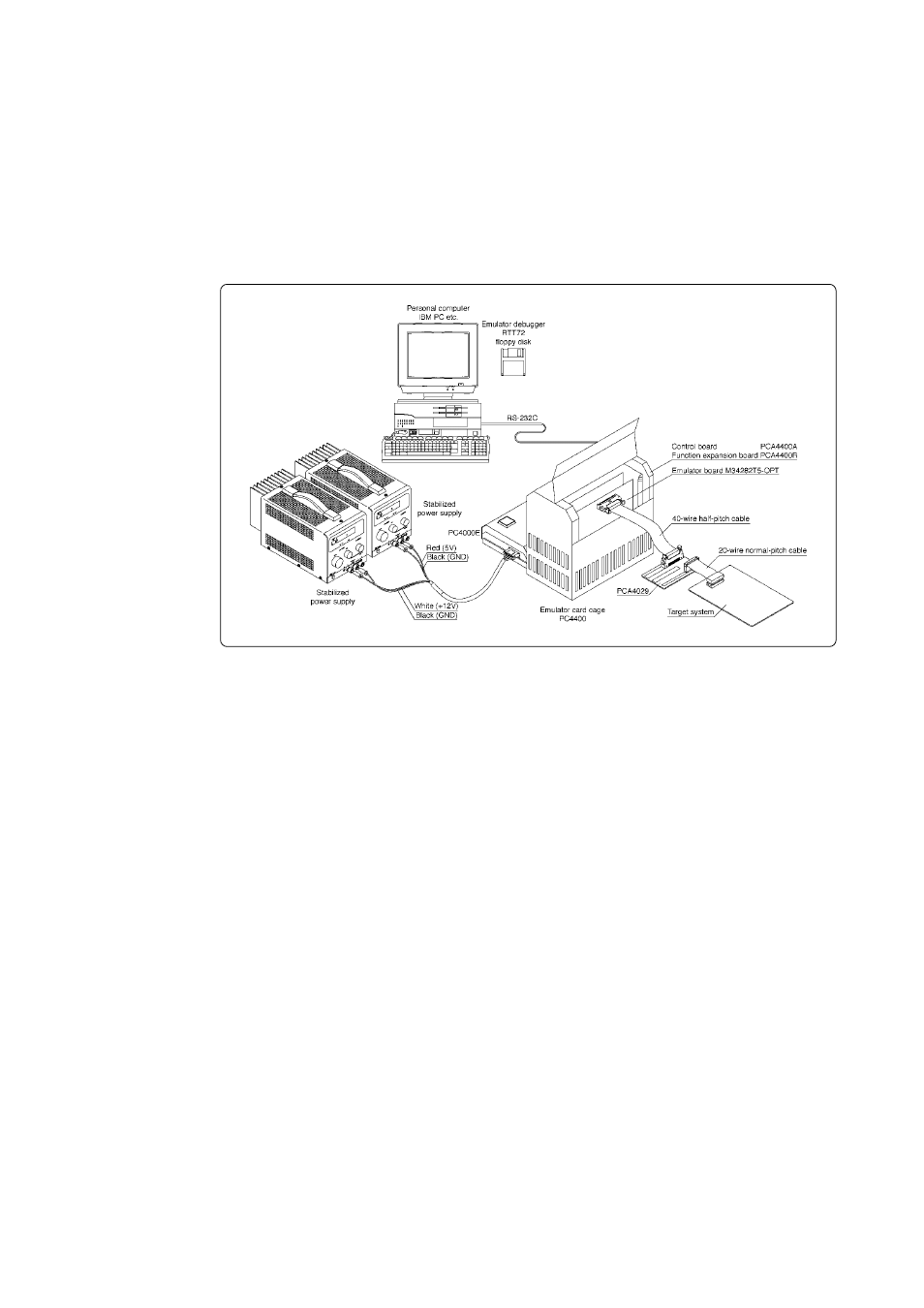

Figure 4.1 Emulator system configuration
* For how to connect to the target system, refer to "4.6 Connecting MCU Board to Target System"
(page 20).
