SECTION 7: O PTIONAL H EATER A CCESSORIES
31

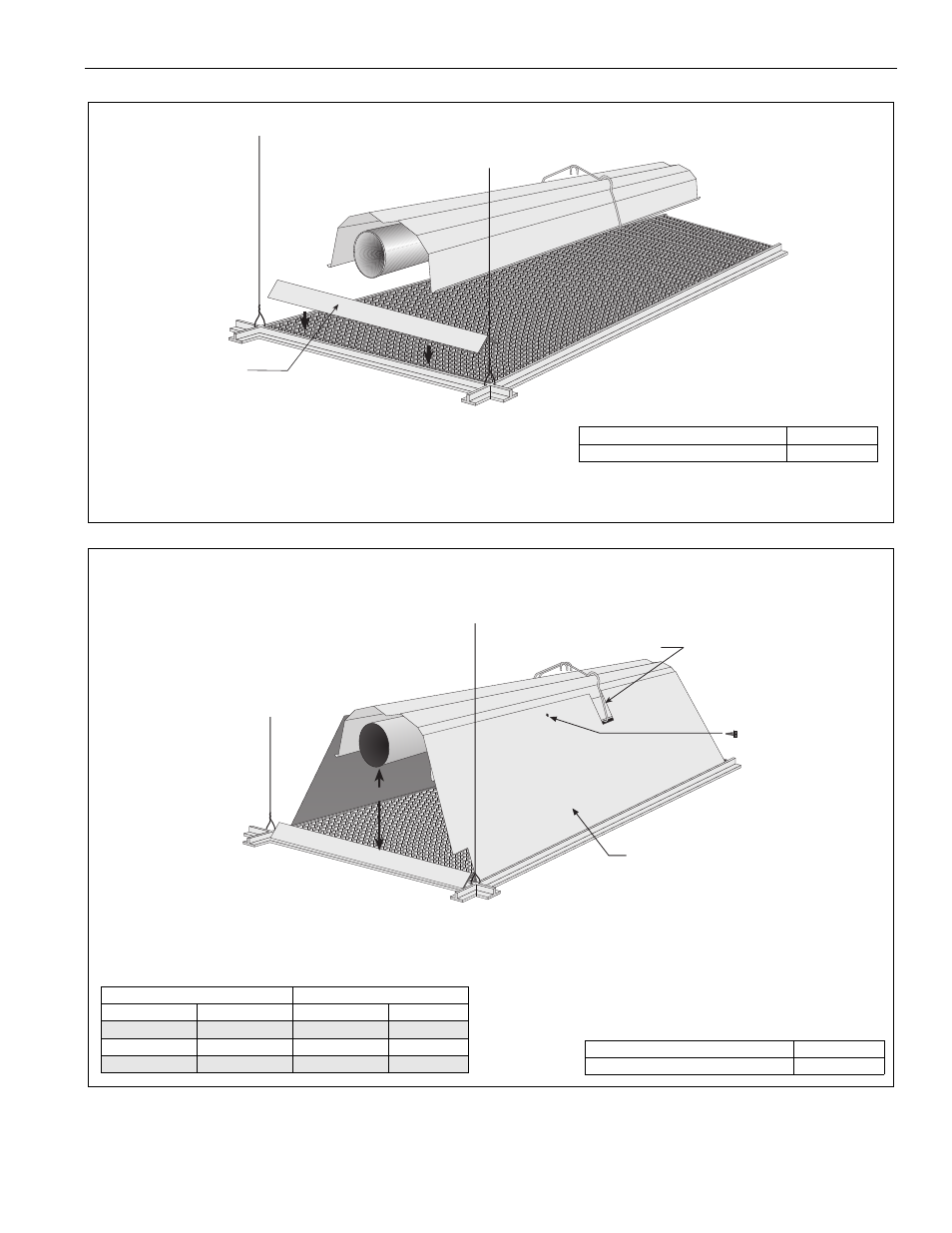

Step 7.5.2 Frame Shield Installation
Step 7.5.3 Reflector Side Extension Installation for Decorative Grilles
Shield
Description Part Number
Deco Grille Shield 01365900
NOTE: If the decorative grille system is to
be installed in an area with considerable
air movement, it is recommended that one
#8 x 3/8" sheet metal screw be installed per
reflector extension to prevent it
from blowing over.
A
Reflector Side
Extension
Cut relief notches for tube
and reflector hangers.
Insert screw
here. (See note.)
Distance "A" Extension
Minimum Maximum Part No. Width
2" (4 cm) 6" (15 cm) 01370408 8" (20 cm)
6" (15 cm) 10" (26 cm) 01370412 12" (30 cm)
10" (26 cm) 14" (37 cm) 01370416 16" (40 cm)
Description Part Number
Reflector Side Extension 01370412
