CTH2-S
ERIES
I
NSTALLATION
, O
PERATION
AND
S
ERVICE
M
ANUAL
28

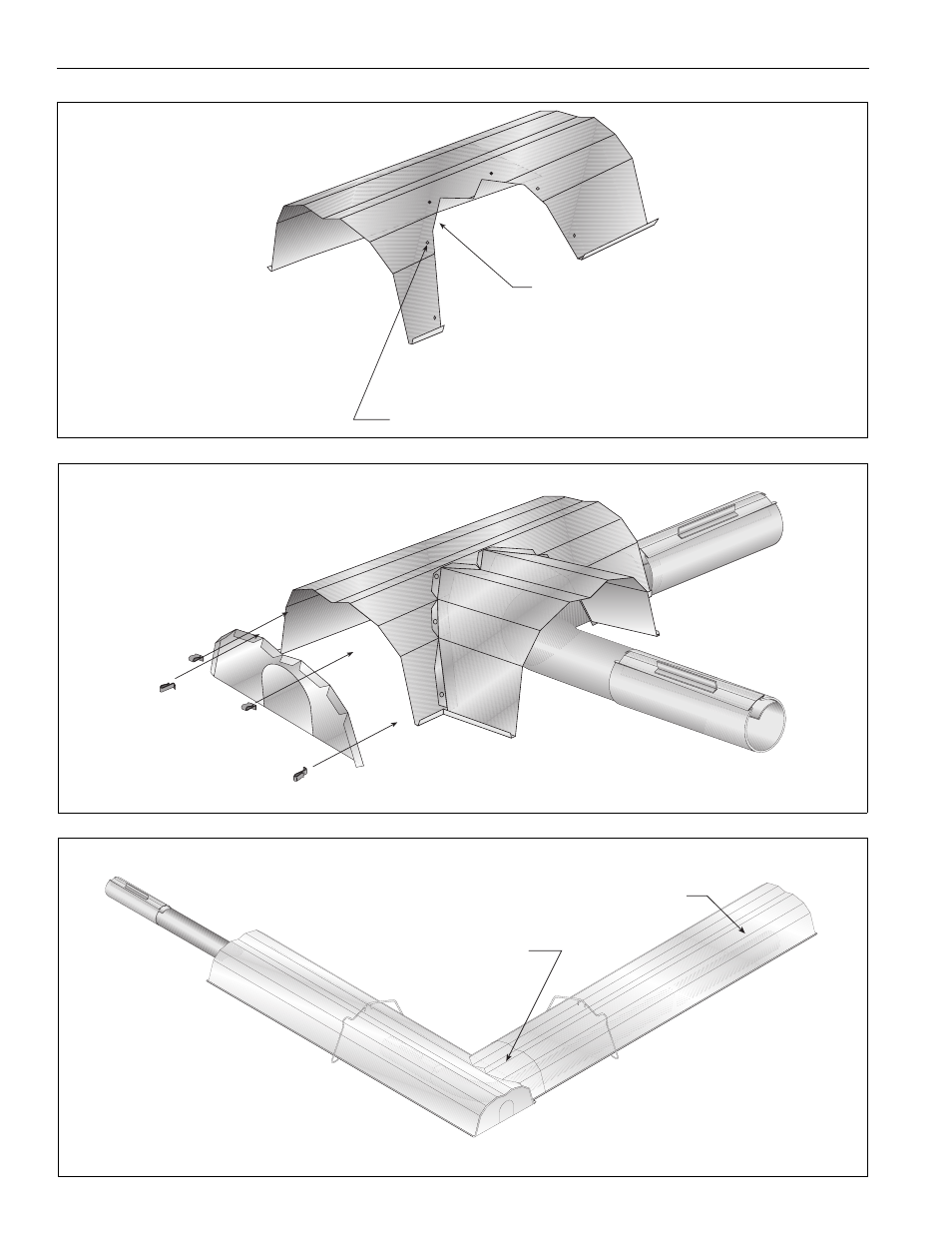

Step 7.2.4 Reflector Joint Installation
Step 7.2.5 Reflector Joint Detail
FIGURE 21: Reflector Joint Detail
Cut away contour
with tin snips.
Punch/drill six 3/32" (2 mm) holes.
Install reflector
end cap.
Attach reflector joint
with six #8 sheet
metal screws.
Reflector
Reflector
Joint
