Roberts Gorden VANTAGE II CTH2-40 User Manual
Page 36
CTH2-S
ERIES
I
NSTALLATION
, O
PERATION
AND
S
ERVICE
M
ANUAL
30

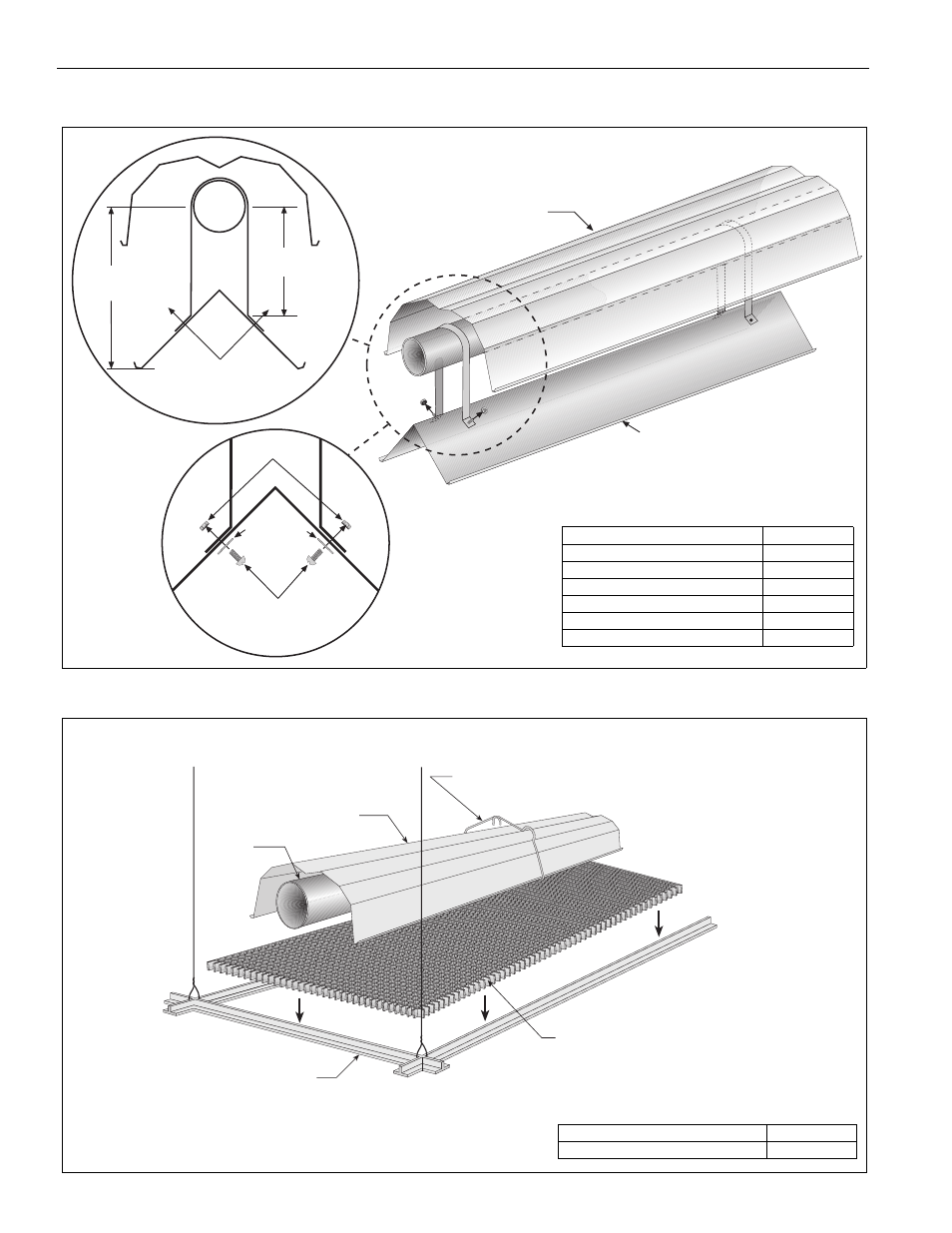

7.4 Lower Clearance Shield Installation
Step 7.4.1 Shield Support Strap Assembly
7.5 Two-Foot Decorative Grille Installation
Step 7.5.1 Grille Installation
12"
(30 cm)
Reflector
Lower Clearance Shield
17"
(43 cm)
Washers
Screws
Locknuts
Align Pilot Holes
Description
Part Number
Lower Clearance Shield Package
01397501
Shield Support Strap
01397500
Lower Clearance Shield 8'
02793000
Locknut #8
92311400
Flat Washer #8
95310800
Screw #8 x 3/8"
93511406
Suspended Ceiling Frame
Tube
2' x 4' (.6 m x 1.2 m) Aluminum Grille
Reflector
Tube and Reflector
Hanger
Description
Part Number
Aluminum Grille 2' x 4' (.6m x 1.2 m)
91407000
