SECTION 7: O PTIONAL H EATER A CCESSORIES
27

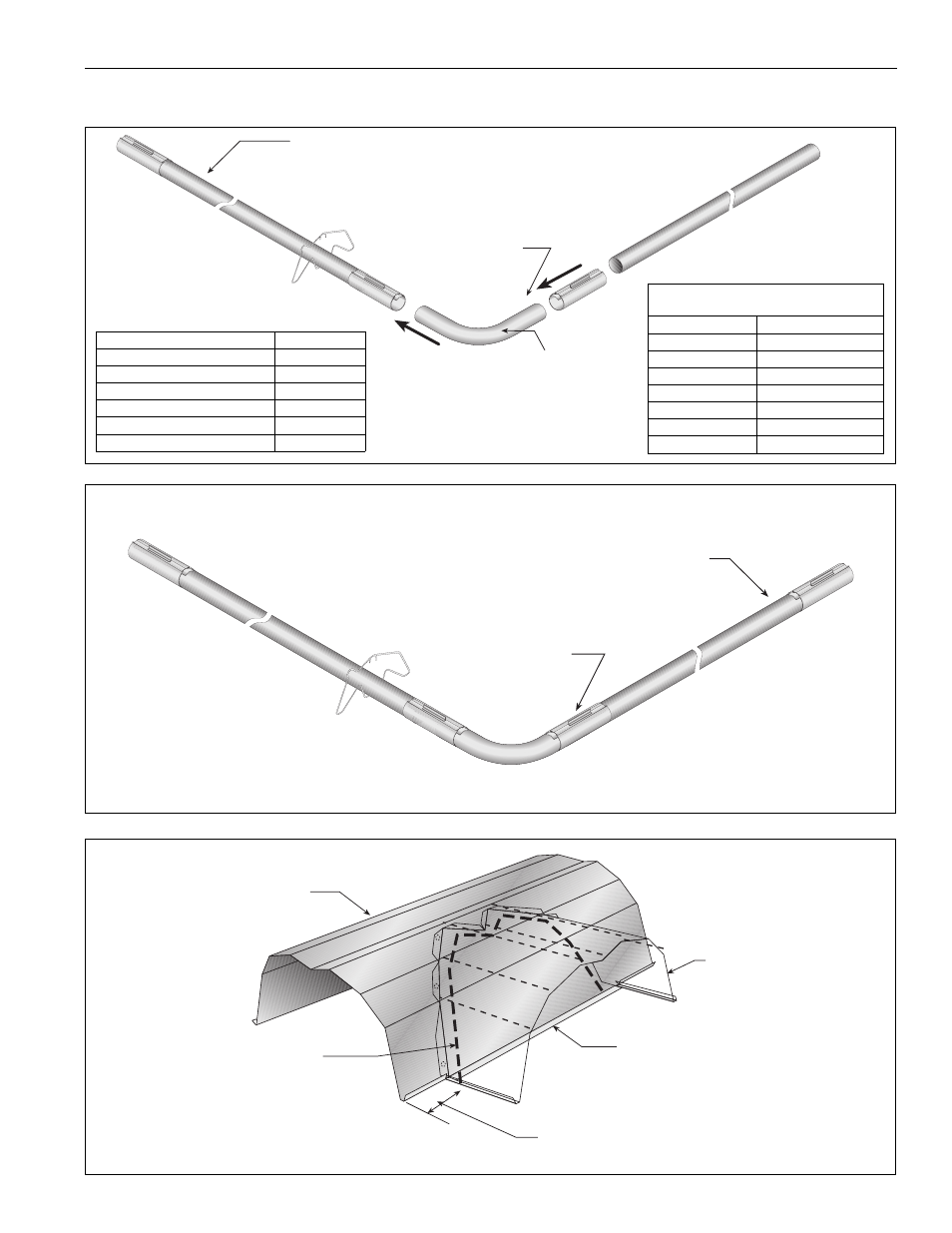

7.2 Elbow Package Configuration
Step 7.2.1 Elbow Installation
Step 7.2.2 Elbow Installation
Step 7.2.3 Reflector Joint Installation
Tube
90° Elbow
Coupling
Description Part Number
Elbow Package 02718702
90° Elbow 01335801
Coupling 01312700
Reflector End Cap 02750800
Reflector Joint Piece 02750900
U-Clip Package 91107720
Minimum Distance Required Between
Burner and Elbow
Model
Minimum Distance
CTH2-40 -
CTH2-60 10' (3 m)
CTH2-80 10' (3 m)
CTH2-100 15' (4.5 m)
CTH2-125 15' (4.5 m)
CTH2-150 15' (4.5 m)
CTH2-175 15' (4.5 m)
Tube
Coupling
Reflector
Reflector
Joint
Flatten Edge
1" (2.5 cm)
Maximum
Scribe
Contour
