Page 32: Pre l iminar y
22
Runco CX-40HD/CX-46HD Owner’s Operating Manual
PRE
L
IMINAR
Y
Connecting to a Dolby
Digital Amplifier
If your home theater has a Dolby Digital amplifier or receiver, connect the digital audio
output from the Crystal Series LCD Display to the digital audio input of the
amplifier/receiver as shown in Figure 3-10. The Crystal Series LCD Display supports both
coaxial (S/PDIF) and optical (TosLink) digital audio connections.

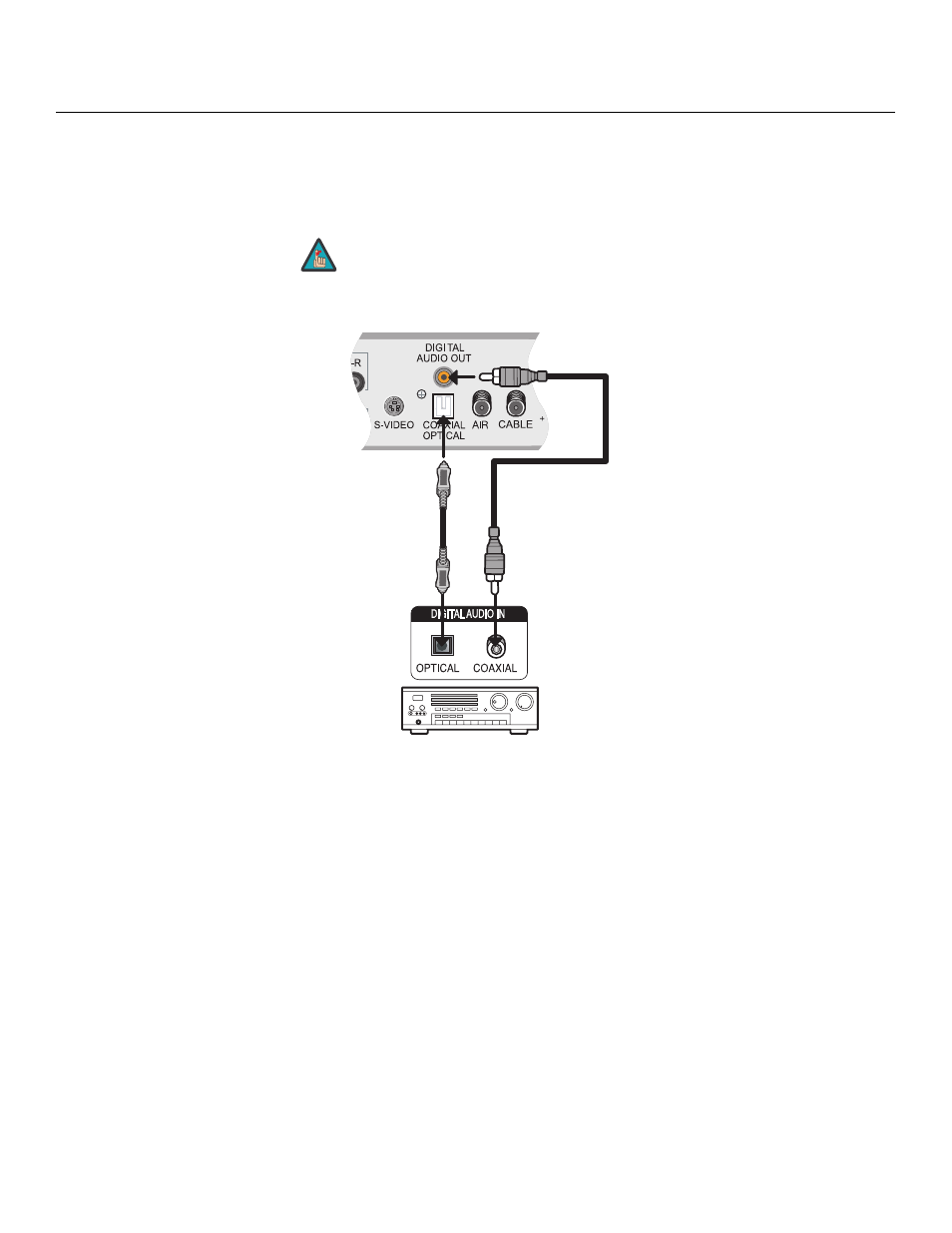

Figure 3-10. Digital Audio Connection
➤
The audio output level is fixed. (The volume and mute controls affect
only the speaker and headphone outputs.)
Note
Digital Audio Cable,
Optical
(Sold Separately)
Digital Audio Cable,
Coaxial
(Sold Separately)
Dolby Digital
Amplifier
- or -
