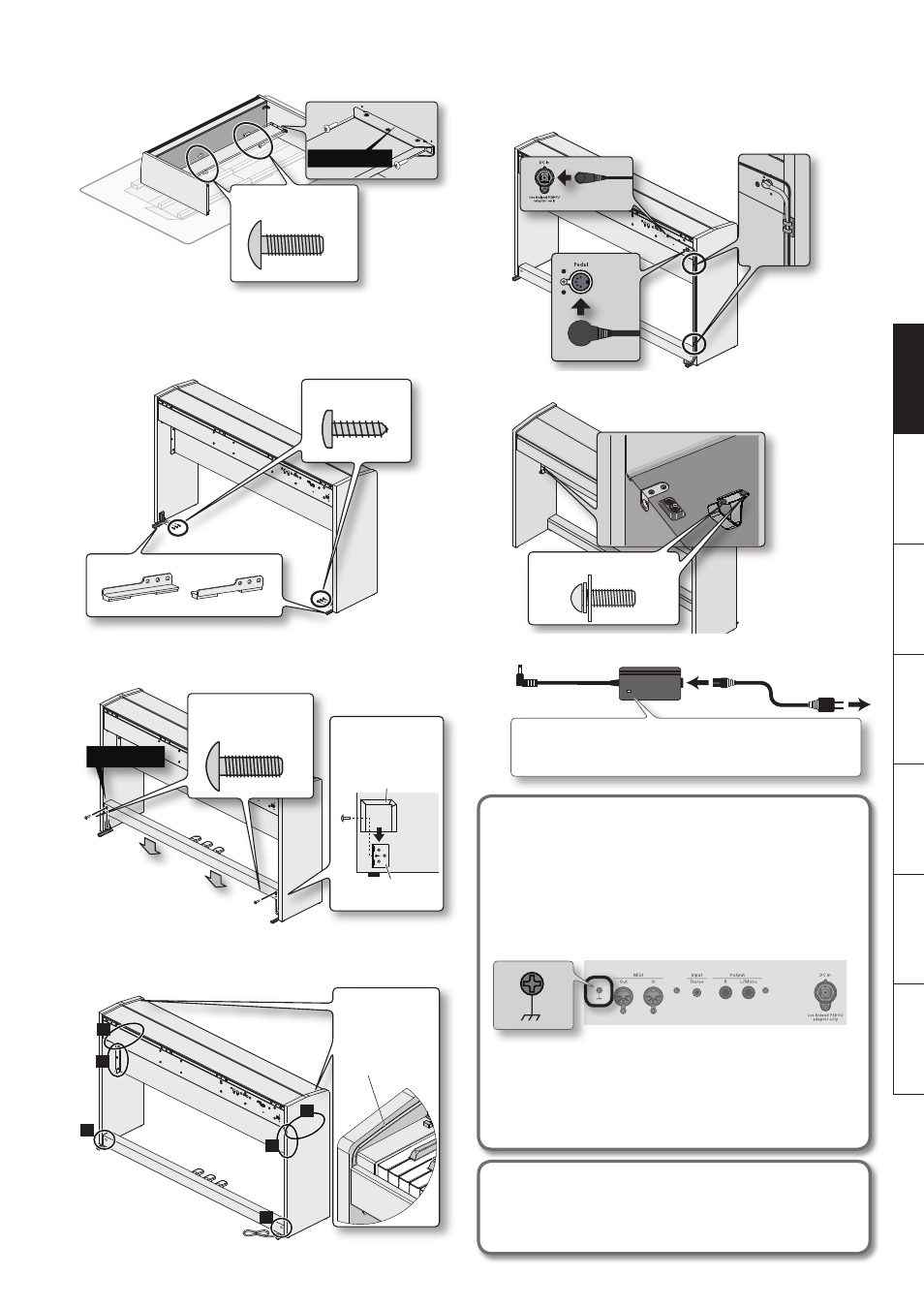

Assembling the F-120
* To ensure that you assemble this unit correctly, please read this manual carefully before you begin assembly. Keep this manual nearby for reference when needed.
* Keep this unit horizontal when lifting it during assembly or transport.
* Be careful not to pinch your hands or drop this unit on your foot during assembly or transport.
* You must obtain the assistance of at least one additional person when assembling or transporting this unit.
* Keep small parts such as screws, stabilizers, and cord clamps out of the reach of small children to ensure that these items are not swallowed accidentally.
* The screwdriver needed for assembly is not included. You will need to provide a Phillips screwdriver of the appropriate size for the screws.
* You should initially tighten each screw loosely before tightening them to their fi nal position. Start by tightening the screws until they are approximately half hidden. Do not use a
power screwdriver when tightening the screws to their fi nal position. Doing so may strip the threads.
* Tighten the screws fi rmly, and place the unit at a location that is level and sure to remain stable. Never place the unit on a shag carpet. If you do so, the pedal may be unstable,
causing damage.
* Do not place the body of the piano directly on the fl oor. Doing so will damage the jacks and holders on the bottom of the piano, and also damage the bottom panel case.
Copyright © 2011 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Piano main unit
Side board (left)
Side board (right)
Rear board
Pedal board
Screws (large): 10 pcs .
Screws (small): 6 pcs .
Screws (with washers): 2 pcs .
Stabilizers (left/right)
Cord clamp: 2 pcs .
Headphone hook: 1 pcs .
11
10 6
1
1
2
3
4
5
6
7
8
9
10
11
4
5
2
3
7
8
9
1.
Take the side board (right) and side board (left) out of the
package, and position the side board packing material
together to create a work surface .
2.
Take the piano main unit out of the package, remove the
protective mat that surrounds it, and spread the mat out
over your work surface .
* Do not yet remove the protective material that is attached to the
left and right of the piano main unit. If you remove this protective
material and place the unit on the fl oor, protruding parts on the unit
may scratch the fl oor, or the parts themselves may be damaged.
3.
Remove the protective material attached to the left and
right of the piano main unit, and stand it upright on your
work surface .
* The protective sheet that is wrapped around the piano main unit
must not be removed until you connect the pedal cord (step 9).
Removing the protective sheet before that time will allow the
keyboard cover to open, which may be hazardous.
4.
Attach the side board (right) and side board (left) to the piano
main unit, and use the screws (large) to fasten them provisionally .
Screws (large): use four screws
If you fi nd that it’s hard to get the screws to enter
their holes, try pushing the piano in the direction
shown by the arrow; you should then be able to
fasten the screws .
5.
Attach the rear board to the side boards, and use the screws
(large) to fasten it provisionally .
Screws (large):
use four screws
Avoid scratches!
6.
Place the unit upright, and attach the stabilizers to the side
boards .
* Securely fasten the stabilizers to their fi nal tightness at this time.
Screws (small):
use six screws
Stabilizers
Right Left
7.
Attach the pedal board, and provisionally fasten it using the
screws (large) .
Screws (large):
use two screws
Placing the pedal
board (as seen from
the side)
Pedal board
Metal parts
Avoid scratches!
8.
Securely tighten each screw (ten locations) in the order of
the side boards, rear board, and pedal board .
1
2
3
1
2
3
Do not allow a gap
between the side
board and the main
unit .
9.
Connect the AC adapter to the DC In connector on the
back of the piano, and connect the pedal cord to the Pedal
connector . Attach the cord clamps to fasten the pedal cord
and the AC adaptor cord (two locations) .
10.
Use screws (with washers) to fasten the headphone hook .
Screws (with washers):
use two screws
11.
Connect the supplied AC adaptor and power cord .
Place the AC adaptor so the side with the indicator faces upwards and
the side with textual information faces downwards. The indicator will
light when you plug the AC adaptor into an AC outlet.
To AC outlet
Power cord
About ground terminal
Depending on the circumstances of a particular setup, you may experience a
discomforting sensation, or perceive that the surface feels gritty to the touch
when you touch this device. This is due to an infi nitesimal electrical charge,
which is absolutely harmless. However, if you are concerned about this,
connect the ground terminal (see fi gure) with an external ground. When the
unit is grounded, a slight hum may occur, depending on the particulars of your
installation. If you are unsure of the connection method, contact the nearest
Roland Service Center, or an authorized Roland distributor, as listed on the
“Information” page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fi re or explosion)
• Telephone-line ground or lightning rod (may be dangerous in the event of
lightning)
When moving the unit
If you need to move the unit, close the keyboard cover and disconnect the AC
adaptor. With at least one other person helping you, lift the unit horizontally
and carry it, taking care not to pinch your hands or drop the unit on your feet.
Check the Parts
