14

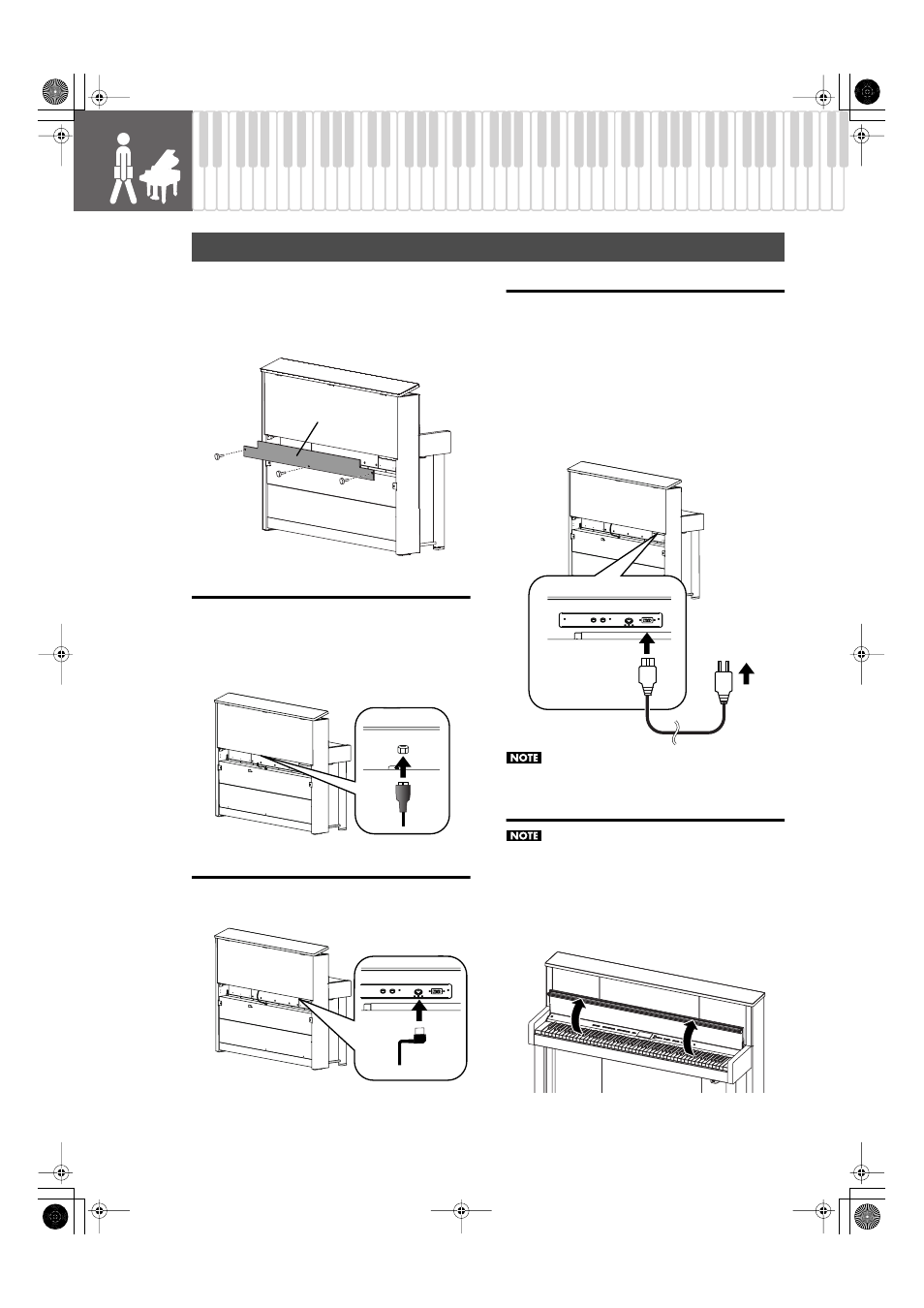

Before You Play
Before connecting cables to the bottom panel (the back
edge of the LX-10F’s bottom), you’ll need to remove the rear
board upper.
To remove the rear board upper, remove the three screws
from the locations shown in the illustration.
Connecting the Speaker Cable
Plug the speaker cable extending from the stand into the
speaker connector located at the rear of the LX-10F’s bottom
panel.
Pay attention to the shape of the speaker cable’s connector,
and insert it until you hear it click securely into place.
fig.SpeakerCable.eps
Connecting the Pedal Cord
Plug the pedal cord extending from the stand into the Pedal
connector located at the rear of the LX-10F’s bottom panel.
fig.PedalCord.eps
Connecting the Power Cord
Check before you connect the power cord.
• Make sure that the [Power] switch is off (p. 16).
• Make sure that the [Volume] slider is minimized (p. 17).
1. Connect the included power cord to the AC Inlet
located at the rear of the bottom panel.
2. Plug the other end of the power cord into an AC
outlet.
fig.PowerCord.eps
You must use the power cord included with the LX-10F.
Opening/Closing the Lid
To open the lid, use both hands to lift it lightly.
The lid of the LX-10F is designed to close softly even if
you remove your hands from it. However, it will close
quite abruptly if it has been opened only slightly. Be
careful not to pinch your fingers in the gap.
1. To open the lid, use both hands to lift it.
Getting Ready to Play
Rear Board Upper
1
2
AC outlet
