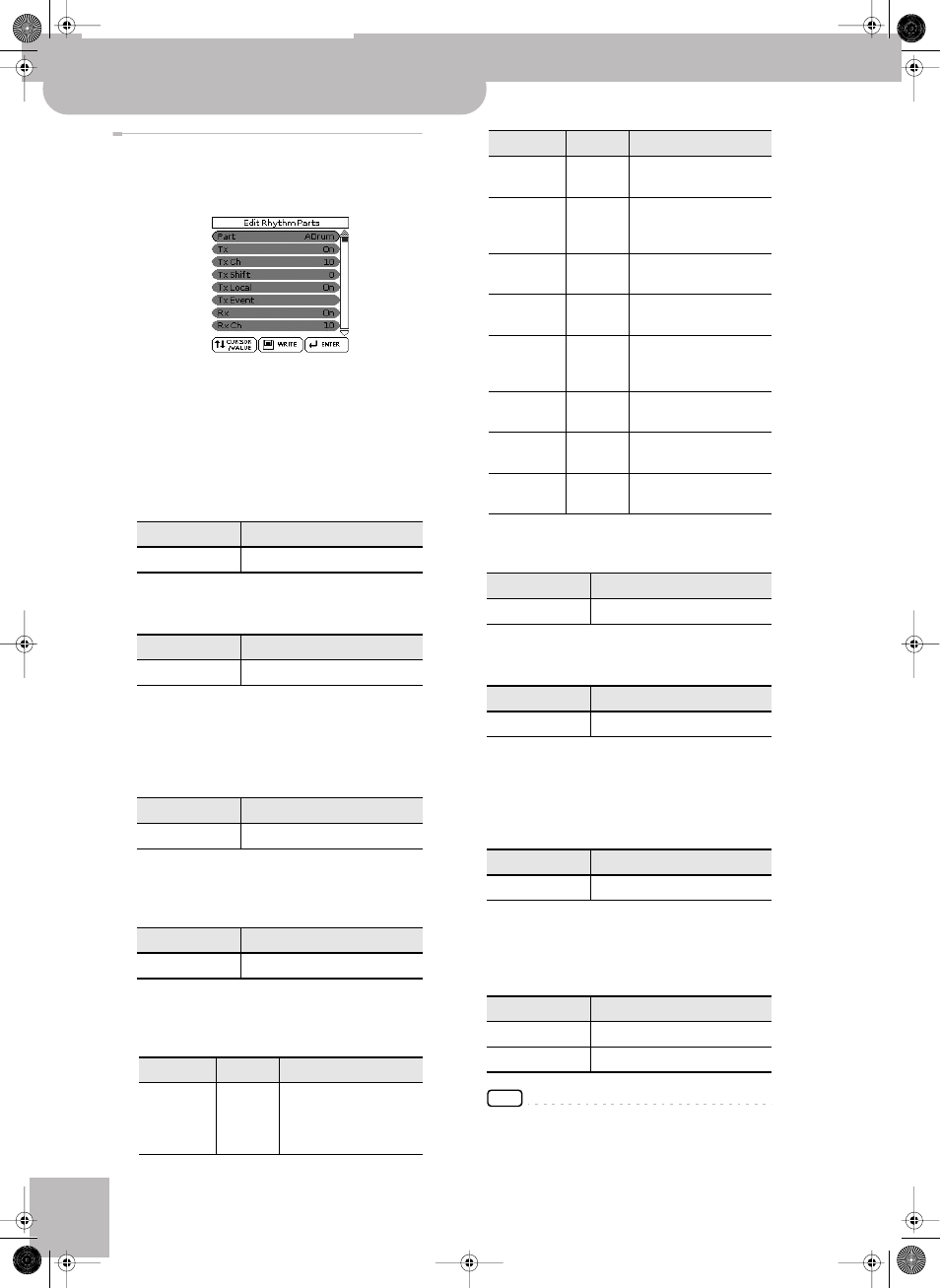

Menu options
104
r
Backing Keyboard BK-5
Edit Rhythm Parts
The following parameters are located on the display
page that can be selected using [MENU] button‰
“MIDI” ‰ “Edit Rhythm Parts”.
1. Use the [CURSOR÷VALUE] dial to select the
part you want to edit (ADrum, ABass, Acc1,
Acc2, Acc3, Acc4, Acc5, Acc6).
The display now shows the settings for the selected
part.
Tx
Select “On” if you want the selected part to transmit
MIDI data.
Tx Ch
Allows you to assign a MIDI transmit channel to the
selected part.
Tx Shift
This parameter allows you to transpose the note
messages before they are transmitted to an external
MIDI instrument or computer. The maximum possible
transposition is four octaves up (+48) or down (–48).
Each step represents a semi-tone.
Tx Local
This is where you can disconnect the part from the
internal sound source (“Off”) – or re-establish that
connection (“On”).
Tx Event
The “TX Event” section provides a number of filters
that allow you to specify whether the messages in
question should be transmitted (On) or not (Off).
Rx
Select “On” if you want the selected part to receive
MIDI data.
Rx Ch
Allows you to assign a MIDI receive channel to the
selected part.
Rx Shift
This parameter allows you to transpose the note
messages received from an external MIDI instrument
or computer. The maximum possible transposition is
four octaves up (+48) or down (–48). Each step repre-
sents a semi-tone.
Rx Limit Low/Limit High
“Limit Low” and “Limit High” allow you to set the
note range to be received. If not all note messages
received on a given MIDI channel should be played by
the selected BK-5 part, narrow down the range.
NOTE
The “Limit Low” value cannot be higher than the “Limit
High” value (and vice versa).
Parameter Setting
Tx Off, On
Parameter Setting
Tx Ch 1~16
Parameter Setting
Tx Shift –48~0~+48
Parameter Setting
Tx Local Off, On
Filter Setting Explanation
Program
Change Off, On Select “On” to transmit pro-
gram change and bank
select (CC00, CC32) mes-
sages.
Pitch Bender Off, On Select “On” to transmit
Pitch Bend messages.
Modulation Off, On Select “On” to transmit
Modulation messages
(CC01).
Volume Off, On Select “On” to transmit Vol-
ume messages (CC07).
Panpot Off, On Select “On” to transmit
Panpot messages (CC10).
Expression Off, On Select “On” to transmit
Expression messages
(CC11).
Reverb Off, On Select “On” to transmit
Reverb messages (CC91).
Chorus Off, On Select “On” to transmit
Chorus messages (CC93).
Select All Off, On Select “On” to transmit all
MIDI message listed above.
Parameter Setting
Rx Off, On
Parameter Setting
Rx Ch 1~16
Parameter Setting
Rx Shift –48~0~+48
Parameter Setting
Rx Limit Low C–~G9
Rx Limit High C–~G9
Filter Setting Explanation
