C34 Gas Stove
Venting Arrangements - Vertical
Terminations
Rigid Pipe System
(Propane & Natural Gas)
The C34 is approved for a maximum 30 ft. straight vertical, with Rigid
Pipe vent systems for Propane and Natural Gas.

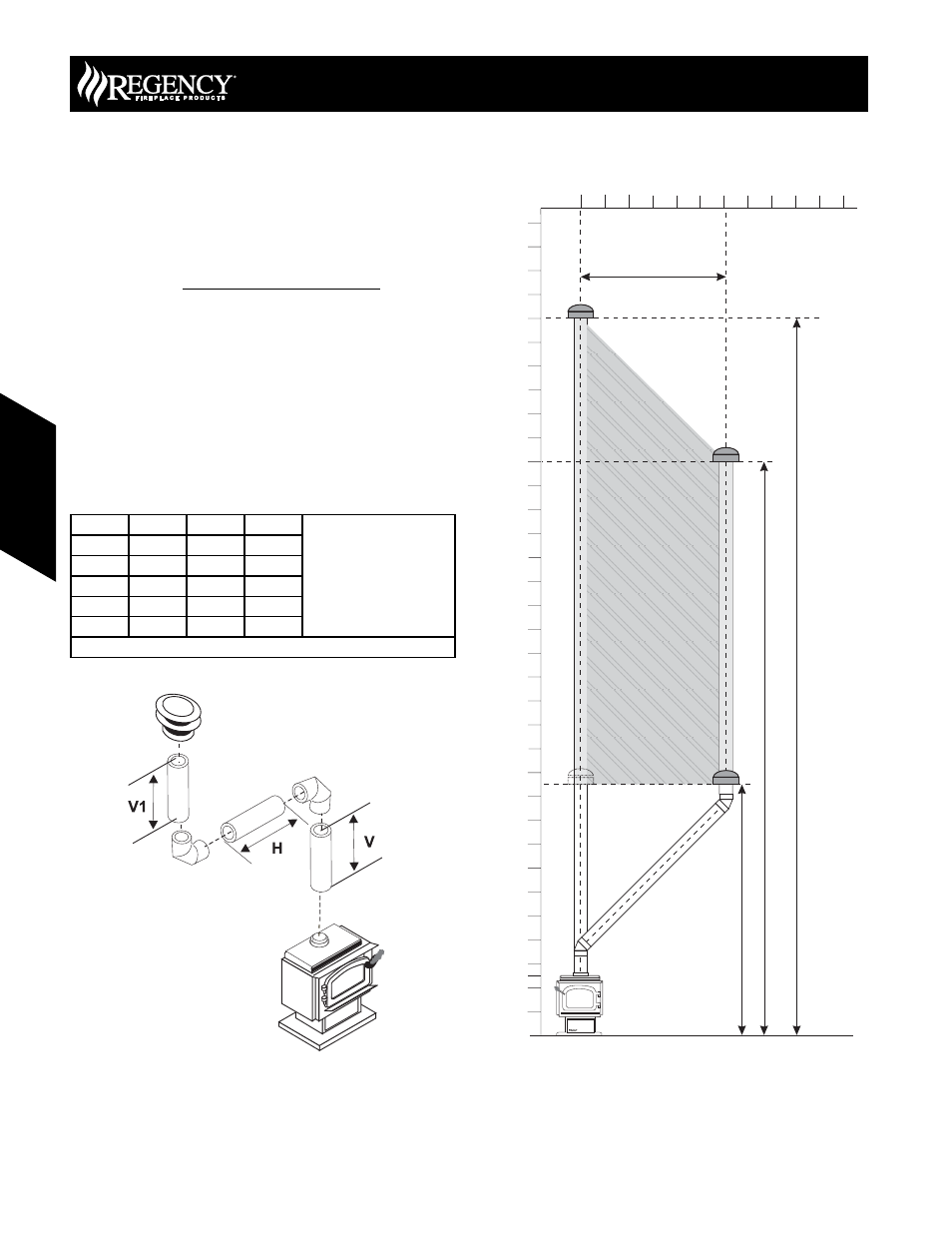

The shaded area in the diagram (right) shows allowable venting
confi gurations with a maximum of two 45° elbows allowed. Terminations
falling in the shaded area must have the Vent Restrictor Position set to
“R” Right. (refer to Page 113)
•
Vent must be supported at offsets.
•
Horizontal sections must be supported every 3 feet
•
Firestops are required at each floor level and whenever
passing through a wall.
•
Maintain clearances to combustible materials.
•
Minimum of 1’ pipe section between elbows.
Vertical Venting with Two (2) 90° Elbows
Two 45° elbows = One 90° elbow
Option
V
H V+
V1
Maximum total pipe length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A)
1’ Min.
4’ Max.
2’ Min.
B)
2’ Min.
5’ Max.
3’ Min.
C)
3’ Min.
6’ Max.
4’ Min.
D)
4’ Min.
7’ Max.
5’ Min.
E)
5’ Min.
8’ Max.
6’ Min.
Vent Restrictor in position “C” (Center), refer to page 113.
Maximum:
30
ft.
(9.1m)
Minimum
10
’6”
(3.2m)
Max. 6’ (1.8m)
Maximum:
24
ft.
(7.3m)
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
V
ertical
Height
(Feet)
32
34
6
8
Horizontal (Feet)
2
0
4
10
