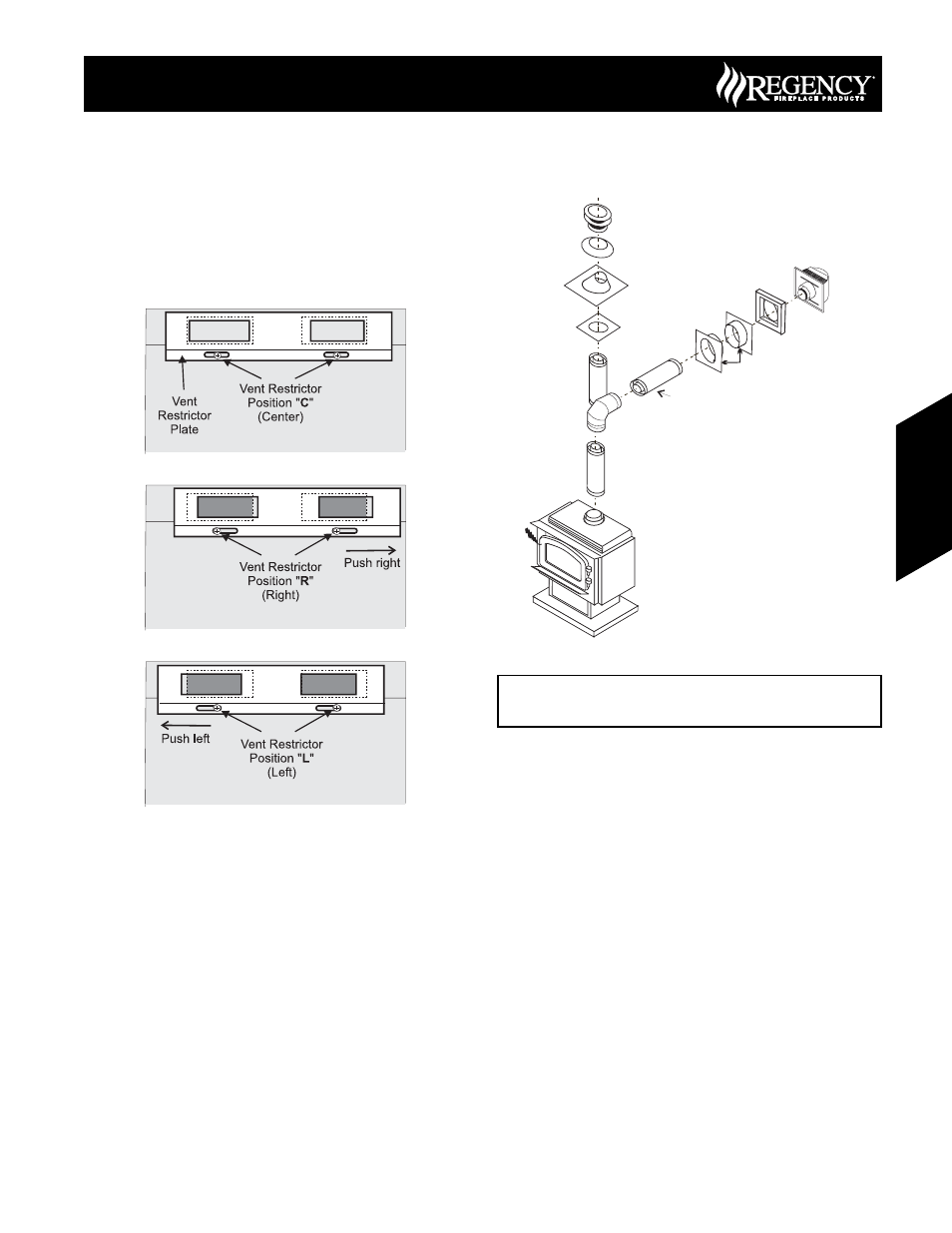

Vent Restrictor Position
Vent restriction is required for certain venting installations, see the
diagrams in "Venting Arrangement" section to determine if they are
required for your installation.
The vent restrictor has three settings: "C" Center (factory setting), "L"
Left, and "R" Right. Simply loosen the screws and push the vent restrictor
plate to the correct position. Tighten the screws.
Pipe Length
Vertical
Termination
Cap
Storm Collar
Flashing
Ceiling Firestop
24" Pipe
Length
Adj.Pipe Length
11" - 14-5/8"
90 Elbow o
Horizontal
Termination Ca
# 946-523/P
Wall Thimble
Vinyl Siding
Standoff (Optional)
Rigid Pipe Venting Systems
Horizontal or Vertical Terminations
C34 Gas Stove
If required by the external termination location the listed
alternate termination caps may be used. (Refer to Page 11)
