Min.
12"*
(305mm)
Adequate
drainage
Window
Well
Gravel
Dura-Vent
Snorkel
C34 Gas Stove
Pipe Length
Adapter
Trim Collar
Trim
Collar
4" ID Liner
Spacer
Spring
Adjustable Pipe
Length 13-1/2" - 24",
2 pieces
90 Elbow o
Thimble
Cover
Termination Cap
(Part# 946-523/P)
AstroCap
Wall Thimble
(only required
in Canada)

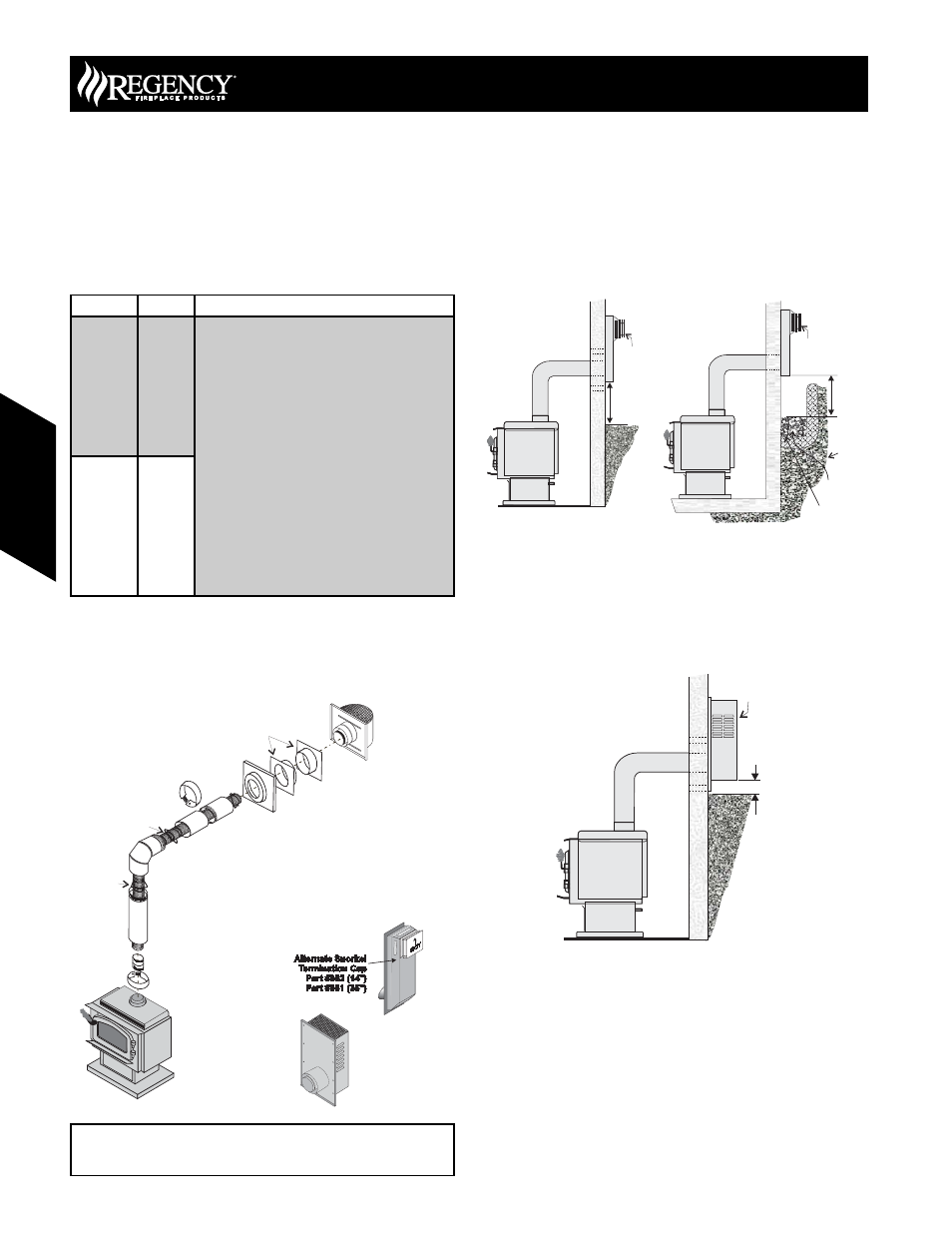

Regency Direct Vent System
Horizontal Terminations Only
These venting systems, in combination with the C34 Direct Vent Gas
Fireplace, have been tested and listed as a direct vent heater system
by Warnock Hersey. The location of the termination cap must conform
to the requirements in the Vent Terminal Locations diagram.
FPI Direct Vent (Flex) System Termination Kits include all the parts
needed to install the C34 using a fl exible vent.
FPI Kit # Length Contains:
#946-116 2 Feet 1) 6-5/8” Rigid Pipe Section (Kit length)
2) 4” fl exible liner (Kit length)
3) spring spacers (4)
4) 90° Elbow
5) Adjustable pipe section 13-1/2” to 24”
6) thimble cover (1)
7) thimble (1)
8) adapter
9)
AstroCap termination cap (1)
10) trim collar (2)
11) tube of Mill Pac (1)
12) S.S. screws #8 x 1-1/2”, self-tap, (12)
13) Blk. screws #8 x 1-1/2”, self-tap, (14)
14) Blk. screws #8 x 1-1/2” drill point, (4)
15) S.S. screws #8 x 1-1/2” drill point, (4)
16) Wood screws #8 x 1” (8)
17) vinyl siding standoff
(optional
#946-206)
#946-216 4 Feet
Notes:
1)
Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex
installations.
3) Horizontal sections must be supported every 3 feet.
Alternate Horizontal
Termination Caps
Alternate:
Horizontal
Riser Vent
Terminal
Part# 640-530/P
If required by the external termination location the listed
alternate termination caps may be used. (Refer to Page 11)
Snorkel Terminations
Snorkel Terminations:
For installations requiring a vertical rise on the exterior of the building,
14-inch and 36-inch tall Snorkel Terminations and the Riser Vent are
available. Follow the same installation procedures as used for standard
Horizontal Termination. NEVER install the snorkel upside down.
Below Grade Snorkel Installation (Dura-Vent Only)
If the Snorkel Termination must be installed below grade, i.e. basement
application, proper drainage must be provided to prevent water from
entering the Snorkel Termination. Refer to Rigid Pipe Installation
instructions for details. Do not attempt to enclose the Snorkel within the
wall, or any other type of enclosure.
Riser Vent
Termination
Min. 6-1/4"*
(159mm)
Dura-Vent
Snorkel
Min. 12"*
(305mm)
