HZ54 Regency Horizon TM Gas Fireplace 42
MAINTENANCE
VALVE TRAY REPLACEMENT
MAINTENANCE
1) Turn the unit off and allow it to cool down to room temperature.
2) Turn off the gas supply to the unit.

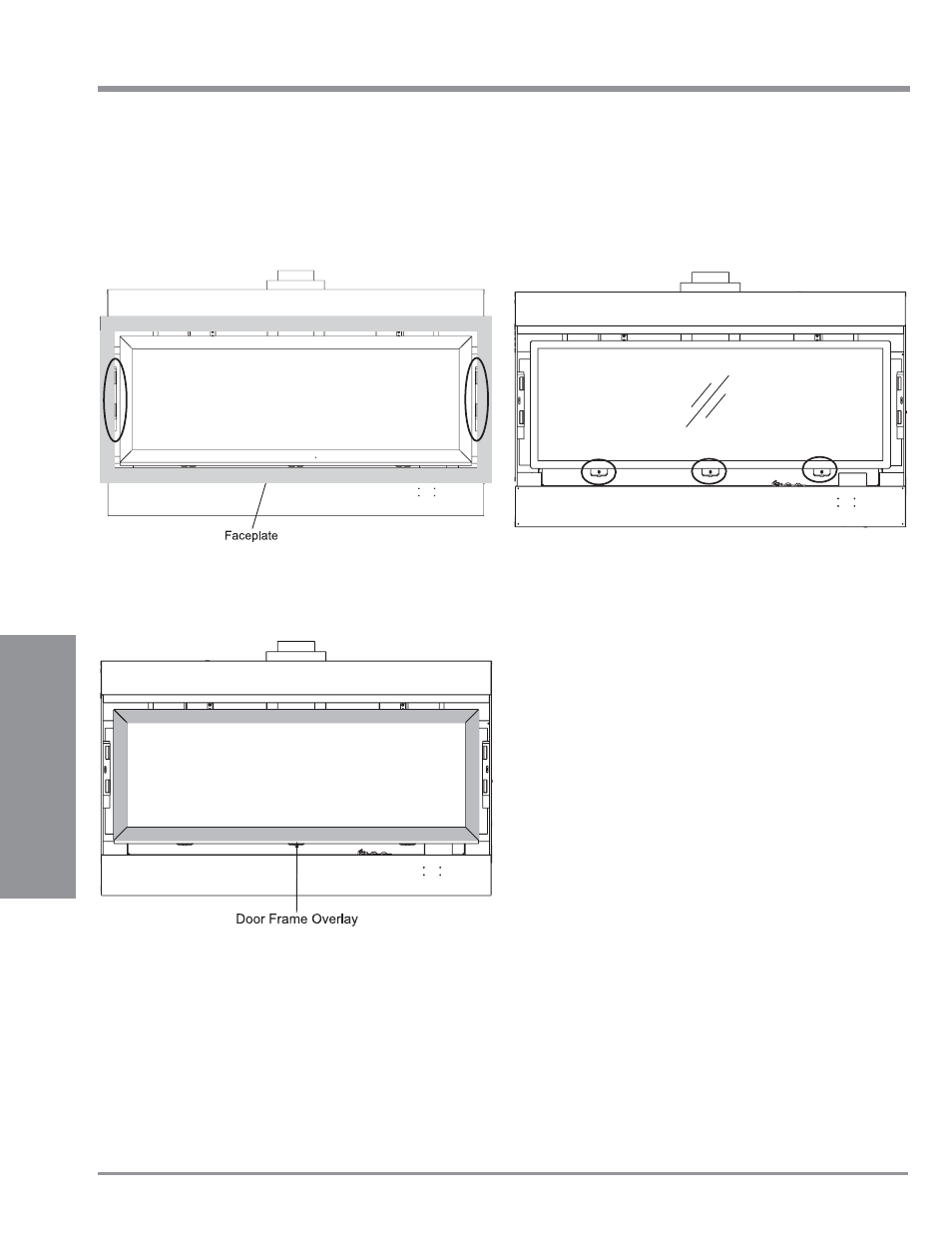

3) Remove the faceplate by lifting it up off the hinges on the sides of the
fi rebox.
4) Remove the door frame overlay by swinging out 45 o from the bottom
and lift up and out.
5) Remove the glass door.
a) Remove the 3 screws shown below at the bottom of the glass
door
.
b) Swing the door out 45 o from the bottom and lift up and out.
