HZ54 Regency Horizon TM Gas Fireplace 12
INST
ALLA
TION

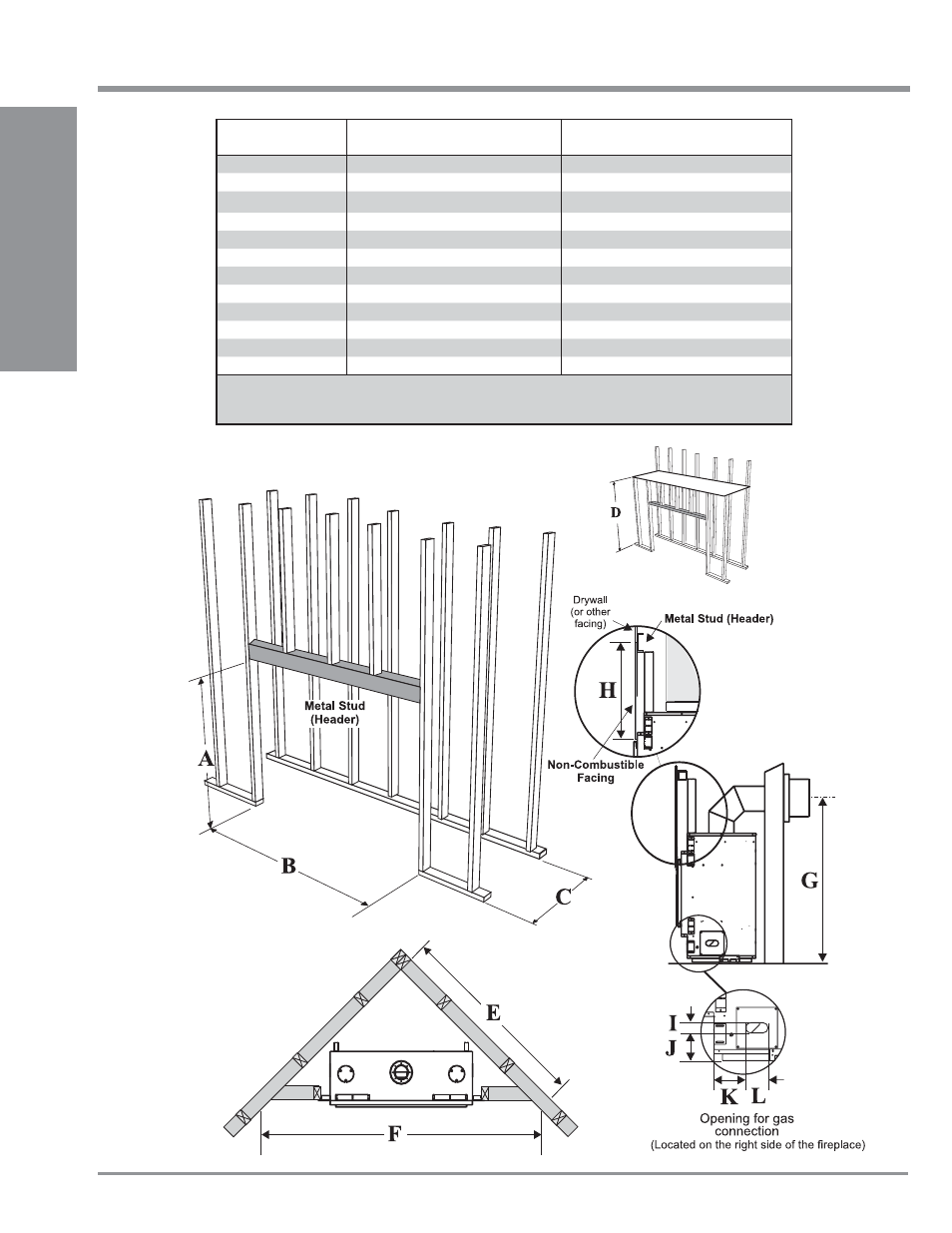

Framing
Dimensions
Description HZ54
A Framing Height 46-5/8” (1184mm)
B Framing Width 60” (1524mm)
C
*
Framing Depth
* 22” (559mm)
D Minimum Height to Combustibles 51” (1295mm)
E Corner Wall Depth 72" (1829mm)
F Corner Facing Wall Width 101-7/8 (2586mm)
G Vent Centerline Height 44” (1118mm)
H Non-combustible facing height 20” (508mm)
I Gas Connection Opening Height 1-1/2” (38mm)
J Gas Connection Height 4” (102mm)
K Gas Connection Inset 7-1/4” (184mm)
L Gas Connection Opening Width 3-1/4” (83mm)
*
Framing depth measurement is noted with the side nailing strips set as far forward on the fi rebox as possible.
The side nailing strips can be adjusted back up to 1” to allow for varying thicknesses in non-combustible mate-
rial & wall fi nishes.
