Chapter 6. Troubleshooting
6.1 Flowchart to Remedy the Troubles

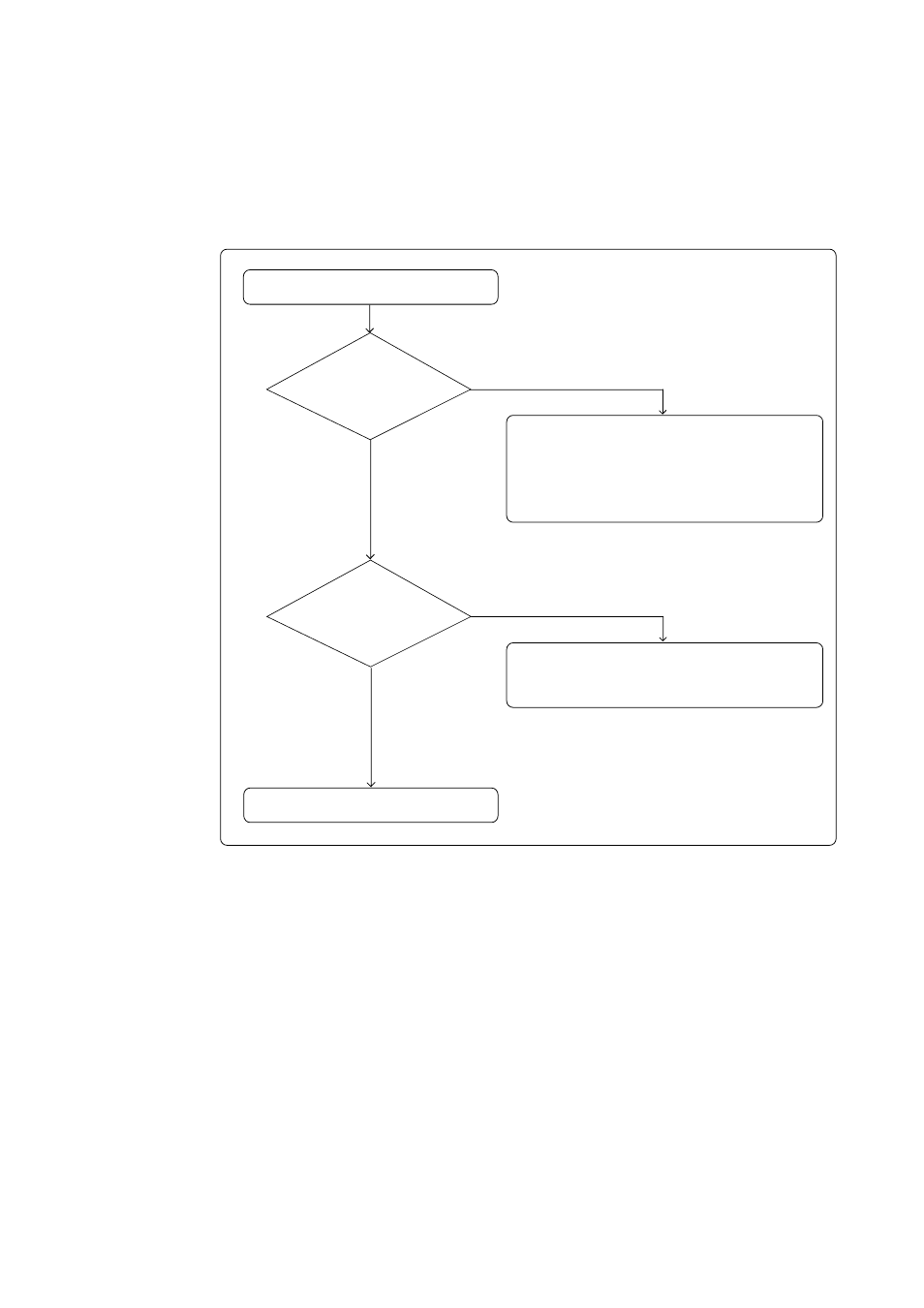

Figure 6.1 shows the flowchart to remedy the troubles from when power to the emulator is activated
until the emulator debugger starts up. Check this while the target system is disconnected.
Figure 6.1 Flowchart to remedy the troubles
LED status not normal
Display not normal.
Error displayed.
Turning on the power of PC4701
Program window of emulator debugger displayed
LED status of
PC4701 front panel
Init dialog box of emulator
debugger displayed
1. Check emulator system connections.
See, "3.6 Connecting the PC4701 and Emulation Pod"
(page 36).
2. Redownload the firmware.
See "4.2 Downloading Firmware" (page 42).
3. Restart the PC4701 system.
1. Check the environmental setting etc. of the emulator debugger.
See the user's manual of the emulator debugger.
2. Reinstall the emulator debugger.
