(2) Inside of Emulation Pod

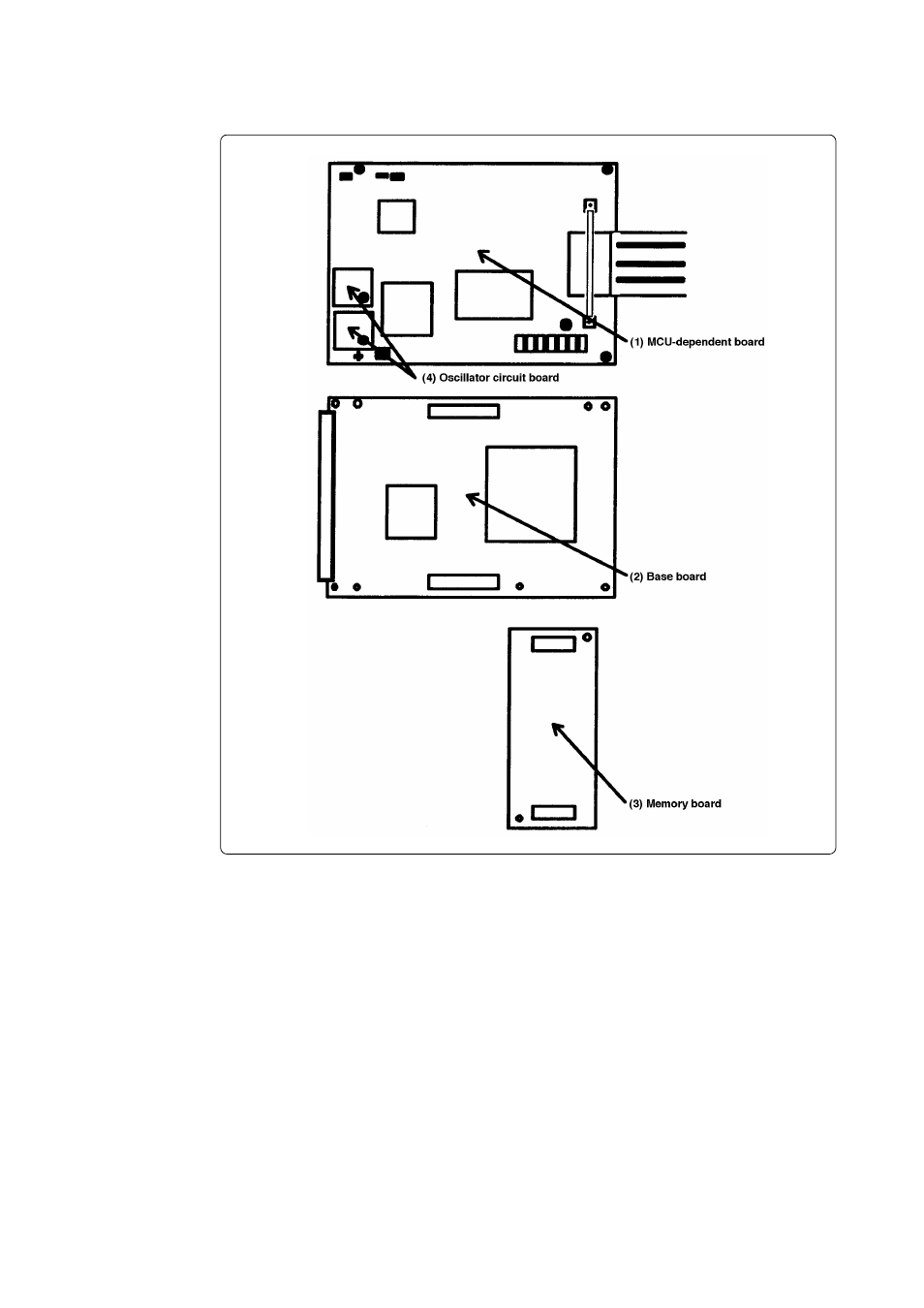

Figure 2.2 Internal view of emulation pod
(1) MCU-dependent board
Board which groups parts (pins and added functions) which vary according to MCU model.
(2) Base board
Board for the M16C/60 Series MCUs which controls the interface with the PC4701 and the
evaluation MCU.
(3) Memory board
Board on which is mounted the emulation memory (1MB) and the map memory (4 bits ×1M) for
the M16C/60 Series MCUs.
(4) Oscillation circuit board
Oscillator circuit board on which the 10.000MHz of oscillation module device and 32.768kHz
of crystal oscillator are mounted.
