3.7 Connecting the Target System
There are five ways available to connect the emulation pod to target systems as shown in Figure 3.16.
CAUTION
Notes on Connecting Target Systems:
• Take care not to attach the converter board in a wrong direction. It may cause a fatal
damage to the emulation pod.
• The small connectors of FLX100 and FLX-100LCC are guaranteed for only 20
insertion/removal iterations.

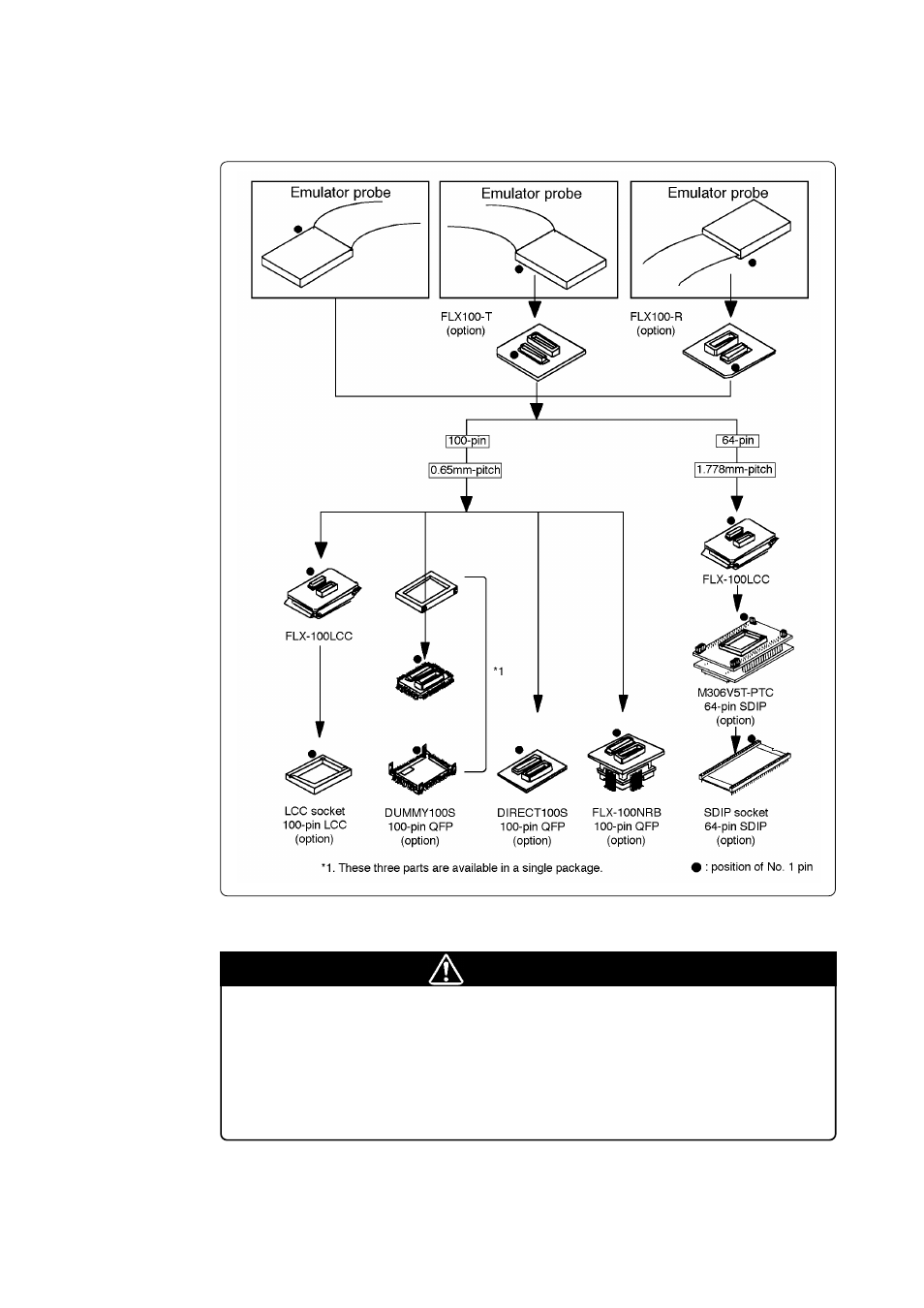

Figure 3.16 Connecting emulation pod and target systems
