(3) LED Display When PC4701 Starts Up Normally

After the emulator starts up, check the status of the LEDs on the front panel to see whether emulation

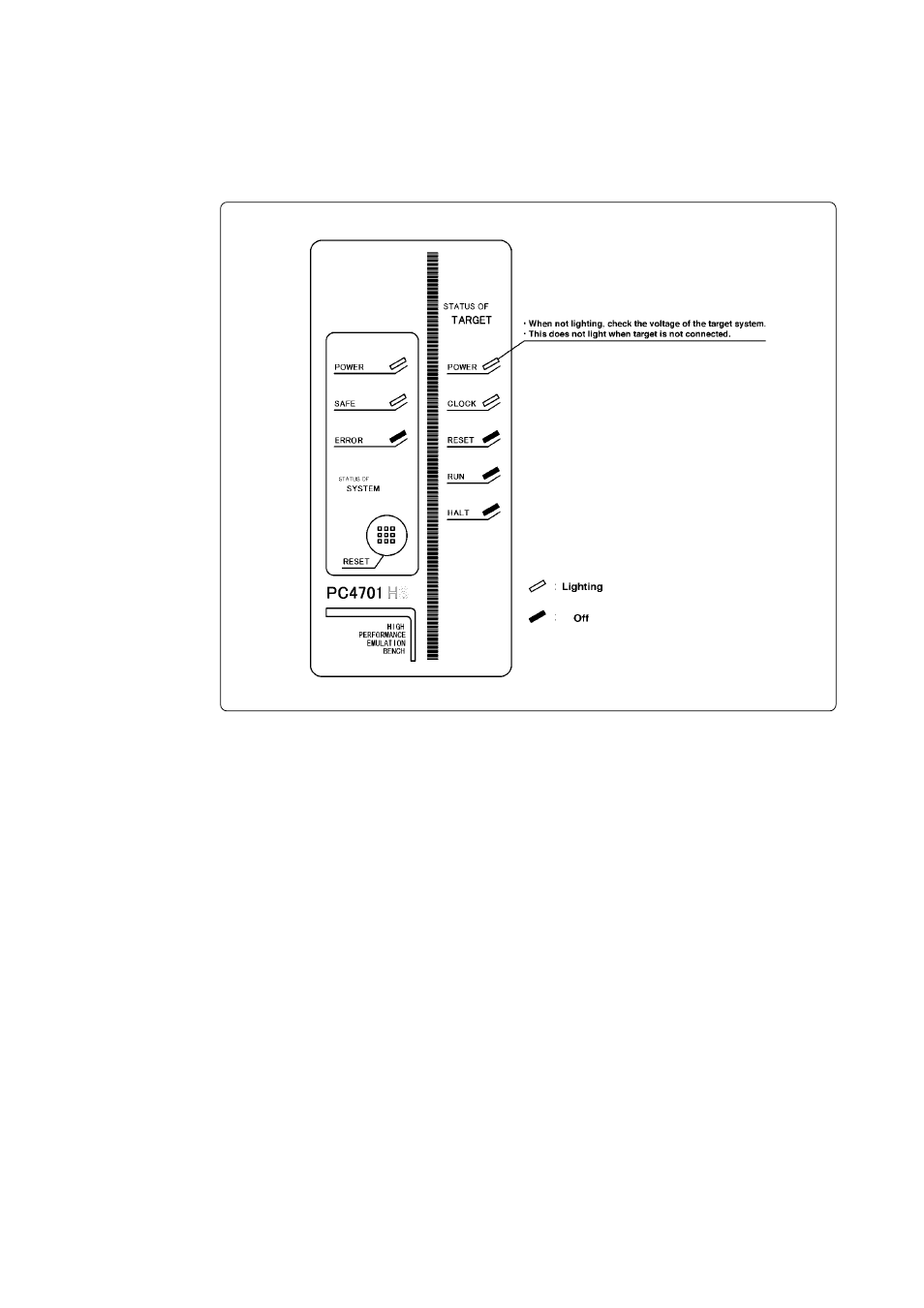

pod operation is enabled or not. Figure 4.1 shows front panel LED lighting status when the emulator
is turned ON.

Figure 4.1 LED display when PC4701 turned on
