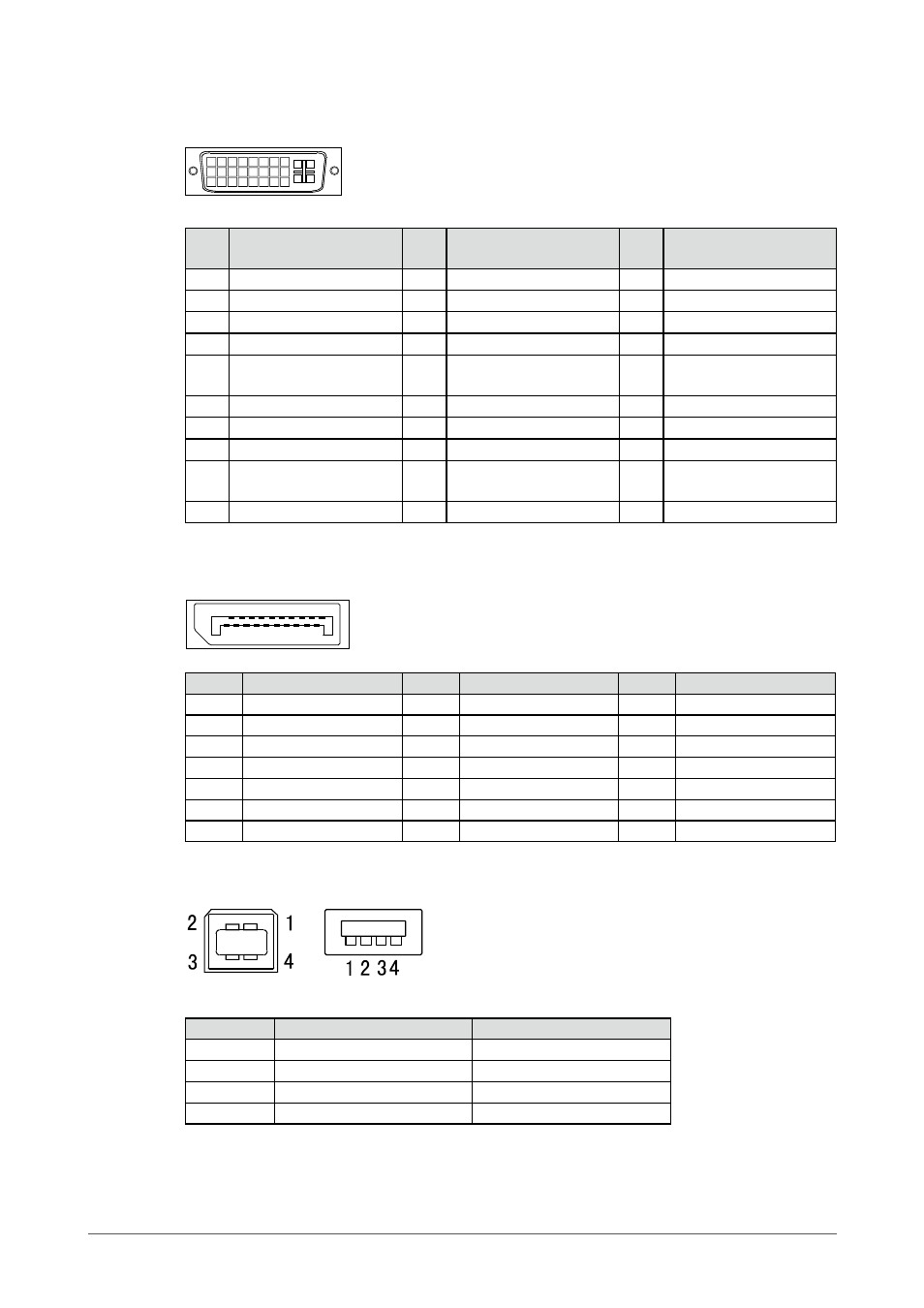

Connector Pin Assignment
• DVI-I connector
1 2 3 4 5 6 7 8
9
10 11 12 13 14 15 16
19 20 21
17 18
22 23 24
C1 C2
C3 C4
C5
Pin
No.
Signal
Pin
No.
Signal
Pin
No.
Signal
1
T.M.D.S. Data 2-
11 T.M.D.S. Data1/3 Shield
21 NC*
2
T.M.D.S. Data 2+
12 NC*
22 T.M.D.S. Clock shield
3
T.M.D.S. Data2/4 Shield
13 NC*
23 T.M.D.S. Clock+
4
NC*
14 +5V Power
24 T.M.D.S. Clock-
5
NC*
15 Ground (return for +5V,
Hsync, and Vsync)
C1 Analog Red
6
DDC Clock (SCL)
16 Hot Plug Detect
C2 Analog Green
7
DDC Data (SDA)
17 T.M.D.S. Data0-
C3 Analog Blue
8
Analog Vertical Sync
18 T.M.D.S. Data0+
C4 Analog Horizontal Sync
9
T.M.D.S. Data1-
19 T.M.D.S. Data0/5 Shield
C5 Analog Ground(analog
R,G,&B return)
10 T.M.D.S. Data1+
20 NC*
(NC*: No Connection)
• DisplayPort connector
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
Pin No.
Signal
Pin No.
Signal
Pin No.
Signal
1
ML Lane3-
8
Ground
15
AUX CH+
2
Ground
9
ML Lane1+
16
Ground
3
ML Lane3+
10
ML Lane0-
17
AUX CH-
4
ML Lane2-
11
Ground
18
Hot Plug Detect
5
Ground
12
ML Lane0+
19
Return
6
ML Lane2+
13
CONFIG1
20
DP PWR
7
ML Lane1-
14
CONFIG2
• USB port
Upstream
Series A connector
Series B connector
Downstream
Contact No.
Signal
Remarks
1
VCC
Cable power
2
- Data
Serial data
3
+ Data
Serial data
4
Ground
Cable ground
