Lower Feeder Unit (LFU)
135
7

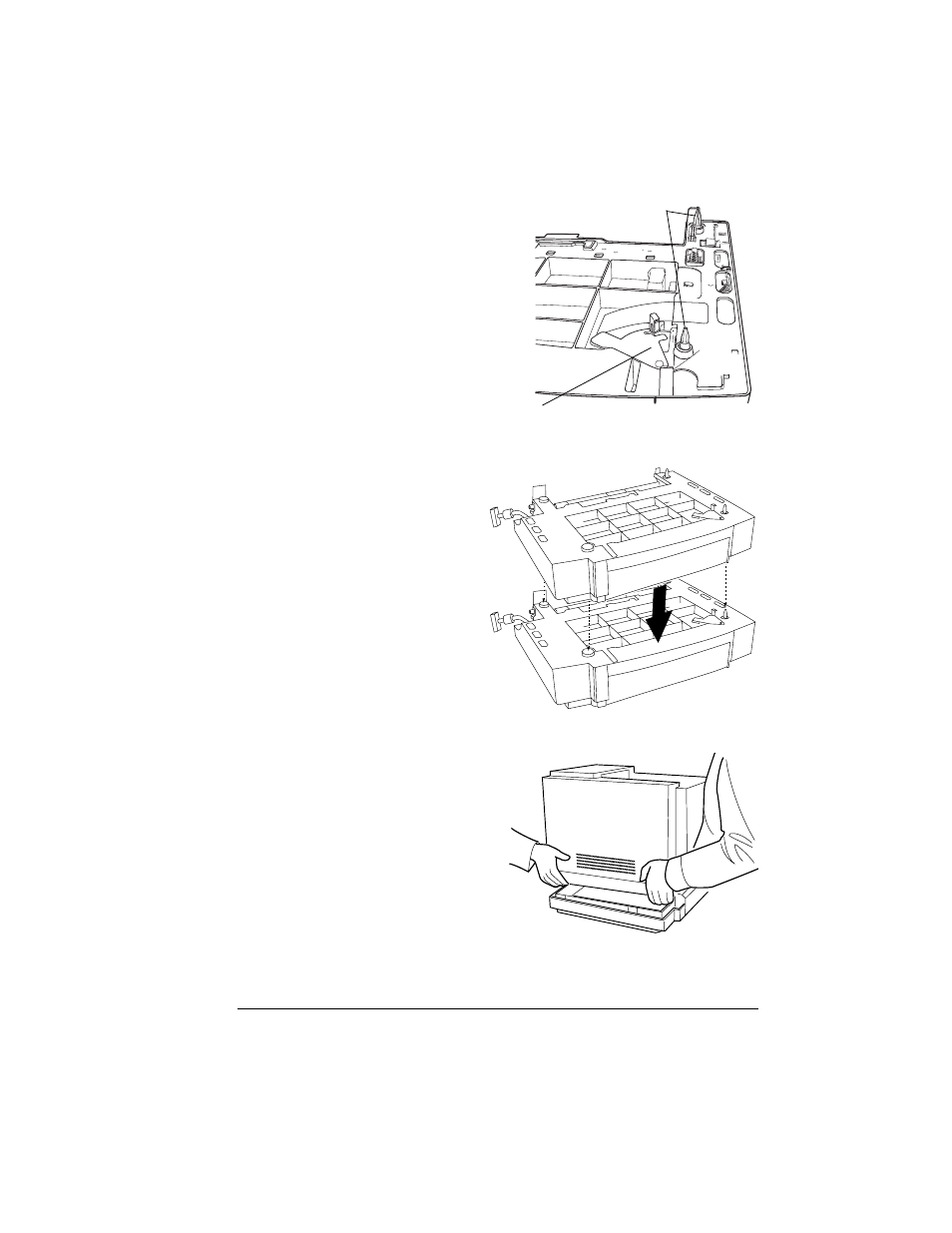

Check the front and rear positions
of the positioning pins on the
LFU(s), and make sure the metal
coupler is in the open position.
8
For dual LFU installations:
After verifying that both
metal couplers are in the
open position, align the
positioning pins and set one
LFU on top of the other.
9
Set the printer on top of
the LFU(s) .
Be sure to align the printer and
LFU(s) as precisely as possi-
ble. Make sure the printer is not
tilted on top of the LFU(s).
Positioning pins
M etal coupler (open position)
