Hardware Description
The WAG102 front and rear hardware functions are described below.
Front Panel
The following table explains the LED indicators:

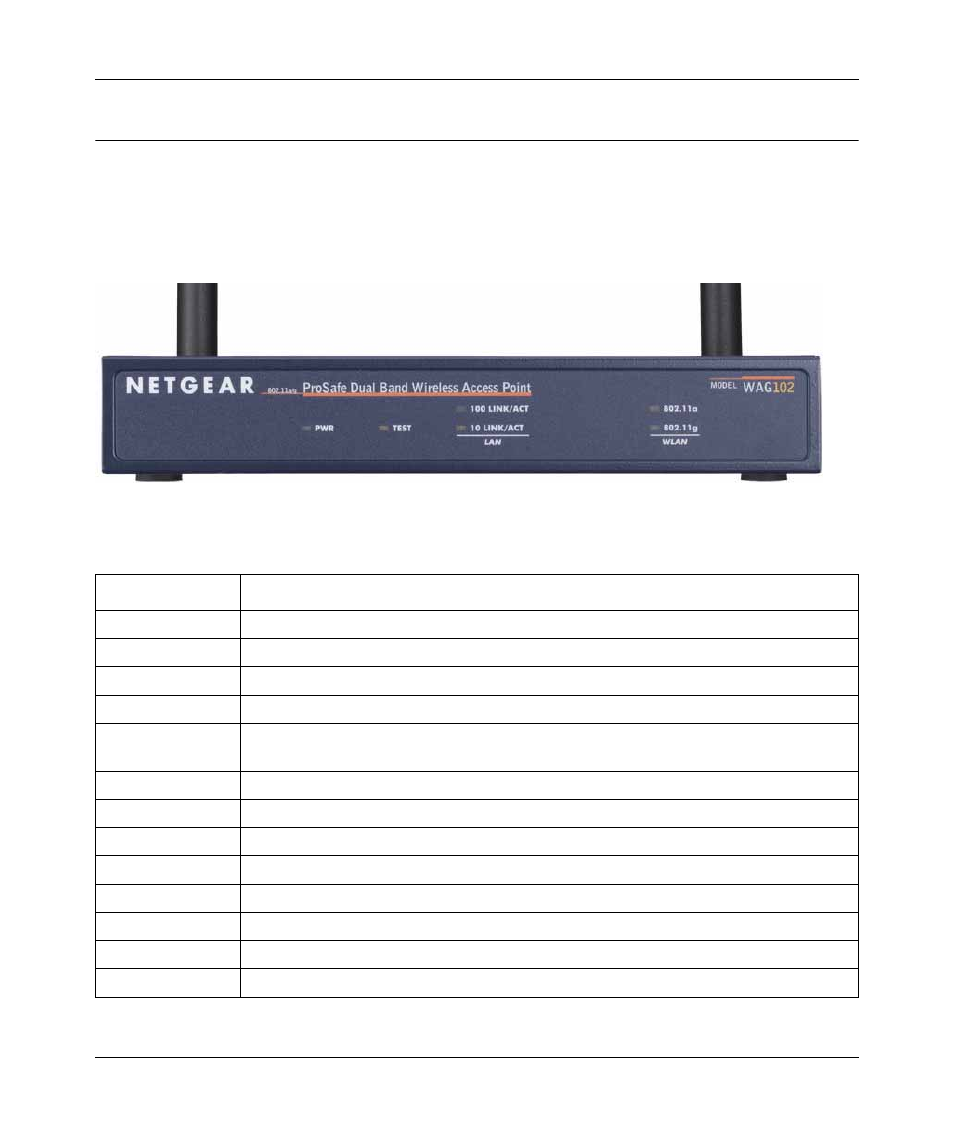

Figure 2-1
LED DESCRIPTION
PWR Power Indicator
Off No power.
On Power is on.
TEST Self Test Indicator
Blink Indicates self test, loading software, or system fault (if continues).
Note: This LED may blink for a minute before going off.
100 LINK/ACT Ethernet LAN Speed Indicator
Off Indicates no 100 Mbps Ethernet link detected
Green Solid On 100 Mbps Fast Ethernet link detected, no activity
Green Blink Indicates data traffic on the 100 Mbps Ethernet LAN.
10 LINK/ACT Ethernet LAN Link Activity Indicator
Off Indicates no 10 Mbps Ethernet link detected.
Green Solid On 10 Mbps Fast Ethernet link detected, no activity.
Green Blink Indicates data traffic on the 10 Mbps Ethernet LAN.
