November 2005 Installing the server and connecting the peripheral devices
Part 2: 703t Server Hardware Installation 63

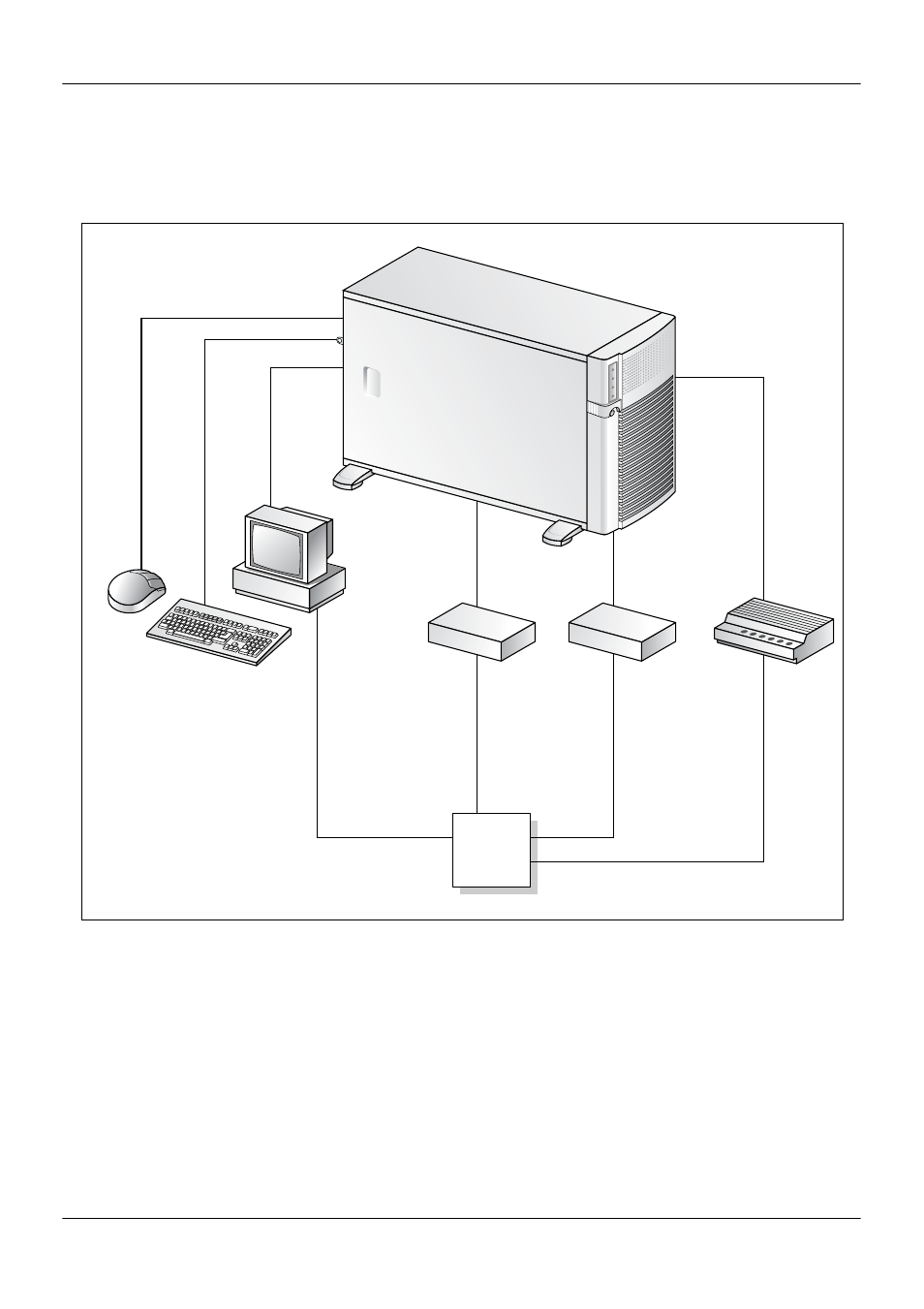

Before you connect the server to the power source, review the following
diagram (and the warning that follows) to ensure that all peripheral
hardware devices are in place:
G101637
CallPilot
server
Modem
Mouse
Keyboard
Monitor
RJ-45
AC
power AC
power AC
power AC
power
RJ-45 RS-232
AC
power
source
ELAN hub
(M1 or
Succession
1000 only) CLAN hub
(optional)
Video
