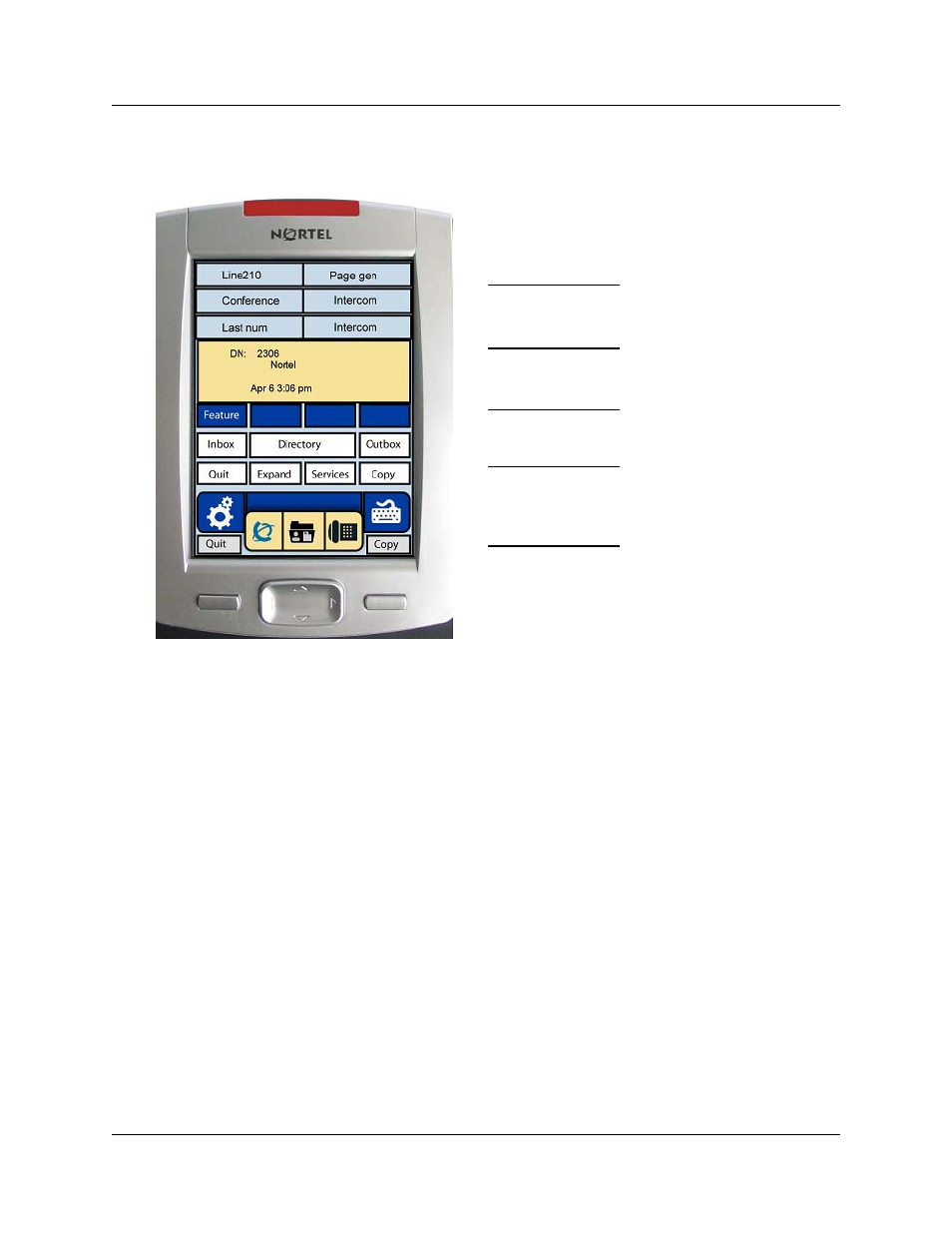

Figure 3 shows an example of the display and describes each area.
Figure 3 Display area
Note: Your display can differ slightly from this picture.
Programmable line (DN)/ feature soft key area
The programmable line (DN)/feature soft key area shows the label and status of the six
programmable soft keys. For more information about these soft keys, refer to
“Program soft keys”
on page 18 .
Information area
The information area shows:
• the extension number of the telephone
• a line for general information (for example, caller ID, company name)
• the date and time when the telephone is not in use, and changes to show features and call
information when the telephone is in use
Soft key area
The soft key area shows the Feature soft key and three additional display soft keys. These labels
vary depending on the feature in use. You cannot reprogram these soft keys.
Programmable line
Tools/Navigation area
Feature key area
Soft key area
Information area
(DN)/feature soft keys
