Installing the NI cDAQ-9172

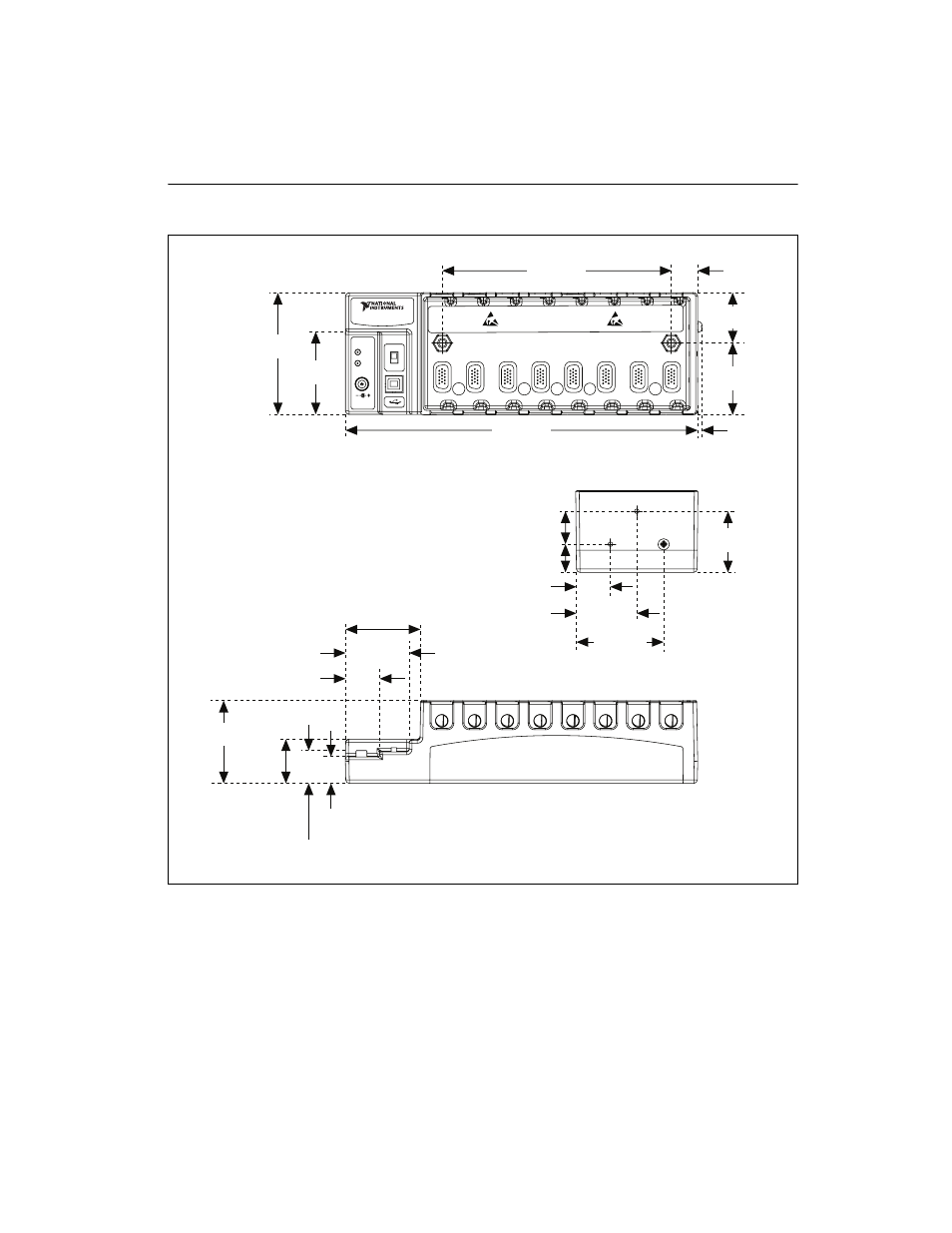

Figure 2 shows the dimensions of the NI cDAQ-9172 chassis.
Figure 2. NI cDAQ-9172 with Dimensions in Millimeters (Inches)
53.8 mm
(2.12 in.)
46.0 mm
(1.81 in.)
23.7 mm
(0.94 in.)
20.3 mm
(0.80 in.)
25.0 mm
(0.98 in.)
44.1 mm
(1.74 in.)
24.8 mm
(0.98 in.)
23.2 mm
(0.91 in.)
19.1 mm
(0.75 in.)
31.7 mm
(1.25 in.)
58.9 mm
(2.32 in.)
44.1 mm
(1.74 in.)
63.1 mm
(2.49 in.)
36.4 mm
(1.43 in.)
51.7 mm
(2.04 in.)
165.1 mm
(6.50 in.)
59.6 mm
(2.35 in.)
88.1 mm
(3.50 in.)
254.0 mm
(10.00 in.)
NI cDAQ-9172
11-30 VDC
15 W
ON
OFF Active
8 7 6 5 4 3 2 1 Ready
19.0 mm
(0.75 in.)
4.10 mm
(0.16 in.)
