EXTERNAL CONTROL
OUT
2
IN S-VIDEO IN
DVI AUDIO3
R
L (MONO)
R
L (MONO)
R
L (MONO)
AUDIO2 AUDIO1 VGA
HD VD
R/Cr/Pr G/Y B/Cb/pb
RGBHV / DVD/HD2
Y Cr/Pr Cb/Pb
DVD/HD1
IN
IN/OUT
VIDEO AC IN
R L
SPEAKER (S)
1
3 4 5 6 7 8 9
12
11 10
13 14

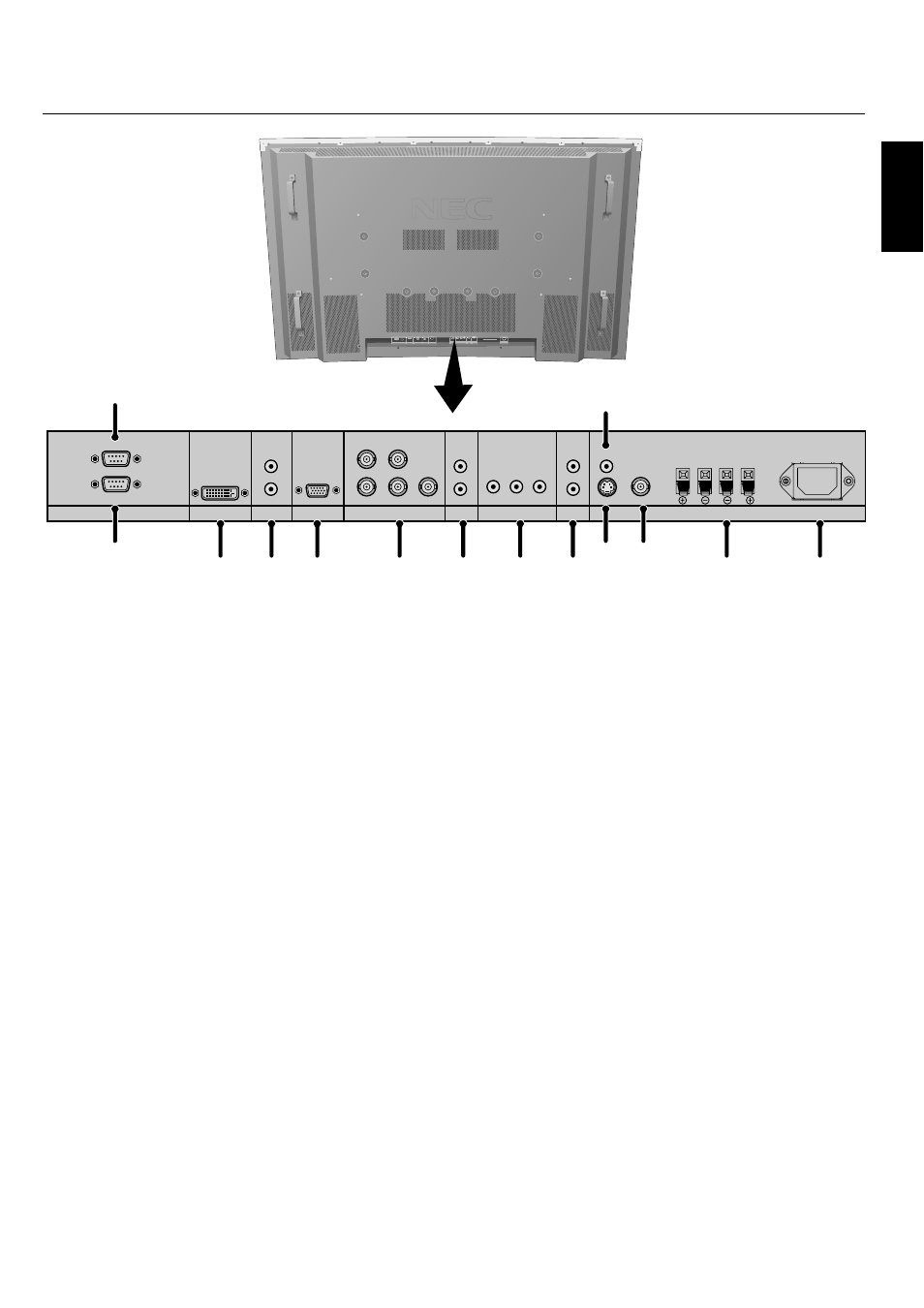

Part Names and Functions
1) EXTERNAL CONTROL OUT (D-Sub 9 pin)
Connect RS-232C output to a second monitor.
2) EXTERNAL CONTROL (D-Sub 9 pin)
Connect RS-232C input to external equipment such as a
PC in order to control RS-232C functions.
3) DVI
Input digital RGB signals from a computer or HDTV
device having a digital RGB output.
4) AUDIO3
Input the audio signal from external equipment such as a
computer, VCR or DVD player.
5) VGA (Mini D-Sub 15 pin)
Analog computer input or output.
For proper operation select "D-SUB INPUT" in the
OPTION1 OSD menu.
6) RGBHV/DVD/HD2
RGBHV: Input RGB signals from RGB equipment.
A Sync-on-Green signal can be connected using the
G connector.
DVD/HD2: Connect equipment such as a DVD player,
HDTV device, or set-top box.
Th
is input can be used with an RGB or component source.
For proper operation select "BNC INPUT" in the
OPTION1 OSD menu.
7) AUDIO2
Input the audio signal from external equipment such as a
computer, VCR or DVD player.
8) DVD/HD1
Connect equipment such as a DVD player, HDTV device,
or set-top box.
9) AUDIO1
Input the audio signal from external equipment such as a
computer, VCR or DVD player.
10) S-VIDEO in
Input S-video.
11) VIDEO1
Composite video input or output.
12) VIDEO2
Composite video input.
13) EXTERNAL SPEAKER (L and R) connector
Connects to optional speakers. Output the audio signal
from AUDIO 1, 2, and 3 to external speakers.
NOTE: Speaker Terminal is for 8W + 8W (8 ohm).
14) AC IN
Connects with the supplied power cord.
Information:
For Y/Cb/Cr connections, use the DVD/HD1 or DVD/HD2
terminals.
For SCART connections there are 3 ways to connect:
SCART1: Connect R/G/B to the DVD/HD2 terminals and
composite sync. to the HD terminal.
SCART2: Connect R/G/B to the DVD/HD2 terminals and
composite sync. to the VIDEO1 terminal.
SCART3: Connect R/G/B + composite sync. to the VGA
terminal.
Terminal Panel
