Minimizing glitches on the output signal, Digital i/o, Digital i/o circuitry – National Instruments 6008 User Manual

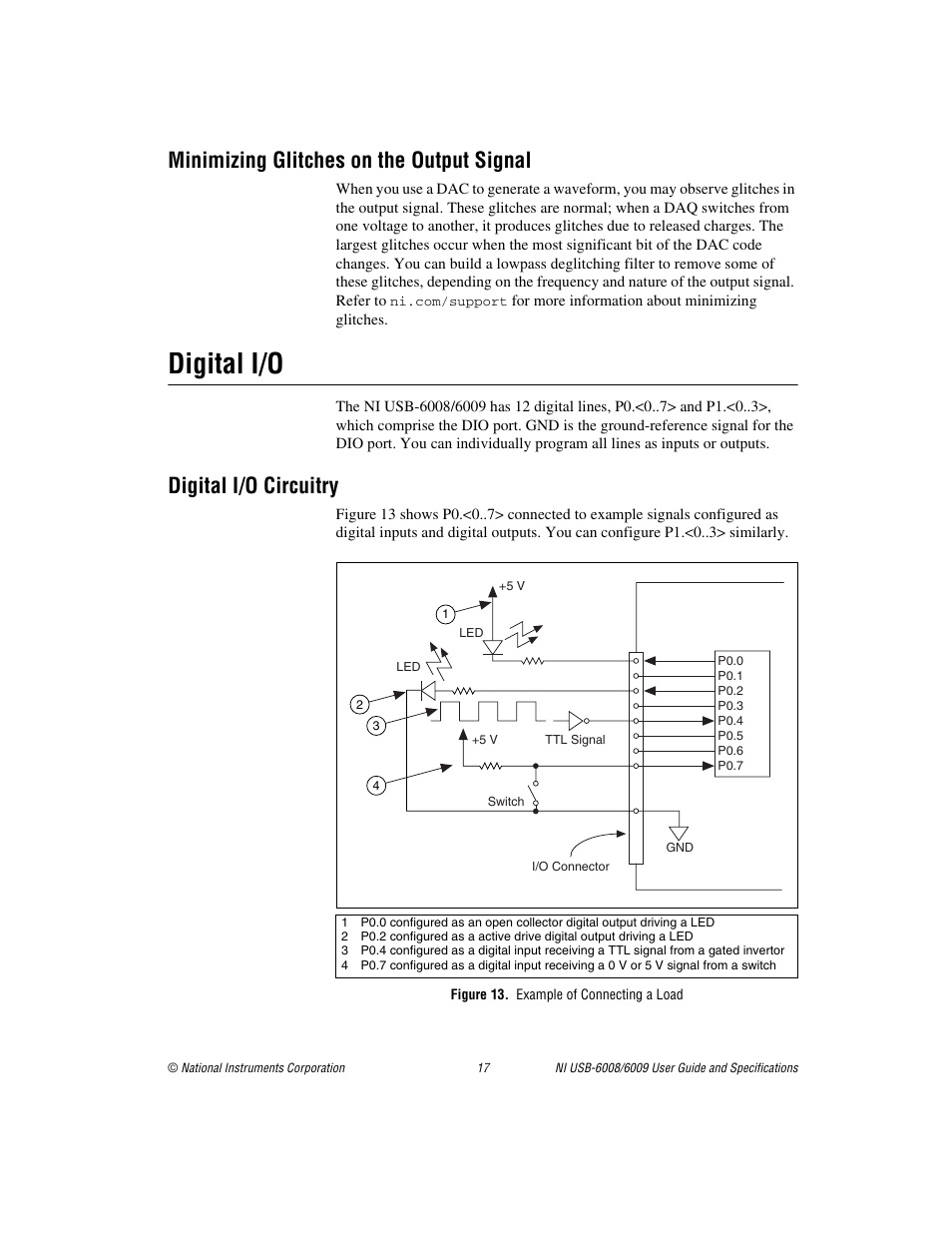

Page 17: Figure 13. example of connecting a load
