Mechanical Dimensions
Figure 7 shows the mechanical dimensions of the FP-RTD-124
installed on a terminal base. Dimensions are given in millimeters
[inches]. If you are using the cFP-RTD-124, refer to the Compact
FieldPoint controller user manual for the dimensions and cabling
clearance requirements of the Compact FieldPoint system.

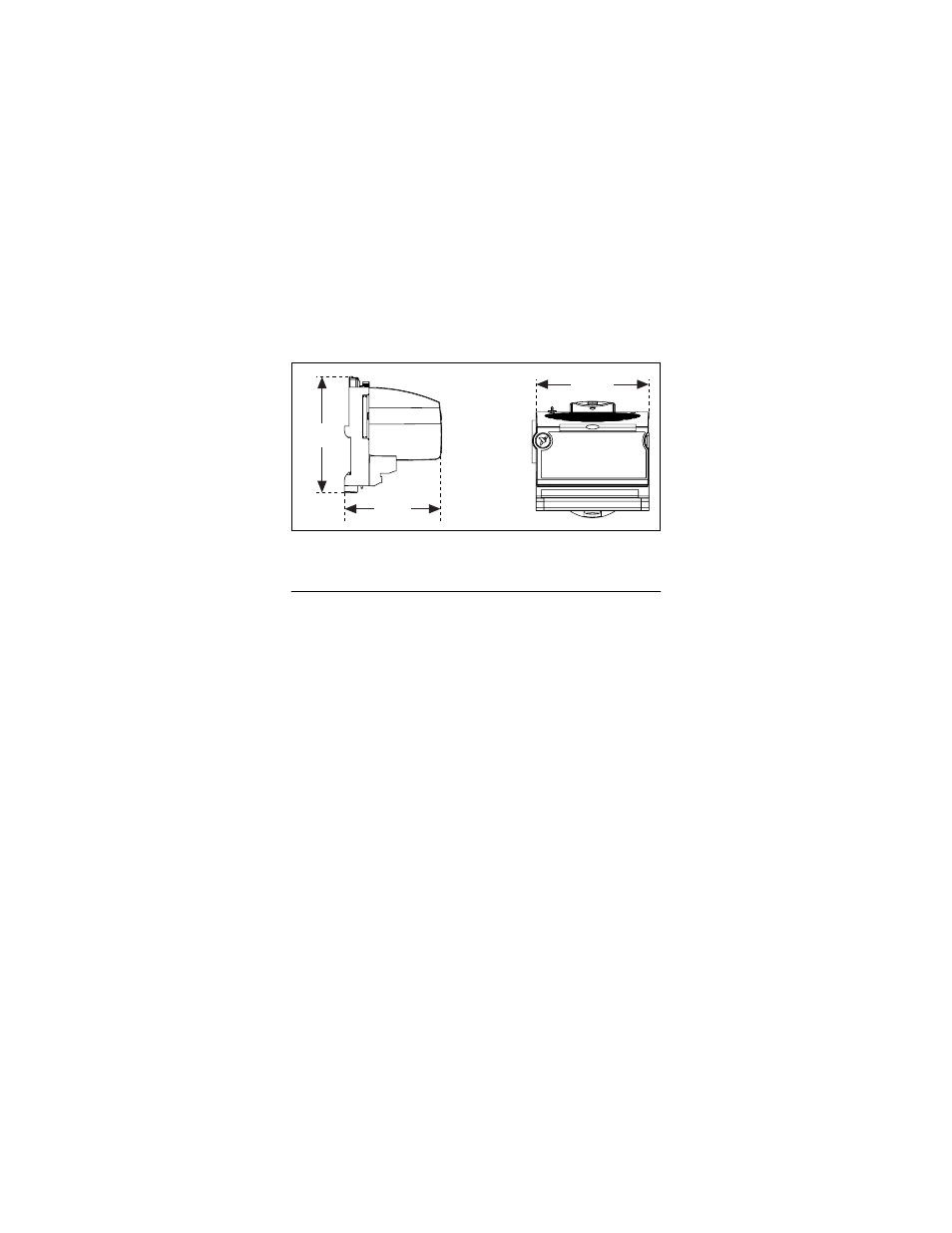

Figure 7. FP-RTD-124 Mechanical Dimensions
Where to Go for Support
For more information about setting up your FieldPoint modular I/O
system, refer to these National Instruments documents:
• FieldPoint network module user manual
• Other FieldPoint I/O module operating instructions
• FieldPoint terminal base operating instructions
If you no longer have the print versions of these documents, you
can find them online at
ni.com .
If you have searched the technical support resources on our Web
site and still cannot find the answers you need, contact your local
office or National Instruments corporate. For telephone support in
the United States, dial 512 795 8248. For telephone support
outside the United States, contact your local branch office:
Australia 03 9879 5166, Austria 0662 45 79 90 0,
Belgium 02 757 00 20, Brazil 55 11 3262 3599,
Canada (Calgary) 403 274 9391,
Canada (Montreal) 514 288 5722,
Canada (Ottawa) 613 233 5949, Canada (Québec) 514 694 8521,
Canada (Toronto) 905 785 0085, China 86 21 6555 7838,
Czech Republic 02 2423 5774, Denmark 45 76 26 00,
109.5
[4.31]
91.44
[3.60]
107.19
[4.22]
